225S Battery Energy Storage System , 720V 250A Lifepo4 Battery Bms
2
MOQ
negotiable
Price
225S Battery Energy Storage System , 720V 250A Lifepo4 Battery Bms
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: china
Brand Name: GCE
Certification: CE UL
Model Number: RBMS07S20-250A720V
High Light:

225S Battery Energy Storage System

,

720V Lifepo4 Battery Bms

,

250A Lifepo4 Battery Bms

Payment & Shipping Terms
Packaging Details: Corrugated Carton,770*560*240mm
Delivery Time: 8-15 days
Payment Terms: L/C, T/T
Supply Ability: 10000+pcs+1 month
Specifications
Material: Iron
Color: Black And Silver
Communication: CAN, RS485
Certification: CE/RoHS/UN38.3/MSDS
Warranty: 3 Years
Application: Solar, Wind, UPS, EV Car,Home Appliances,Boats,Energy Storage System
Product Description

225S 720V 250A high quality lifepo4 battery bms charging voltaga balance module bms for ups ev ess Electric Folklifts


    • 720V250Amp



    •
    •
Communication protocol:
Rs485, CAN, LAN

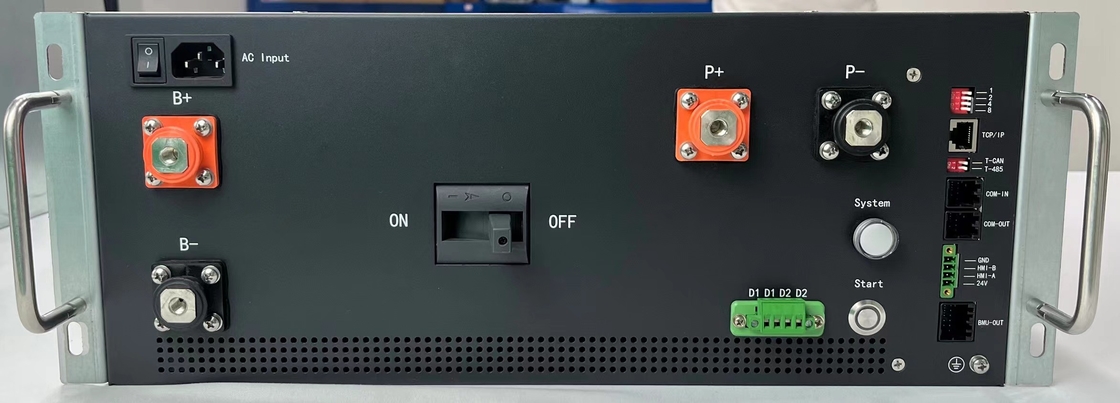

* 4U standard 19inch case * Efficient, stable and reliable * size:W440*H178*D500mm

225S Battery Energy Storage System , 720V 250A Lifepo4 Battery Bms 0225S Battery Energy Storage System , 720V 250A Lifepo4 Battery Bms 1225S Battery Energy Storage System , 720V 250A Lifepo4 Battery Bms 2225S Battery Energy Storage System , 720V 250A Lifepo4 Battery Bms 3



Specification
Product Name
BMS
Model no.
RBMS07S2-3-250A720V
protecting method
MCCB+Contactor
Rated Current range
-250A~250A
Voltage Range
384V-1000V
Current Sampling Accuracy
1.0%FSR
Communication interface with PCS
RS485/CAN
Communication interface with BMU
CAN
Communication interface with SBMS
RS485/CAN
Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
No(Optional plug in)
Insulation detection
Yes(Optional)
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
No
Maximum qty of BMUs
20
Power
24VDC(18~28V)
Power consumption
≤20W
Size(W*H*D)mm
4U (440*178*500)
Way out
Front
Tap center
Support(Optional)
Net weight
23kg



Product Feature
1. Advanced Battery Management System --- The highly integrated battery management
system enables seamless monitoring.
2. perfect self-test and operational status detection, with HMI display, system
operation information at a glance.
3. perfect and reliable system control and protection strategies to fully protect the
battery safety, extend the life of the battery escort.
4. Modular design, configurable, scalable --- flexible combination of multiple energy
storage unit can be expanded to a larger energy storage system, the maximum can support 272 (lead-carbon battery 400) battery
series.
5. Rich communication interface --- multiple RS485, CAN, Ethernet, dry contact input and
output interfaces, support for most of the market with PCS, monitoring server communication.
6. Flexible communication interface protocol --- The company comes with the company's
communication protocol, but also according to customer needs to adapt to PCS of different manufacturers.
7. Capacity is large --- Built-in large-capacity memory chips can store a large number
of key operational data, but also can install an SD card for offline access.
8. PCS has a protocol control function, the choice of circuit breaker version .
9. PCS without protocol control function, the choice of contactor + breaker version.
10. Automatic circulation control and automatic parallel machine off-line control, can be easily parallel battery. (Model suffix selection D).
