Product Details
Place of Origin: China
Brand Name: GCE
Certification: CE
Model Number: RBMS07S2-3-250A768V
Payment & Shipping Terms
Minimum Order Quantity: 2
Price: Please contact: ellen@hngce.com
Packaging Details: Blister & Carton
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C
Supply Ability: 5000sets / Month
Product Name: |
UPS BMS, High Voltage BMS, Smart BMS,LifePO4 BMS, Relay BMS |
Warranty: |
3 Years |
Battery Type: |
LFP / NMC / LTO |
Charge And Discharge Current: |
250Amp |
Communication: |
RS485, CANBUS, LAN, Dry Contact |
Strings: |
240S |
Touch Screen: |
3.5-inch / 7-inch |
Application: |
BESS, Solar Energy, UPS... |
Product Name: |
UPS BMS, High Voltage BMS, Smart BMS,LifePO4 BMS, Relay BMS |
Warranty: |
3 Years |
Battery Type: |
LFP / NMC / LTO |
Charge And Discharge Current: |
250Amp |
Communication: |
RS485, CANBUS, LAN, Dry Contact |
Strings: |
240S |
Touch Screen: |
3.5-inch / 7-inch |
Application: |
BESS, Solar Energy, UPS... |

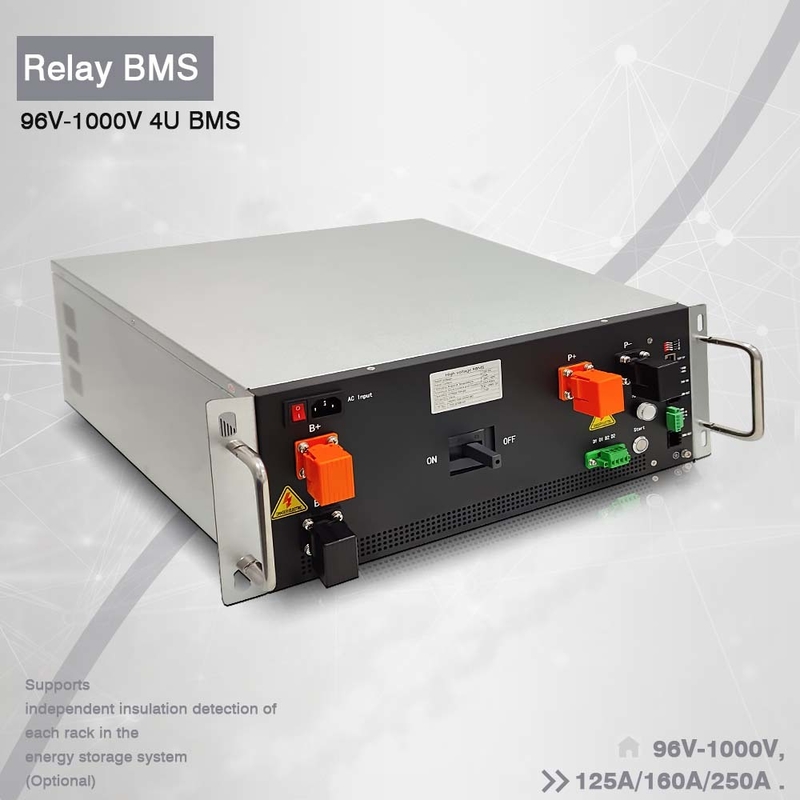

GCE 768V High Voltage BMS For Lithium Ion Lifepo4 Battery 240S 250A 400A 500A BMS For Solar Battery System Ups System
BMS Configuration
240S 768V 250A High Voltage BMS * 1set
24S BMU * 10sets
24S wire harness *10sets
(24S76.8V battery module,10 modules in series for 240S 768V 250A system)
GCE High Voltage Battery Management System Solution
GCE high voltage BMS is an intelligent overall solution. We can connect battery modules with different types of strings in series to higher voltage systems, GCE BMS will assign addresses to each connected battery module, and if a cell is damaged, we can easily Find and replace it. Multiple battery clusters can also be assigned addresses through DIP switches. We allow 8 battery clusters to be connected in parallel. Of course, you can also connect more battery clusters in parallel to meet your MWh energy storage needs. But our suggestion is that you can use every 8 battery clusters as a battery bank and have N battery banks in parallel. Our BMU can be divided into 8 series, 12-16 series, 17-24 series of three specifications of PCB. In this way, you can meet the average distribution of your various total strings of batteries.
Application
Battery Energy Storage System(BESS)
Off-grid energy storage
Data Center
Grid frequency modulation energy storage
Track power / traction
LFP UPS power supply
Specification
|
Product Name
|
High Voltage Bms, UPS BMS |
|
Model no.
|
RBMS07S2-3-250A768V
|
|
protecting method
|
MCCB+Contactor
|
|
Rated Current range
|
-250A~250A
|
|
Voltage Range
|
450V-1000V
|
|
Current Sampling Accuracy
|
1.0%FSR
|
|
Communication interface with PCS
|
RS485/CAN
|
|
Communication interface with BMU
|
CAN
|
|
Communication interface with SBMS
|
RS485/CAN |
|
Communication with monitoring software/EMS
|
Ethernet
|
|
Support IAP upgrade
|
Yes
|
|
Support HMI display and parameter
|
Yes(Optional)
|
|
Insulation detection
|
Yes(Optional)
|
|
High voltage power module
|
Support DC start (optional)
|
|
Dry contact output (normally open)
|
Up to 3
|
|
Maximum qty of BMUs
|
13
|
|
Power
|
24VDC(18~28V)
|
|
Power consumption
|
≤20W
|
|
Size(W*H*D)mm
|
4U (440*133*500)
|
|
Way out
|
Front
|
|
Tap center
|
Not support
|
|
Net weight
|
28kg
|
Products Display
