Communication protocol:
Rs485, CAN, LAN

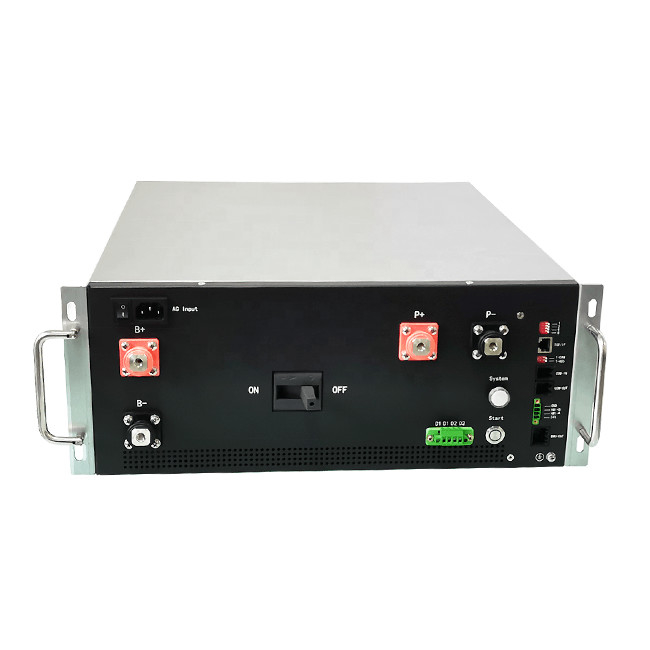

* 4U standard 19inch case * Efficient, stable and reliable * size:W482*H180*D500mm
Specification
|
Product Name
|
BMS
|
|
Model no.
|
RBMS07S2-3-160A768V
|
|
protecting method
|
MCCB+Contactor
|
|
Rated Current range
|
-250A~250A
|
|
Voltage Range
|
384V-1000V
|
|
Current Sampling Accuracy
|
1.0%FSR
|
|
Communication interface with PCS
|
RS485/CAN
|
|
Communication interface with BMU
|
CAN
|
|
Communication interface with SBMS
|
RS485/CAN
|
|
Communication with monitoring software/EMS
|
Ethernet
|
|
Support IAP upgrade
|
Yes
|
|
Support HMI display and parameter
|
No(Optional plug in)
|
|
Insulation detection
|
Yes(Optional)
|
|
High voltage power module
|
Support DC start (optional)
|
|
Dry contact output (normally open)
|
No
|
|
Maximum qty of BMUs
|
20
|
|
Power
|
24VDC(18~28V)
|
|
Power consumption
|
≤25W(Three wire systems); ≤15W(Two wire systems)
|
|
Size(W*H*D)mm
|
4U (482*180*500)
|
|
Way out
|
Front
|
|
Tap center
|
Support(Optional)
|
|
Net weight
|
23kg
|
Product Feature
1. Rich communication interface --- multiple RS485, CAN, Ethernet, dry contact input and
output interfaces, support for most of the market with PCS, monitoring server communication.
2. Flexible communication interface protocol --- The company comes with the company's
communication protocol, but also according to customer needs to adapt to PCS of different manufacturers.
3. Capacity is large --- Built-in large-capacity memory chips can store a large number
of key operational data, but also can install an SD card for offline access.
4. PCS has a protocol control function, the choice of circuit breaker version .
5. PCS without protocol control function, the choice of contactor + breaker version.
6. Automatic circulation control and automatic parallel machine off-line control, can be easily parallel battery. (Model suffix selection D).
