Name: Lifepo4 High Voltage Bms With Relay Contactor 45S 144V 50A 2U
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S23-50A144V
Price: 100000000.00 USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: GCE

Certification: CE UL

Model Number: RBMS07S23-50A144V

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: negotiable

Packaging Details: Corrugated Carton,510*310*210mm

Delivery Time: 8-15 days

Payment Terms: L/C, T/T

Supply Ability: 10000+pcs+1 month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Lifepo4 high voltage bms, bms with relay 45S, bms with relay 144V


Material:	Iron	Color:	Black
Communication:	CAN, RS485	Certification:	CE/RoHS/UN38.3/MSDS
OEM/ODM:	Acceptable	Warranty:	3 Years

Material:	Iron
Color:	Black
Communication:	CAN, RS485
Certification:	CE/RoHS/UN38.3/MSDS
OEM/ODM:	Acceptable
Warranty:	3 Years

Lifepo4 High Voltage Bms With Relay Contactor 45S 144V 50A 2U

45S 144V 50A 2U smart BMS for high voltage bms with relay contactor lifepo4 bms slave master for battery energy storage

- 144V50Amp

Communication protocol:
Rs485, CAN, LAN, Dry contact
* 2U standard 19inch case * Efficient, stable and reliable * size:W440*H88*D500mm

Specification

			Product Name

			BMS

			Model no.

			RBMS07S2-3-50A144V

			protecting method

			MCCB+Contactor

			Rated Current range

			-50A~50A

			Voltage Range

			48V-144V

			Current Sampling Accuracy

			1.0%FSR

			Communication interface with PCS

			RS485/CAN

			Communication interface with BMU

			CAN

			Communication interface with RBMS

			RS485/CAN

			Communication with monitoring software/EMS

			Ethernet

			Support IAP upgrade

			Yes

			Support HMI display and parameter

			Yes(Optional)

			Insulation detection

			No

			High voltage power module

			Support DC start (optional)

			Dry contact output (normally open)

			Up to 3

			Maximum qty of BMUs

			5

			Power

			24VDC(18~28V)

			Power consumption

			≤20W

			Size(W*H*D)mm

			2U (440*88*500)

			Way out

			Front

			Mid-line

			Not support

			Tap center

			Not support

			Net weight

			14kg

Certification

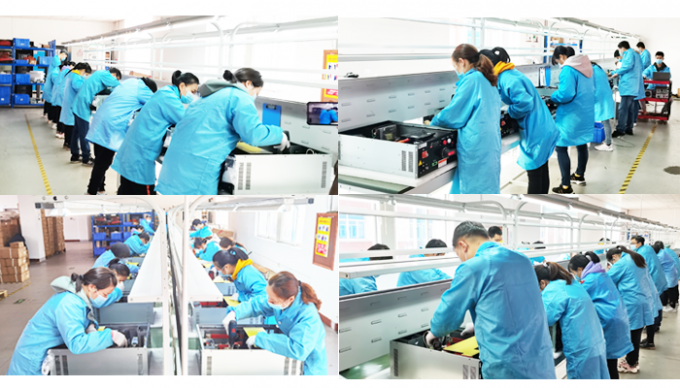

Production Line
