224S 716.8V Battery Management System 160A Smart BMS Lifepo4

Product Details

Place of Origin: CHINA

Brand Name: GCE

Certification: CE UL TUV

Model Number: RBMS07-D20-160A716.8V

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: pls contact bruceliu@hngce.com

Packaging Details: Bubble bag, foam, carton

Delivery Time: 20 working days

Payment Terms: T/T, L/C

Supply Ability: 1000sets/month

Get Best Price
Highlight:

716.8V Battery Management System

,

224S Battery Management System

,

160A Smart BMS Lifepo4

Application:
UPS BESS Solar Off Grid ESS Container ESS
Warranty:
3years
Voltage:
716.8V
Current:
160A
Pack String No.:
224S
Cell Type Applicable:
Lifepo4 MNC LTO
Dimension:
440mm*178mm*500mm
Structure:
Slave Master Stack 3-level Structure
Dry Contact:
Optional, Max 2 Roads Of Output Channel
Weight:
28KGS
Application:
UPS BESS Solar Off Grid ESS Container ESS
Warranty:
3years
Voltage:
716.8V
Current:
160A
Pack String No.:
224S
Cell Type Applicable:
Lifepo4 MNC LTO
Dimension:
440mm*178mm*500mm
Structure:
Slave Master Stack 3-level Structure
Dry Contact:
Optional, Max 2 Roads Of Output Channel
Weight:
28KGS
224S 716.8V Battery Management System 160A Smart BMS Lifepo4

224S 716.8V 160A High Voltage Smart BMS Lifepo4 BMS 16S BMU in series battery management system energy storage UPS





716.8V160A HV BMS Configuration:



HV 224S716.8V 160A BMS solutions includes:

1set Master BMS, Model#: RBMS07-D20-160A716.8V

14sets 16S Slave BMU Model#: BMU08-16S8T12F

14sets 16S Wire Harness

Wire harness includes:

Voltage&Temperature acquisition wire,

BMU External Communication Wire with Shenji Port,

The power wire for the Fan.



GCE HV Master BMS and Accessories:

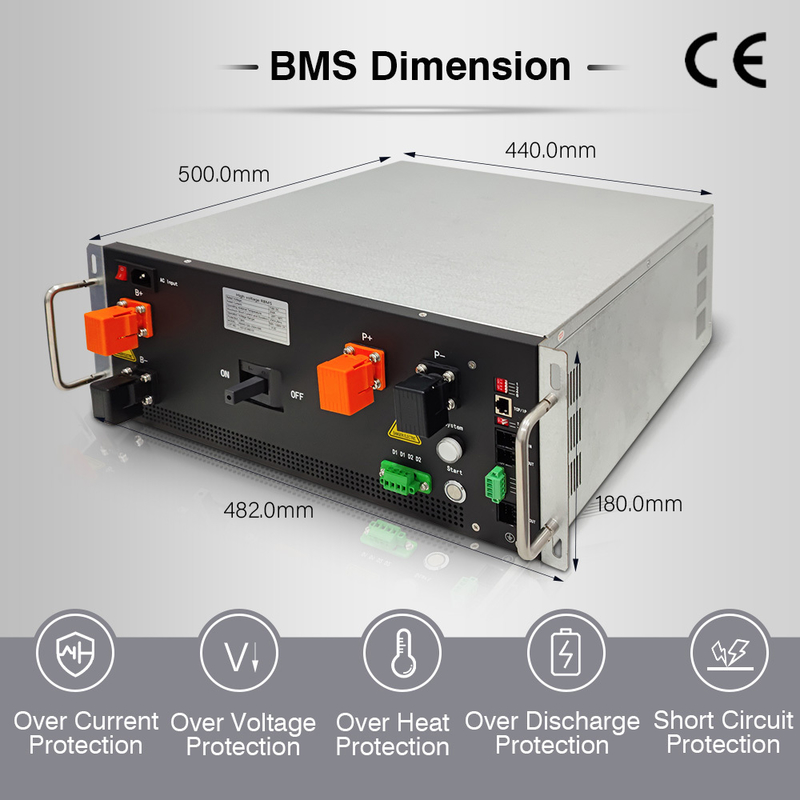

224S 716.8V Battery Management System 160A Smart BMS Lifepo4 0



224S 716.8V Battery Management System 160A Smart BMS Lifepo4 1 224S 716.8V Battery Management System 160A Smart BMS Lifepo4 2
224S 716.8V Battery Management System 160A Smart BMS Lifepo4 3 224S 716.8V Battery Management System 160A Smart BMS Lifepo4 4
224S 716.8V Battery Management System 160A Smart BMS Lifepo4 5 224S 716.8V Battery Management System 160A Smart BMS Lifepo4 6 224S 716.8V Battery Management System 160A Smart BMS Lifepo4 7

12S-24S BMU(Slave)

12S-24S BMU has 8pcs of temperature sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power supply, consumption less 20mA, CAN2.0 B communication



Wire harness-

Signal acquisition wire

18 P+20P wire, standard length 600mm,900mm,1200mm temperature sensor wire: standard length: 600mm,900mm,1200mm
Fan Power wire: 600mm


Wire harness-

communication wire

Communication wire is connecting from the master BMS to each BMU with a cascade connection, the last port is for terminal resistance









HV BMS Product Characteristics:



※ Advanced battery management system---The highly integrated battery management system can realize seamless monitoring.



※ Perfect self-checking and running status checking function, with HMI display screen, system running information is clear at a glance.



※ Complete and reliable system control and protection strategies, comprehensively guarantee battery safety and escort to extend the life of battery packs.



※ Modular design, configurable and expandable---multiple energy storage units can be flexibly combined and expanded into a larger energy storage system.



HV BMS Technical Parameters:



RBMS(master BMS) 4U-125A/160A/250A
protecting method MCCB+Contactor
Rated Current range -250A~250A
Voltage range 384V-1000V
Current sampling accuracy 1.0%FSR
Communication interface with PCS RS485/CAN
Communication interface with BMU CAN
Communication interface with GBMS RS485/CAN
Communication with monitoring software/EMS Ethernet
Support IAP upgrade Yes
Support HMI display and parameter settings No(OptionalPlug in)
Insulation detection Yes(Optional)
High voltage power module Support DC start (optional)
Dry contact output (normally open) None
Maximum qty of BMUs 18
Power 24VDC(18~28V)
Power consumption ≤25W
Size (W*H*D)mm 4U(440*178*500)
Connection Way out Back and front
Tap center support(optional)
net weight 23kg



GCE HV 3-Level BMS Diagram Structure:



224S 716.8V Battery Management System 160A Smart BMS Lifepo4 8



HV BMS Applications:



224S 716.8V Battery Management System 160A Smart BMS Lifepo4 9 224S 716.8V Battery Management System 160A Smart BMS Lifepo4 10
224S 716.8V Battery Management System 160A Smart BMS Lifepo4 11 224S 716.8V Battery Management System 160A Smart BMS Lifepo4 12





FAQs about GCE HV BMS:

  • Q: Are you a manufacturer or simply a trading company?
    A: We are a manufacturer, and we sincerely welcome you to visit our factory.
  • Q: Can I get some samples?
    A: Yes, sample order is available for quality checking and market testing.
  • Q: What kind of cells are applicable to this Battery Management System?
    A: LFP, NMC, LTO
  • Q. How about the delivery time?
    A: The lead-time usually takes about 15 to 20 working days accordingly to the specification of your order and quantity.
  • Q. What are your terms of payment?
    A: Advanced T/T is the main payment term, and other payment terms are negotiable. Please contact us, we’ll discuss the details.
  • Q: What are your warranty terms?
    A: We offer a 3-year warranty.
  • Q. Can you produce BMS with customization requirements?
    A: Yes, based on the order quantity, we can make some small adjustments.
  • Q: How does your factory do regarding quality control?
    A: Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.
  • Q: What Trade Terms are available?
    A: No limitation on the trade terms. We normally do EXW for orders smaller than 5000USD, and FOB for the rest. Moreover, we can send BMSs via DHL&UPS&FEDEX quickly and easily.
  • Q: Is your BMS easy and convenient to install&test?
    A: This is our the 4th generation high voltage bms.It's an overall bms solution, that is to say, you don't need professional technology to install our high-voltage BMS to form a complete battery system.
  • Q: What benefits do customers get?
    A: Our high voltage BMS has complete battery charge and discharge control logic and balance function between batteries. We can also set various parameters of the system according to the actual needs of customers to ensure the stability, reliability and efficient performance of the system.
