GCE 168S 621.6V 100A Battery Monitoring System NMC Bms With External Display For Solar Battery Energy Storage And Ups
GCE 168S 621.6V 100A Battery Monitoring System NMC Bms With External Display For Solar Battery Energy Storage And Ups
GCE 168S 621.6V 100A Battery Monitoring System NMC Bms With External Display For Solar Battery Energy Storage And Ups
GCE 168S 621.6V 100A Battery Monitoring System NMC Bms With External Display For Solar Battery Energy Storage And Ups
GCE 168S 621.6V 100A Battery Monitoring System NMC Bms With External Display For Solar Battery Energy Storage And Ups

GCE 168S 621.6V 100A Battery Monitoring System NMC Bms With External Display For Solar Battery Energy Storage And Ups

Product Details

Place of Origin: CHINA

Brand Name: GCE

Certification: CE UL TUV

Model Number: RBMS-S27H-125A-750

Payment & Shipping Terms

Minimum Order Quantity: 2 sets

Price: negociate with cara@hngce.com

Packaging Details: Bubble bag, foam, carton

Delivery Time: 20~25days

Payment Terms: T/T, L/C

Supply Ability: 1000sets/month

Get Best Price

Product Details

Product Description
Highlight:

external display battery Monitoring System

,

100A battery Monitoring System

,

621.6V battery Monitoring System

Voltage:
621.6V
Warranty Years:
3 Years For RBMS And 1 Year For BMU/PCBs
Current:
125A
Application:
Industrial, Residential, UPS And Solar Energy Storage Solutions.
MOQ:
2 Sets
Payment Terms:
T/T, L/C
Suitable:
LFP, NMC, LTO
BMU Range:
8S~48s
Insulation Withstand Voltage:
2800VDC ＜1mA 1min
Communication Interface:
RS485/CAN/Modbus
Display:
4'' Or 7'' External Display
Efficiency:
>90%
Frequency:
50/60Hz
Humidity:
20%-90%
Noise:
<50dB
Operating Temperature:
-10℃~+40℃
Output Voltage:
220V
Product Name:
Battery Management System
Protection Level:
IP20
Storage Temperature:
-20℃~+70℃
ODM&OEM:
Acceptable
Voltage:
621.6V
Warranty Years:
3 Years For RBMS And 1 Year For BMU/PCBs
Current:
125A
Application:
Industrial, Residential, UPS And Solar Energy Storage Solutions.
MOQ:
2 Sets
Payment Terms:
T/T, L/C
Suitable:
LFP, NMC, LTO
BMU Range:
8S~48s
Insulation Withstand Voltage:
2800VDC ＜1mA 1min
Communication Interface:
RS485/CAN/Modbus
Display:
4'' Or 7'' External Display
Efficiency:
>90%
Frequency:
50/60Hz
Humidity:
20%-90%
Noise:
<50dB
Operating Temperature:
-10℃~+40℃
Output Voltage:
220V
Product Name:
Battery Management System
Protection Level:
IP20
Storage Temperature:
-20℃~+70℃
ODM&OEM:
Acceptable
GCE 168S 621.6V 100A Battery Monitoring System NMC Bms With External Display For Solar Battery Energy Storage And Ups

GCE 168S 621.6V 100A Battery Monitoring System NMC bms with external display for solar battery energy storage and ups

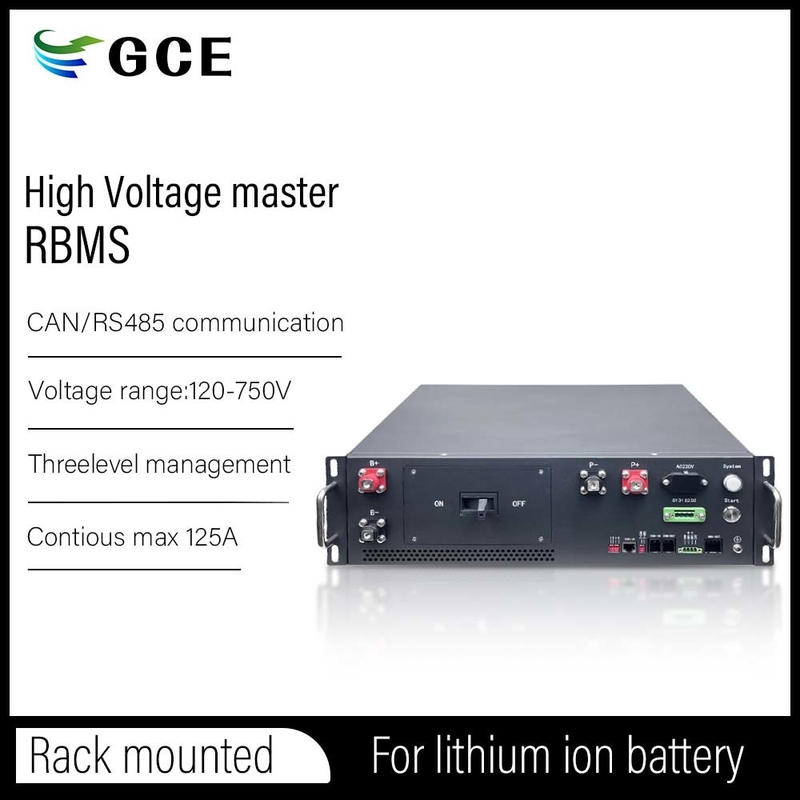

High Voltage Master BMS:



  • Maintenance free. Modular design for easy installation and capacity expansion.
  • Smart BMS with multiple protection and communication functions.
  • Wide working temperature range and high reliability.
  • Multiple battery units can be connected in parallel, suitable for high-energy storage applications.
  • Compatible with various charge controllers and inverters.
  • 621.6V100A master RBMS with 24S slave BMU and 24S Wire harness

GCE 168S 621.6V 100A Battery Monitoring System NMC Bms With External Display For Solar Battery Energy Storage And Ups 0

GCE 168S 621.6V 100A Battery Monitoring System NMC Bms With External Display For Solar Battery Energy Storage And Ups 1GCE 168S 621.6V 100A Battery Monitoring System NMC Bms With External Display For Solar Battery Energy Storage And Ups 2







Sample Drawings Of Standard Products:



GCE 168S 621.6V 100A Battery Monitoring System NMC Bms With External Display For Solar Battery Energy Storage And Ups 3





Specification:



SPECIFICATION
Basic Parameters
Max current
125A
Rated voltage
350V / 750V(Optional)
Power consumption
≤15W
Current sampling accuracy
1%FSR
Insulation withstand voltage
2800VDC ＜1mA 1min
Protection level
IP20
Dimension(W*H*D)
482 * 132 * 500(mm)
Net weight
16Kg
Communication Port
Communication port with BMU
CAN
Communication port with UPS
RS485/CAN
Communication port with SBMS
RS485/CAN
Communicate with PC software
Ethernet
Basic Functions
Battery charge & discharge management
Support
Battery temperature management
Support
IAP upgrade
Support
System protection parameter setting
Support
Short circuit protection
Support(750V 20KA 20ms)
Precharge function
Support
Parallel loop current control
Support
Event record
Support 5000 records
Middle line system
/
Dual power supply
Support
Optional Functions
Monitor insulation
≥300V (Optional)
HMI display
4.3”or 7”display(Optional)
Parallel
Support up to 15 RBMS in parallel
Dry contact
Max 2 dry contact outputs
Others
Color
RAL9005 Black sand grain
Installation
Suitable for standard 19-inch cabinet
Inlet and outlet line method
Front side in and front side out.
Operating ambient temperature
-20℃~60℃
Operating ambient humidity
5%~75%RH
Compliance with national standards
GB/T 16935.1 GB/T 17626.2 GB/T 17626.5
Safety compliance certification
Comply with CE certification standards



Accessories: 24S BMU +24S Wire harness

GCE 168S 621.6V 100A Battery Monitoring System NMC Bms With External Display For Solar Battery Energy Storage And Ups 4



GCE 168S 621.6V 100A Battery Monitoring System NMC Bms With External Display For Solar Battery Energy Storage And Ups 5





Communication:



Communication Interface

Communication port with BMU: CAN

Communication port with UPS: RS485/CAN

Communication port with SBMS: RS485/CAN

Communication with monitoring software: Ethernet

Current sampling accuracy: 1%FSR







BMS SYSTEM STRUCTURE:



GCE 168S 621.6V 100A Battery Monitoring System NMC Bms With External Display For Solar Battery Energy Storage And Ups 6



Applications:



GCE 168S 621.6V 100A Battery Monitoring System NMC Bms With External Display For Solar Battery Energy Storage And Ups 7



Buyer reviews:

GCE 168S 621.6V 100A Battery Monitoring System NMC Bms With External Display For Solar Battery Energy Storage And Ups 8GCE 168S 621.6V 100A Battery Monitoring System NMC Bms With External Display For Solar Battery Energy Storage And Ups 9GCE 168S 621.6V 100A Battery Monitoring System NMC Bms With External Display For Solar Battery Energy Storage And Ups 10
