GCE192S HV BMS 614.4V 125A Master Slave BMS For Solar Energy Storage System 1MWh 2MWh ESS BMS

Product Details

Place of Origin: China

Brand Name: GCE

Certification: CE/ROHS/MSDS

Model Number: RBMS07-S20-125A614.4V

Payment & Shipping Terms

Minimum Order Quantity: 2 Set

Price: Negotiable with ellen@hngce.com, +86 18874774722(whatsapp)

Packaging Details: Corrugated Carton, bundles, pallets, wooden box

Delivery Time: 15-20 days

Payment Terms: FOB/CFR/EXW

Supply Ability: 5000pcs / month

Get Best Price
Highlight:

614.4V Master Slave BMS

,

125A Master Slave BMS

,

ESS BMS Master Slave BMS

Parallel Connection:
Support Up To 15 BMS Connected In Parallel
Voltage:
614.4V (120V-750V)
Color:
Black
System Protection Parameter Setting:
Support
Compatible Inverter:
Deye, Growatt, Goodwe, Sofar, Atess, Sungrow, Bluesun...
Insulation Withstand Voltage:
2800VDC <1mA 1min
Operating Ambient Temperature:
-20℃~60℃
Current:
125A
Parallel Connection:
Support Up To 15 BMS Connected In Parallel
Voltage:
614.4V (120V-750V)
Color:
Black
System Protection Parameter Setting:
Support
Compatible Inverter:
Deye, Growatt, Goodwe, Sofar, Atess, Sungrow, Bluesun...
Insulation Withstand Voltage:
2800VDC <1mA 1min
Operating Ambient Temperature:
-20℃~60℃
Current:
125A
GCE192S HV BMS 614.4V 125A Master Slave BMS For Solar Energy Storage System 1MWh 2MWh ESS BMS

GCE192S HV BMS 614.4V 125A Master Slave BMS for Solar Energy Storage System 1MWh 2MWh ESS BMS

GCE HV BMS(Battery Management System):

GCE, a leading battery management system (BMS) manufacturer, has over 10 years of extensive experience in high-voltage BMS research, development, and manufacturing in China. Their BMS solutions can handle voltages up to 1500V, making them ideal for lithium-ion battery chemistries such as LFP, NMC, and LTO, which are commonly used in a variety of applications including uninterruptible power supplies (UPS), residential, commercial, and industrial energy storage systems.

GCE's BMS products support multiple parallel connections and can be configured in either a two-level or three-level architecture, allowing them to be seamlessly integrated into a wide range of energy storage systems - from kilowatt-hour to megawatt-hour scale. Furthermore, the GCE BMS is compatible with well-known inverter brands in the market, such as Deye, Kehua, Sofar, Growatt, Sinexcel, ATESS, Sungrow, Goodwe, Megarevo, and Voltronic Power, ensuring a high degree of system-level compatibility and flexibility.

With its proven track record, technical expertise, and broad compatibility, GCE has firmly established itself as a trusted provider of high-performance BMS solutions for the rapidly growing energy storage industry in China and beyond.



Technical Parameters:

SPECIFICATION
Basic Parameters
Max current
125A
Rated voltage
350V / 750V(Optional)
Power consumption
≤15W
Current sampling accuracy
1%FSR
Insulation withstand voltage
2800VDC <1mA 1min
Protection level
IP20
Dimension(W*H*D)
482 * 132 * 500(mm)
Net weight
16Kg
Communication Port
Communication port with BMU
CAN
Communication port with UPS
RS485/CAN
Communication port with SBMS
RS485/CAN
Communicate with PC software
Ethernet
Basic Functions
Battery charge & discharge management
Support
Battery temperature management
Support
IAP upgrade
Support
System protection parameter setting
Support
Short circuit protection
Support(6KA 20ms)
Precharge function
Support
Parallel loop current control
Support
Event record
Support 5000 records
Middle line system
/
Dual power supply
Support
Optional Functions
Monitor insulation
≥300V (Optional)
HMI display
4.3-inch(Optinal)
Parallel
Support up to 15 RBMS in parallel
Dry contact
2 dry contact outputs (optional)
Others
Color
Black
Installation
Suitable for standard 19-inch cabinet
Inlet and outlet line method
Front side in and front side out.
Operating ambient temperature
-20℃~60℃
Operating ambient humidity
5%~75%RH
Compliance with national standards
GB/T 16935.1 GB/T 17626.2 GB/T 17626.5
Safety compliance certification
CE

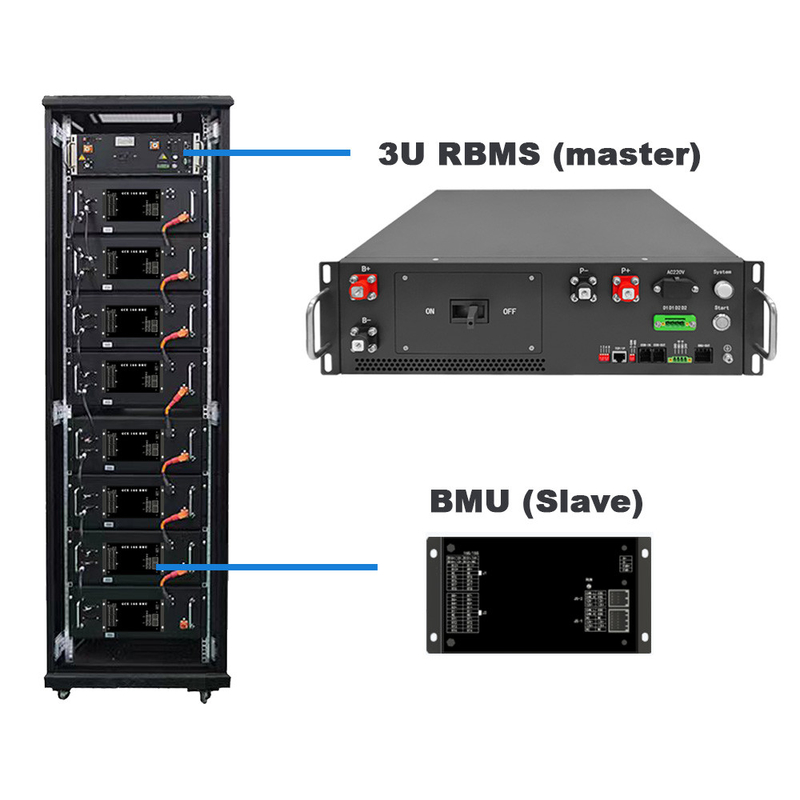

GCE192S HV BMS 614.4V 125A Master Slave BMS For Solar Energy Storage System 1MWh 2MWh ESS BMS 0

GCE192S HV BMS 614.4V 125A Master Slave BMS For Solar Energy Storage System 1MWh 2MWh ESS BMS 1

GCE192S HV BMS 614.4V 125A Master Slave BMS For Solar Energy Storage System 1MWh 2MWh ESS BMS 2GCE192S HV BMS 614.4V 125A Master Slave BMS For Solar Energy Storage System 1MWh 2MWh ESS BMS 3

GCE192S HV BMS 614.4V 125A Master Slave BMS For Solar Energy Storage System 1MWh 2MWh ESS BMS 4

Applications:

High Voltage Battery Management Systems (BMS) play a crucial role in a wide range of energy storage applications. In residential, commercial, and grid-scale energy storage systems, high-voltage BMS optimize the management and utilization of renewable energy sources like solar and wind power. By precisely monitoring, balancing, and protecting the battery packs, these BMS ensure the reliable and efficient operation of these energy storage systems, maximizing their performance, safety, and longevity.

Beyond the building sector, high-voltage BMS also find essential applications in industrial settings, managing the battery packs of Automated Guided Vehicles (AGVs) and Uninterruptible Power Supplies (UPS) to ensure the reliable, around-the-clock operation of these mission-critical systems. Through their advanced functions, these BMS solutions help industrial operators maximize the uptime, efficiency, and service life of their battery-powered equipment.

Across diverse applications, high-voltage BMS have emerged as the lynchpin in unlocking the full potential of battery-based energy storage systems, driving the transition towards a more sustainable and resilient energy future.

GCE192S HV BMS 614.4V 125A Master Slave BMS For Solar Energy Storage System 1MWh 2MWh ESS BMS 5

  GCE192S HV BMS 614.4V 125A Master Slave BMS For Solar Energy Storage System 1MWh 2MWh ESS BMS 6


Hunan GCE Technology Co., Ltd.(GCE) is a high-tech company specializing in the R&D and production of BMS energy storage systems and batteries for over 10 years. Our products are mainly used for industrial and commercial energy storage and home energy storage.
BMS 30-75S uses an integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Significantly reduce user usage costs.
The 60s-405S adopts a three-tier architecture that can meet the series and parallel requirements of single high-capacity lithium batteries within 1500V.
7.68KWh-40.96KWh Stackable Home Energy Storage System supports 3-8 HV battery modules connected in Sereis, with Small volume, light weight, plug-in built-in modules, built-in Smart BMS, easy to install and maintain.
GCE192S HV BMS 614.4V 125A Master Slave BMS For Solar Energy Storage System 1MWh 2MWh ESS BMS 7Packing and Shipping:

Shipping Methods
Arrive AT
Delivery From
By Sea
Sea port you want
Any port in China
By Air
Airport you want
Any port of China
By Railway
Your door
Any railway station
By Express
Your door
Changsha City
Packing list: 3U BMS, voltage & temperature acquisition wire, fan wire and communication cable.
