Relay Integrated BMS 96V 100A 30S BMS with RS485 CAN Communication

Product Details

Place of Origin: China

Brand Name: GCE

Certification: CE

Model Number: RBMS07S30S100A

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: Negotiable

Packaging Details: Blister & Carton

Delivery Time: 10-15 work days

Payment Terms: T/T, L/C

Supply Ability: 5000sets / Month

Get Best Price
Highlight:

Integrated BMS 96V

Product Name:
30S BMS, Integrated BMS, 96V BMS
Voltage:
96V
Charge And Discharge Current:
50A 100A
Strings:
30S
Communication:
Rs485 / CAN
Style:
Slave And Master All In One Device
Application:
ESS, Solar, UPS, Date Center, Home Energy Storage
Battery Type:
LTO LFP NMC
Product Name:
30S BMS, Integrated BMS, 96V BMS
Voltage:
96V
Charge And Discharge Current:
50A 100A
Strings:
30S
Communication:
Rs485 / CAN
Style:
Slave And Master All In One Device
Application:
ESS, Solar, UPS, Date Center, Home Energy Storage
Battery Type:
LTO LFP NMC
Relay Integrated BMS 96V 100A 30S BMS with RS485 CAN Communication

30S BMS


30S 96V 100A BMS Master Slave all In one Relay BMS with RS485 CAN Communication for Off Grid Home Solar Power solution


Product Features


 3 temperature sensor per 15 strings, 12 total for 60 strings; 15 total for 75 strings.
SOC estimation error ≤ 5%.
※  3 relay dry contact output.
PC software will be provided for customers to debug BMS and modify system parameters.
Support 7 BMS in parallel.

HMI display: Optional (3.5-inch screen)

Each 15 strings is a battery collection unit, and 75 series batteries have 5 acquisition units.

※ BMS integrated machine components are composed of BMS main control board, BMU sampling board, high voltage board, switching power supply, Hall sensor, DC contactor, micro switch, power terminal, structural box and wiring harness, etc.; the characteristic is that the main
control board Integrate with sampling board and other power devices to keep the system as a secondary architecture.

It has the characteristics of compact structure, flexible installation and low cost, and is suitable for integrated installation with small capacity batteries.

※ The BMS integrated machine component is mainly suitable for the charge and discharge management of lithium iron phosphate batteries (LFP). If you need to modify the parameters with other batteries, please contact our company for confirmation.


Specification


Product Name
Master Slave BMS (Integrated BMS)
Model no.
RBMS07S60S100A
System voltage range
96-240 V DC
Startup mode
DC start (optional AC and DC starter)
Number of battery strings
60S(4 x 15S)
Balance
Equilibrium type
Passive resistance equalization

Balanced current
100mA ± 10mA(Single cell 3.4V )
Temperature Sampling
Numbers
12 Battery temperature(4*3)

Sampling accuracy
± 2℃
Voltage Sampling
Sampling accuracy
Single cell ±20mV
SOC
≤5%
Communication mode
CAN: 1 channel (communication with PCs / UPS)
RS485: 1 channel (communication with upper computer / PCS / UPS)
Bluetooth: optional (android app available)
GPRS: optional,
Display mode
6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication
HMI display: optional
Hall sensor specifications
50A/100A
Maximum load of power components
Steady-state:100A
transient state:150A/10S( Adjustable)
Alarm level
1 Level
Protection level
2 two levels
Level 1 cut off charge / discharge
Level 2 micro cut-off switch, system power down
Operating Temperature
Charging : -10~75℃
Discharging : -20 to 75℃
Storage : -40 to +75℃

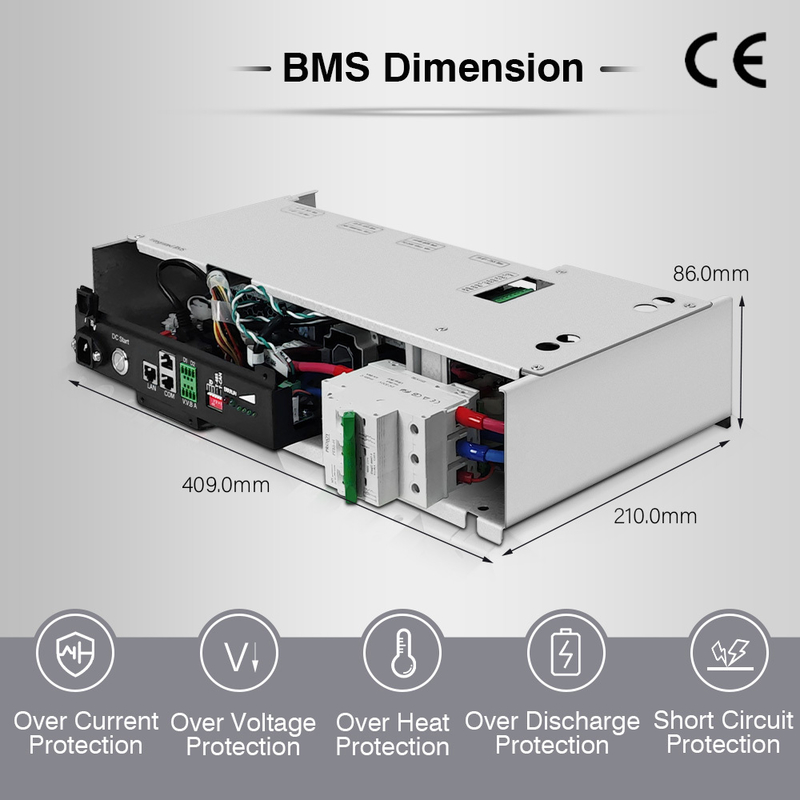

Products Display


Relay Integrated BMS 96V 100A 30S BMS with RS485 CAN Communication 0
Relay Integrated BMS 96V 100A 30S BMS with RS485 CAN Communication 1
Relay Integrated BMS 96V 100A 30S BMS with RS485 CAN Communication 2
Relay Integrated BMS 96V 100A 30S BMS with RS485 CAN Communication 3

Relay Integrated BMS 96V 100A 30S BMS with RS485 CAN Communication 4
