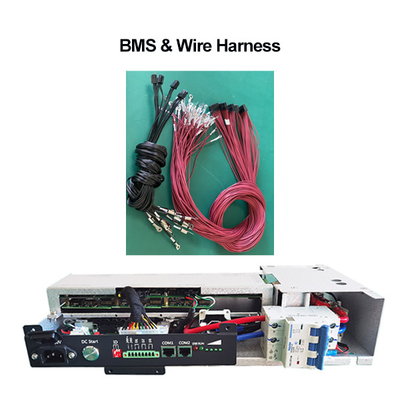

Ess Integrated Bms 32S 40S 45S 60S 64S 75S 100A 50A Ups BMS Lithium Battery Management Manufacturer
Specification
|
Product Name
|
30S-75S Integrated BMS
|
|
|
Model number
|
RBMS07S75S50A
|
|
|
System voltage range
|
96V-240 V DC
|
|
|
Startup mode
|
AC start or DC starte
|
|
|
Battery strings
|
75S(5 x 15 S)
|
|
|
Balance
|
Equilibrium type
|
Passive resistance equalization
|
|
|
Balanced current
|
100mA ± 10mA(Single cell 3.4V )
|
|
Temperature Sampling
|
Numbers
|
12 Battery temperature(4*3)
|
|
|
Sampling accuracy
|
± 2℃
|
|
Voltage Sampling
|
Sampling accuracy
|
Single cell ±20mV
|
|
SOC
|
≤5%
|
|
|
Communication mode
|
CAN: 1 channel (communication with PCs / UPS)
RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional, |
|
|
Display mode
|
6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication
HMI display: 3.5-inch (optional) |
|
|
Hall sensor specifications
|
50A / 100A
|
|
|
Maximum load of power components
|
Steady-state:100A
transient state:150A/10S( Adjustable) |
|
|
Alarm level
|
1 Level
|
|
|
Protection level
|
2 two levels
Level 1 cut off charge / discharge Level 2 micro cut-off switch, system power down |
|
|
Operating Temperature
|
Charging : －10～75℃
Discharging : -20 to 75℃ Storage : -40 to +75℃ |
|
Specification
Product Features
1. Voltage from 96V-240V.
2. Current: 50A / 100A
3. Unique design, Master and slave in one device. Cost-Effective.
4. Suitable for ESS, UPS, Home energy storage system, Solar battery System and other application.
5. With RS485 & CAN protocol.
4S to 4S Mosfets BMS has a wide range of uses, rich product interfaces and strong expansibility.
30s to 75s BMS adopts master-slave integrated design and relay solution, which greatly reduces the user's cost of use. Suitable for small capacity energy storage applications.
The 60s-270s adopts a master-slave three-level architecture, which is suitable for energy storage system requirements within 1000V.
