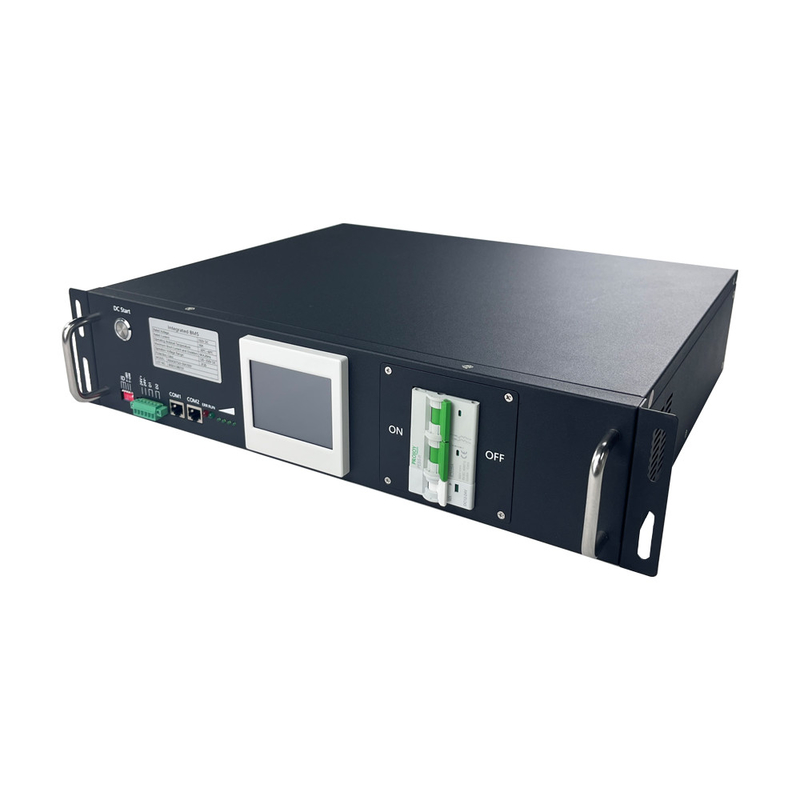

72S BMS 230.4V 100A Master Slave BMS Lithium Battery Management System For Lifepo4 Battery Pack
72S BMS 230.4V 100A Master Slave BMS Lithium Battery Management System For Lifepo4 Battery Pack
72S BMS 230.4V 100A Master Slave BMS Lithium Battery Management System For Lifepo4 Battery Pack
72S BMS 230.4V 100A Master Slave BMS Lithium Battery Management System For Lifepo4 Battery Pack
72S BMS 230.4V 100A Master Slave BMS Lithium Battery Management System For Lifepo4 Battery Pack

72S BMS 230.4V 100A Master Slave BMS Lithium Battery Management System For Lifepo4 Battery Pack

Product Details

Place of Origin: china

Brand Name: GCE

Certification: CE UL

Model Number: RBMS08-S72S-100A

Payment & Shipping Terms

Minimum Order Quantity: 2 pcs

Price: negiociate with cara@hngce.com

Packaging Details: Corrugated Carton, bundles, pallets, wooden box

Delivery Time: 7-21 working days

Payment Terms: L/C, T/T

Supply Ability: 1000+pcs+per month

Get Best Price

Product Details

Product Description
Highlight:

100A Master Slave BMS

,

Lifepo4 Master Slave BMS

72S BMS 230.4V 100A Master Slave BMS Lithium Battery Management System For Lifepo4 Battery Pack

72S BMS 230.4V 100A Master Slave BMS lithium battery management system for lifepo4 battery pack



This integrated BMS is our best-selling product, and it's highly regarded for its excellent cost-performance ratio, making it the ultimate choice for small-capacity battery systems. It offers easy installation and user-friendly operation.

72S BMS 230.4V 100A Master Slave BMS Lithium Battery Management System For Lifepo4 Battery Pack 0




  •





    •



      •
      •




      •




      •
    • 72S 100Amp



      •
    •
Communication protocol:
CAN, RS485, Dry Contact

* Design: Master & Slave all in one
* Efficient, stable and reliable * size:W480*H370*D100cm

Unique Design

It is the latest product developed by GCE and it's unique in the market.


For 30S-75S Lithium Battery Packs

Integrated BMS supports 30S-75S lithium battery packs.

For 30S-75S Lithium Battery Packs

30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries less than 100Ah. It greatly reduce the cost of users.



Specification
Product Name
Integrated BMS with case(master slave together in one)
Model no.
RBMS08S70S100A-3
System operating voltage range
120 - 370 VDC
Startup mode
DC start
Balance
Balance type
Passive resistance equalization

Balanced current
100mA ± 10mA(When the Single cell reach 3.5V )
Temperature Sampling
Numbers
12 Battery temperature(4*3)

Sampling accuracy
± 2℃
Voltage Sampling
Sampling accuracy
Single cell ±20mV
Short circuit protection
Support 6KA 20ms
Communication mode
CAN: 1 channel (communication with PCs / UPS)
RS485: 1 channel (communication with upper computer / PCS / UPS)
Display mode
6-digit LED indicators, including 1-digit fault indication, 1-digit running indication, 4-digit SOC power indication
HMI display: optional 3.5 inches
Rated current
50A/100A (can be selected according to customer needs)
Maximum overload capacity
50A system transient: 70A/10S
100A system transient: 150A/10S
Alarm level
1 Level
Protection level
two levels
Level 1 cut off charge / discharge
Level 2 Turn off the micro-break switch and power off the system
Power consumption
≤10W
Weight
7kg
Pressure rating
1800VDC 1mA 1min
Safety certification
Compliant with CE certification standards
operating temperature
－20～60℃
Operating Humidity Range
<90 RH(40℃±2℃)





72S BMS 230.4V 100A Master Slave BMS Lithium Battery Management System For Lifepo4 Battery Pack 172S BMS 230.4V 100A Master Slave BMS Lithium Battery Management System For Lifepo4 Battery Pack 272S BMS 230.4V 100A Master Slave BMS Lithium Battery Management System For Lifepo4 Battery Pack 372S BMS 230.4V 100A Master Slave BMS Lithium Battery Management System For Lifepo4 Battery Pack 4

BMS COMPONENT SIZE AND INTERFACE
72S BMS 230.4V 100A Master Slave BMS Lithium Battery Management System For Lifepo4 Battery Pack 5



DESCRIPTION OF THE INTERFACE DIAGRAM OF THE BMS REVERSE SIDE:

72S BMS 230.4V 100A Master Slave BMS Lithium Battery Management System For Lifepo4 Battery Pack 6
Code
Description
Remark
J1
1-15S voltage and temperature acquisition sockets

J2
16-30S voltage and temperature acquisition sockets

J3
31-45S voltage and temperature acquisition sockets

J4
46-60S voltage and temperature acquisition sockets

J5
61-75S voltage and temperature acquisition sockets

B+
Connected to the the total positive of battery system

B-
Connected to the the total negative of battery system

P+
Connected to the the total positive of inverter

P-
Connected to the the total negative of inverter

AC220V
AC power sockets
For AC startup
(Note: that it must be
connected to the UPS AC
output terminal)



Product Feature
1.It is high integrated with less installation space. 2.Long life cycle, >3000 times at 80% DOD. 3.It without heavy metals and environment friendly. 4.Maintenance free,there is no memory effect. 5.Internal BMS with full protection,battery has high voltage protection with higher reliability.
6. Master and Slave all in one.
Application
◎ Home storage
◎ Island off-grid energy storage
◎ Micro-grid applications
◎ UPS power supply
◎ Power System 220V DC power supply

72S BMS 230.4V 100A Master Slave BMS Lithium Battery Management System For Lifepo4 Battery Pack 7

Company Profile
72S BMS 230.4V 100A Master Slave BMS Lithium Battery Management System For Lifepo4 Battery Pack 872S BMS 230.4V 100A Master Slave BMS Lithium Battery Management System For Lifepo4 Battery Pack 972S BMS 230.4V 100A Master Slave BMS Lithium Battery Management System For Lifepo4 Battery Pack 10
Hunan GCE Technology Co., Ltd.(GCE) is a high-tech company specializing in the R&D and production of BMS and battery energy storage systems for over 10 years. Our products are mainly used for industrial & commercial energy storage and home energy storage.
30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users.
60s-405s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1500V.
7.68KWh-40.96KWh Stackable Home Energy Storage System support 3-8 HV battery modules that are connected in sereis, with small volume, light weight, plug-in embedded design modules, Built-in smart BMS, easy to install and maintain.

Certification
72S BMS 230.4V 100A Master Slave BMS Lithium Battery Management System For Lifepo4 Battery Pack 11
Packing&Shipping
72S BMS 230.4V 100A Master Slave BMS Lithium Battery Management System For Lifepo4 Battery Pack 12
