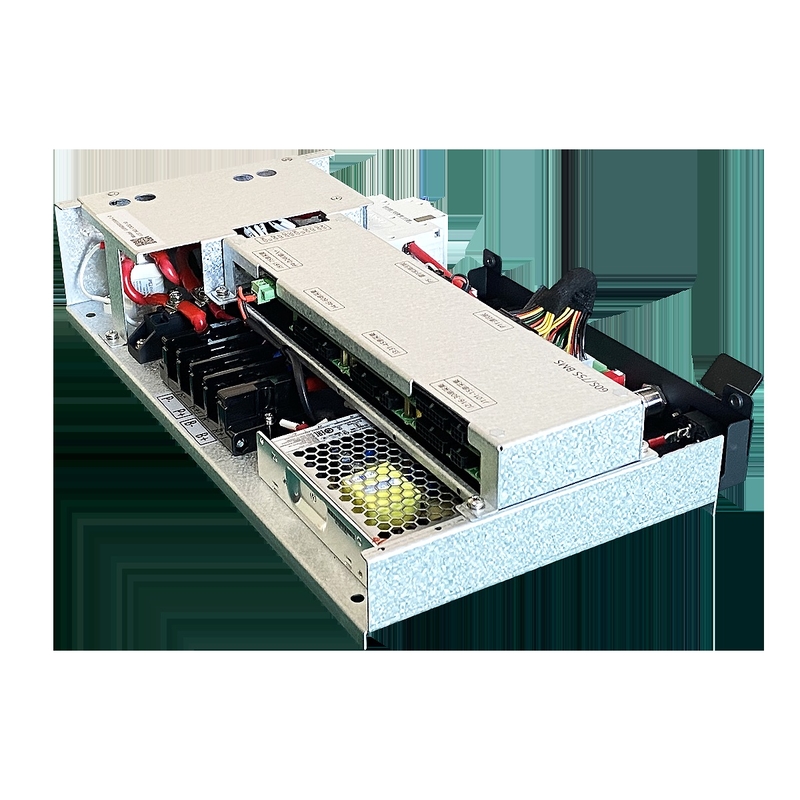

GCE RBMS07S40S50A 128V 50A BMS for Lifepo4 Battery Solar Storage

Name: GCE RBMS07S40S50A 128V 50A BMS for Lifepo4 Battery Solar Storage
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S40S50A, 4
Price: 565.30 USD
Availability: InStock

Product Details

Place of Origin: Hunan, China

Brand Name: GCE

Model Number: RBMS07S40S50A, 4

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: $520.30-611.60

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Lifepo4 battery BMS 128V, Solar storage BMS 50A, Integrated BMS with warranty


Battery Type:	Lifepo4/lithium Battery	System Voltage Range:	96-192 V DC
Number Of Strings:	60 S(4 X 15 S)	Balanced Current:	100mA ± 10mA (single Cell 3.40V)
Discharge Operating:	-20~75℃	Charging Operating:	-10~75℃
Equilibrium Type:	Passive Resistance Equalization	Sampling Accuracy:	± 2℃
Cell Sampling Accuracy:	±20mV	Communication Mode:	CAN, RS485, Bluetooth (optional), GPRS (optional)
Maximum Load:	Steady-state: 100A, Transient State: 150A/10S	Rated Current:	50A/100A (selectable)
Short Circuit Protection:	7.5KA 20ms	Power Consumption:	≤10W
Withstand Voltage:	1800VDC 1mA 1min

Battery Type:	Lifepo4/lithium Battery
System Voltage Range:	96-192 V DC
Number Of Strings:	60 S(4 X 15 S)
Balanced Current:	100mA ± 10mA (single Cell 3.40V)
Discharge Operating:	-20~75℃
Charging Operating:	-10~75℃
Equilibrium Type:	Passive Resistance Equalization
Sampling Accuracy:	± 2℃
Cell Sampling Accuracy:	±20mV
Communication Mode:	CAN, RS485, Bluetooth (optional), GPRS (optional)
Maximum Load:	Steady-state: 100A, Transient State: 150A/10S
Rated Current:	50A/100A (selectable)
Short Circuit Protection:	7.5KA 20ms
Power Consumption:	≤10W
Withstand Voltage:	1800VDC 1mA 1min

GCE RBMS07S40S50A 128V 50A BMS for Lifepo4 Battery Solar Storage

GCE 40S 50A High Voltage Smart BMS Lifepo4 Battery Pack 128V

High Performance Battery Management System for BESS UPS

Product Features

High integration with minimal installation space requirements
Long life cycle: >3000 cycles at 80% depth of discharge
Environmentally friendly with no heavy metals
Maintenance-free design with no memory effect
Integrated BMS with full protection including high voltage protection for enhanced reliability
Combined Master and Slave functionality in single unit

Technical Specifications

Item	Specification
Place of Origin	China, Hunan
Application	Solar Energy Storage Systems
Brand Name	GCE
Model Number	RBMS07S40S50A
Battery Type	Lifepo4/Lithium Battery
System Voltage Range	120 - 228 V DC
Number of Battery Strings	60 S (4 x 15 S)
Balanced Current	100mA ± 10mA (single cell 3.40V)
Operating Temperature (Discharge)	-20°C to 75°C
Operating Temperature (Charge)	-10°C to 75°C
Equilibrium Type	Passive resistance equalization
Communication Modes	CAN: 1 channel (communication with PCs/UPS) RS485: 1 channel (communication with upper computer/PCS/UPS) Bluetooth: optional (android app available) GPRS: optional
Maximum Load of Power Components	Steady-state: 100A Transient state: 150A/10S (Adjustable)
Display Mode	6-digit LED indicator with fault/operation/SOC power indication Optional 3.5 inch HMI display
Rated Current	50A/100A (selectable according to customer needs)
Short Circuit Protection	7.5KA 20ms (Supports 7.5KA)
Power Consumption	≤10W
Withstand Voltage Rating	1800VDC 1mA 1min
Storage Temperature	-40°C to +75°C
Operating Humidity Range	<90% RH (40°C±2°C)

Packaging & Delivery

Packaging options: Corrugated Carton, bundles, pallets, wooden box
