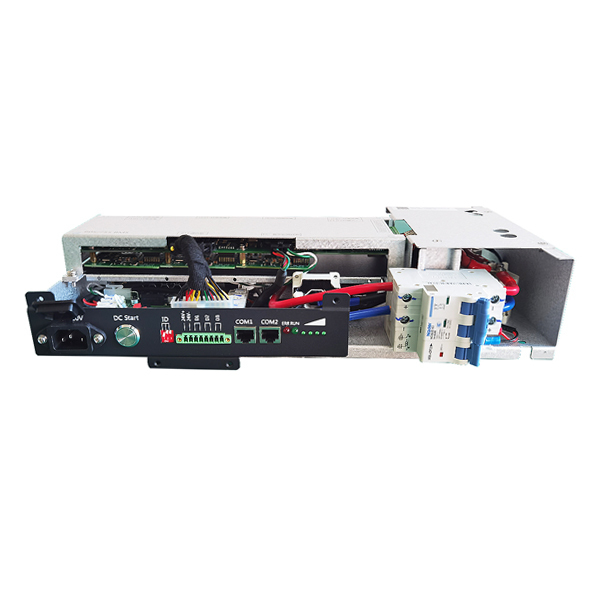

GCE 75S 240V 100A Lifepo4 BMS for Solar Energy Storage Systems

Name: GCE 75S 240V 100A Lifepo4 BMS for Solar Energy Storage Systems
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S75S100A, 75S
Price: 765 USD
Availability: InStock

Product Details

Place of Origin: Hunan, China

Brand Name: GCE

Model Number: RBMS07S75S100A, 75S

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: $765

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Lifepo4 BMS for solar storage, 240V 100A Lifepo4 BMS, Solar energy storage BMS


Current:	50A/100A	Voltage:	240V
Strings:	30s-75s	Communication:	CAN, RS485
Size:	410232128mm	System Voltage Range:	96 - 240 V DC
Number Of Strings:	75 S（5 X 15 S）	Balance Type:	Passive Equalization
Balanced Current:	100mA ± 10mA(Single Cell 3.4V)	Temperature Sampling:	12 Battery Temperature(4*3)
Sampling Accuracy:	± 2℃	Voltage Accuracy:	Single Cell ±20mV
Hall Sensor:	50A/100A	Maximum Load:	Steady-state：100A, Transient State：150A/10S（Adjustable）
Operating Temperature:	Charging : －10～75℃, Discharging : -20 To 75℃, Storage : -40 To +75℃

Current:	50A/100A
Voltage:	240V
Strings:	30s-75s
Communication:	CAN, RS485
Size:	410232128mm
System Voltage Range:	96 - 240 V DC
Number Of Strings:	75 S（5 X 15 S）
Balance Type:	Passive Equalization
Balanced Current:	100mA ± 10mA(Single Cell 3.4V)
Temperature Sampling:	12 Battery Temperature(4*3)
Sampling Accuracy:	± 2℃
Voltage Accuracy:	Single Cell ±20mV
Hall Sensor:	50A/100A
Maximum Load:	Steady-state：100A, Transient State：150A/10S（Adjustable）
Operating Temperature:	Charging : －10～75℃, Discharging : -20 To 75℃, Storage : -40 To +75℃

GCE 75S 240V 100A Lifepo4 BMS for Solar Energy Storage Systems

GCE 75S 240V 100A Lifepo4 BMS Lithium Battery Management System 240V BMS for Lifepo4 Battery Pack Solar Energy Storage System

Key Specifications

75S 100Amp capacity
Communication protocols: CAN, RS485, Dry Contact
Master & Slave all-in-one design
Dimensions: W410 × H232 × D128cm

Product Highlights

Unique Design

This is the latest product developed by our company with unique market positioning.

For 30S-75S Lithium Battery Packs

Integrated BMS supports 30S-75S lithium battery packs.

High Cost Performance

Master and slave functions integrated in one BMS device, eliminating the need for additional Slave BMU purchases.

Technical Specifications

Product Name	Integrated BMS
Model no.	RBMS07S75S100A
System voltage range	96 - 240 V DC
Startup mode	DC start (optional AC and DC starter)
Number of battery strings	75 S（5 x 15 S）
Balance	Passive equalization
Balanced current	100mA ± 10mA(Single cell 3.4V)
Temperature Sampling	12 Battery temperature(4*3), ± 2℃ accuracy
Voltage Sampling	Single cell ±20mV accuracy
Communication mode	CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional
Operating Temperature	Charging: －10～75℃ Discharging: -20 to 75℃ Storage: -40 to +75℃

Product Features

Highly integrated design with minimal installation space requirements
Long life cycle (>3000 times at 80% DOD)
Environmentally friendly (no heavy metals)
Maintenance free with no memory effect
Internal BMS with full protection and high voltage protection
Master and Slave functions integrated in one unit

Applications

Company Profile

Hunan Group Control Energy Technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. Our high-performance intelligent lithium battery management system adopts international leading technology, improving battery management efficiency and prolonging lithium battery service life.

Certifications

Production Line

Packing & Shipping
