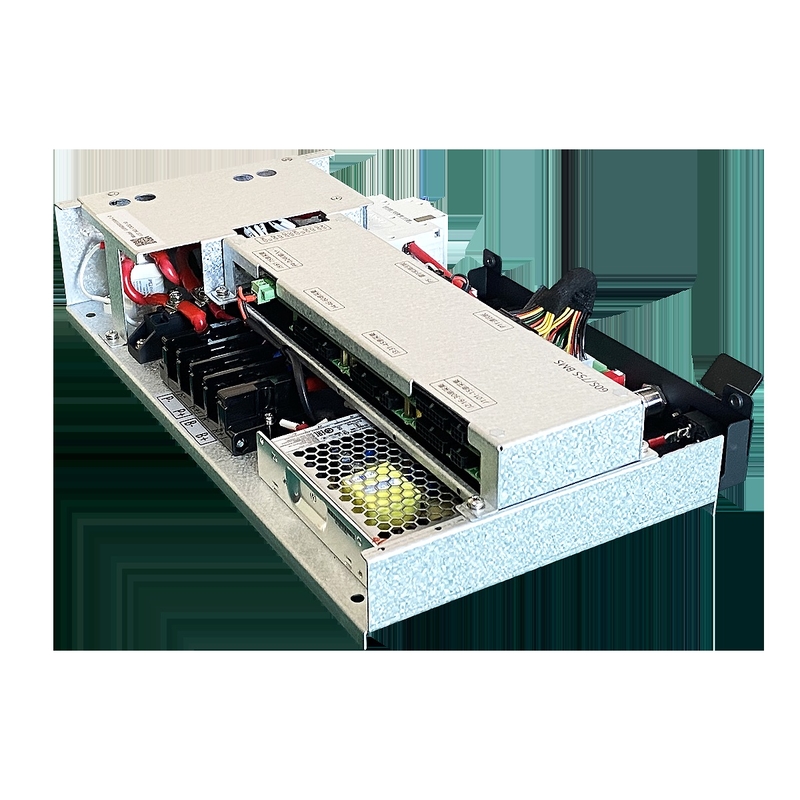

GCE 56S100A Lifepo4 BMS for Solar Storage 96-192V DC 50A

Name: GCE 56S100A Lifepo4 BMS for Solar Storage 96-192V DC 50A
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S56S100A
Price: 570.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan, China

Brand Name: GCE

Model Number: RBMS07S56S100A

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: $524-617

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Lifepo4 BMS for solar storage, 96-192V DC BMS with warranty, 50A integrated BMS for batteries


System Voltage Range:	96-192 V DC	Number Of Strings:	56S(4 X 14S)
Current:	50A	Discharge Operating:	-20~75℃
Charging Operating:	-10~75℃	Balanced Current:	100mA ± 10mA
Sampling Accuracy:	± 2℃	Cell Voltage Accuracy:	±20mV
Maximum Load:	100A Steady-state, 150A/10S Transient	Rated Current:	50A/100A
Short Circuit Protection:	7.5KA 20ms	Power Consumption:	≤10W
Withstand Voltage:	1800VDC 1mA 1min	Operating Humidity:	<90 RH(40℃±2℃)
Communication Modes:	CAN, RS485, Bluetooth (optional), GPRS (optional)

System Voltage Range:	96-192 V DC
Number Of Strings:	56S(4 X 14S)
Current:	50A
Discharge Operating:	-20~75℃
Charging Operating:	-10~75℃
Balanced Current:	100mA ± 10mA
Sampling Accuracy:	± 2℃
Cell Voltage Accuracy:	±20mV
Maximum Load:	100A Steady-state, 150A/10S Transient
Rated Current:	50A/100A
Short Circuit Protection:	7.5KA 20ms
Power Consumption:	≤10W
Withstand Voltage:	1800VDC 1mA 1min
Operating Humidity:	<90 RH(40℃±2℃)
Communication Modes:	CAN, RS485, Bluetooth (optional), GPRS (optional)

GCE 56S100A Lifepo4 BMS for Solar Storage 96-192V DC 50A

GCE 56S179.2V100A High Voltage BMS Smart Lifepo4 Lithium Battery BMS With 15S Slave BMS

Product Overview

Technical Specifications

Item	RBMS07S-56S100A
Place of Origin	China, Hunan
Application	Solar Energy Storage Systems
Brand Name	GCE
Model Number	4
Model	RBMS07S-56S100A
Battery type	Lifepo4/lithium Battery
System voltage range	120 - 228 V DC
Number of battery strings	60 S（4 x 15 S）
Balanced current	100mA ± 10mA (single cell 3.40V)
Discharge operating	-20~75℃
Charging operating	-10~75℃
Equilibrium type	Passive resistance equalization
Sampling accuracy	± 2℃ single cell ±20mV
Communication mode	CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional
Maximum load of power components	Steady-state：100A transient state：150A/10S（Adjustable）
Display mode	6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication,4-bit SOC power indication, HMI display: optional 3.5 inch
Rated current	50A/100A (be selected according to customer needs)
Short circuit protection	7.5KA 20ms Support 7.5KA
Maximum overload capacity	50A system transient: 70A/10S 100A system transient: 150A/10S
Power consumption	≤10W
Withstand voltage rating	1800VDC 1mA 1min
Operating temperature	Charging: －10～75℃ Discharging: -20 to 75℃ Storage: -40 to +75℃
Operating humidity range	<90 RH(40℃±2℃)

Key Features

High integration with minimal installation space requirements
Long life cycle: >3000 times at 80% DOD
Environmentally friendly with no heavy metals
Maintenance free with no memory effect
Internal BMS with full protection and high voltage protection for enhanced reliability
Master and Slave all in one design

Applications

Packaging & Delivery

Company Profile

Hunan GCE technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

Frequently Asked Questions

Who are we?

We are based in Hunan, China, starting from 2020. We sell to South Asia (25.00%), Southeast Asia (12.00%), South America (9.00%), Western Europe (7.00%), Mid East (7.00%), Northern Europe (7.00%), Central America (6.00%), North America (5.00%), Eastern Asia (5.00%), Domestic Market (4.00%), Africa (4.00%), Eastern Europe (4.00%), Southern Europe (3.00%), Oceania (2.00%). There are total about 51-100 people in our office.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment.

What can you buy from us?

BMS, high voltage BMS, integrated BMS, relay BMS, BESS/UPS.

Why should you buy from us not from other suppliers?

More than 10 years of BMS R&D experience, mastering core technology, and providing excellent lithium battery energy management solutions for a large number of customers. The BMS products we produce have high reliability, stability, and efficiency.

What services can we provide?

Accepted Delivery Terms: FOB, EXW;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C;
Language Spoken: English, Chinese, Japanese, German, French, Russian, Korean.
