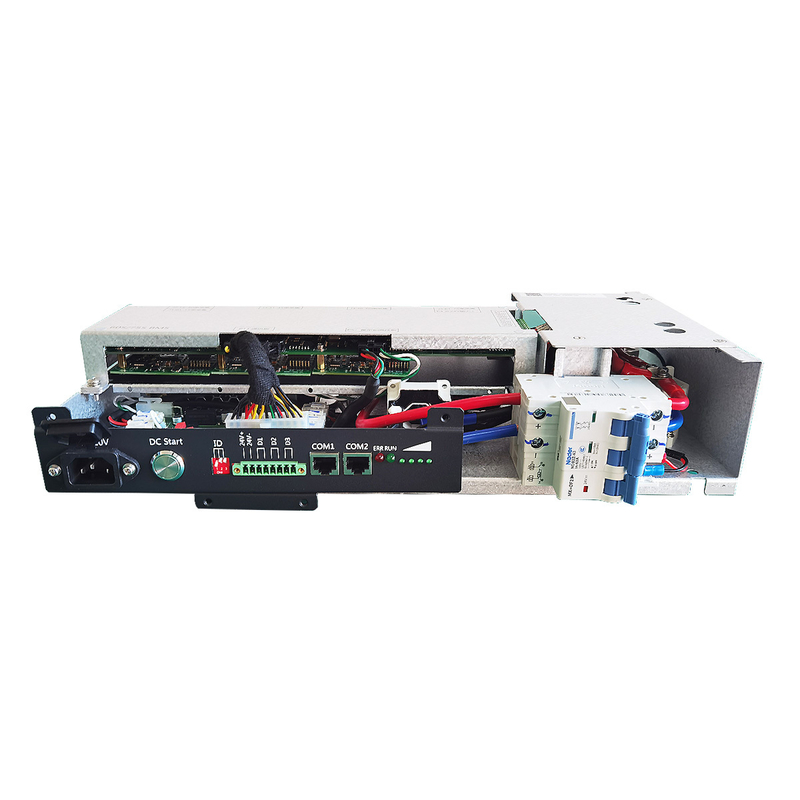

64S 100A Master Slave BMS for Lifepo4 Battery 30S-75S 204.8V

Name: 64S 100A Master Slave BMS for Lifepo4 Battery 30S-75S 204.8V
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S64S100A, 64S
Price: 570 USD
Availability: InStock

Product Details

Place of Origin: Hunan, China

Brand Name: GCE

Model Number: RBMS07S64S100A, 64S

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: $570

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Lifepo4 battery BMS 100A, Master slave BMS 204.8V, Integrated BMS 30S-75S


Current:	100A / 50A	Voltage:	204.8V
Strings:	64S (30s-75s Optional)	Communication:	CAN, RS485
Size:	410232128mm	System Voltage Range:	96 - 240 V DC
Startup Mode:	DC Start (optional AC And DC Starter)	Balance Type:	Passive Equalization
Balanced Current:	100mA ± 10mA(Single Cell 3.4V)	Temperature Sampling:	12 Battery Temperature(4*3)
Sampling Accuracy:	± 2℃	Voltage Sampling Accuracy:	Single Cell ±20mV
SOC:	≤5%	Hall Sensor:	50A/100A
Maximum Load:	Steady-state: 100A, Transient State: 150A/10S (Adjustable)

Current:	100A / 50A
Voltage:	204.8V
Strings:	64S (30s-75s Optional)
Communication:	CAN, RS485
Size:	410232128mm
System Voltage Range:	96 - 240 V DC
Startup Mode:	DC Start (optional AC And DC Starter)
Balance Type:	Passive Equalization
Balanced Current:	100mA ± 10mA(Single Cell 3.4V)
Temperature Sampling:	12 Battery Temperature(4*3)
Sampling Accuracy:	± 2℃
Voltage Sampling Accuracy:	Single Cell ±20mV
SOC:	≤5%
Hall Sensor:	50A/100A
Maximum Load:	Steady-state: 100A, Transient State: 150A/10S (Adjustable)

64S 100A Master Slave BMS for Lifepo4 Battery 30S-75S 204.8V

64S 100A Master Slave BMS Lithium Battery Management System 30S-75S BMS for Lifepo4 Battery Pack Home Solar Energy System

64S 100Amp master slave BMS lithium battery management system designed for 30S-75S lifepo4 battery packs in home solar energy systems.

Key Features

Master & Slave all-in-one design
Supports 30S-75S lithium battery packs
High cost performance - no need for additional Slave BMU
Communication protocols: CAN, RS485, Dry Contact
Dimensions: W410 × H232 × D86cm

Specifications

Product Name	Integrated BMS
Model no.	RBMS07S64S100A
System voltage range	96 - 240 V DC
Startup mode	DC start (optional AC and DC starter)
Number of battery strings	64 S（1 x 12S, 4*13S）
Balance	Passive equalization Balanced current: 100mA ± 10mA (Single cell 3.4V)
Temperature Sampling	12 Battery temperature(4*3) Sampling accuracy: ± 2℃
Voltage Sampling	Single cell ±20mV
Communication mode	CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional
Hall sensor specifications	50A/100A
Maximum load of power components	Steady-state：100A transient state：150A/10S（Adjustable）
Operating Temperature	Charging: －10～75℃ Discharging: -20 to 75℃ Storage: -40 to +75℃

Product Features

High integration with less installation space
Long life cycle (>3000 times at 80% DOD)
Environmentally friendly (no heavy metals)
Maintenance free with no memory effect
Internal BMS with full protection and high reliability
Master and Slave all in one design

Application

Company Profile

Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery.

Certification

Production Line

Packing & Shipping
