64S 100A BMS for Lithium Battery Packs 30S-75S 204.8V

Product Details

Place of Origin: Hunan, China

Brand Name: GCE

Certification: CE/RoHS/UN38.3/MSDS

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: $570

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                64S 100A BMS for lithium batteries, BMS for 30S-75S battery packs, 204.8V lithium battery BMS


Current:	100A / 50A	Voltage:	204.8V
Strings:	64S (30s-75s Optional)	Communication:	CAN, RS485
Size:	410232128mm	System Voltage Range:	96 - 240 V DC
Balance Type:	Passive Equalization	Balanced Current:	100mA ± 10mA
Temperature Sampling:	12 Battery Temperature(4*3)	Sampling Accuracy:	± 2℃
Voltage Sampling Accuracy:	Single Cell ±20mV	Hall Sensor:	50A/100A
Maximum Load:	Steady-state: 100A, Transient State: 150A/10S	Operating Temperature:	Charging: -10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃
SOC:	≤5%

Current:	100A / 50A
Voltage:	204.8V
Strings:	64S (30s-75s Optional)
Communication:	CAN, RS485
Size:	410232128mm
System Voltage Range:	96 - 240 V DC
Balance Type:	Passive Equalization
Balanced Current:	100mA ± 10mA
Temperature Sampling:	12 Battery Temperature(4*3)
Sampling Accuracy:	± 2℃
Voltage Sampling Accuracy:	Single Cell ±20mV
Hall Sensor:	50A/100A
Maximum Load:	Steady-state: 100A, Transient State: 150A/10S
Operating Temperature:	Charging: -10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃
SOC:	≤5%

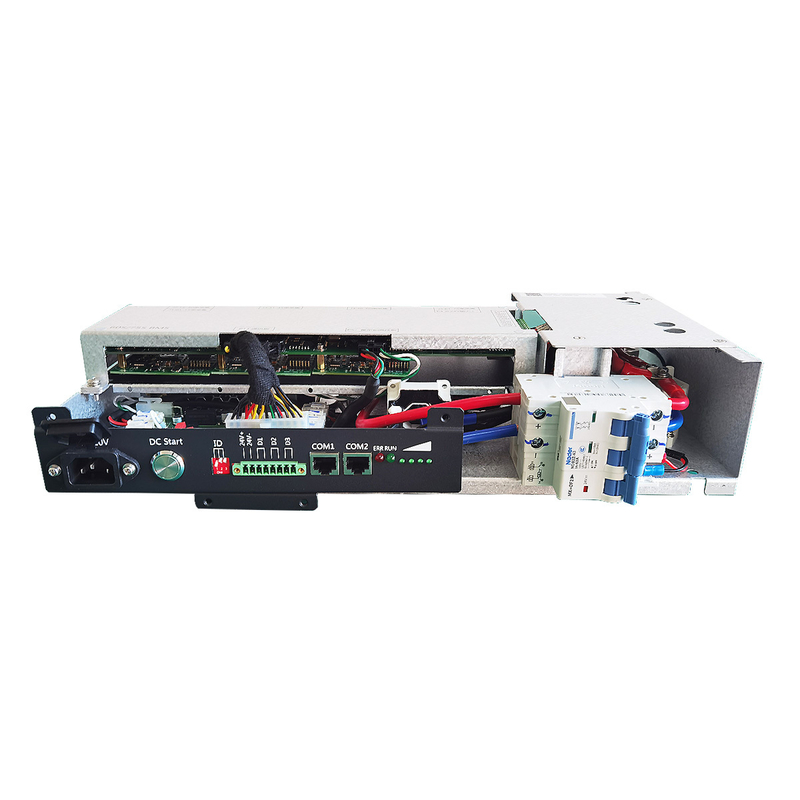

64S 100A BMS for Lithium Battery Packs 30S-75S 204.8V

GCE 64S 100A BMS LifePO4 Battery Management System BMS 30S 40S 60S 64S 75S Smart BMS for Lithium BESS UPS Solar Energy System

64S 100Amp Battery Management System

Master & Slave all-in-one design with dimensions: 410×232×128mm (W×H×D)

Key Features

Latest market-unique design developed by our company
Supports 30S-75S lithium battery packs
High cost-performance integrated Master/Slave BMS
Efficient, stable and reliable performance
Communication protocols: CAN, RS485, Dry Contact

Technical Specifications

Product Name	Integrated BMS
Model No.	RBMS07S64S100A
System Voltage Range	96 - 240 V DC
Number of Battery Strings	64 S (1 x 12S, 4×13S)
Balance Type	Passive equalization (100mA ± 10mA)
Temperature Sampling	12 battery temperature points (±2℃ accuracy)
Voltage Sampling Accuracy	Single cell ±20mV
Communication Modes	CAN, RS485, Bluetooth (optional), GPRS (optional)
Maximum Load	Steady-state: 100A, Transient: 150A/10S (adjustable)
Operating Temperature	Charging: -10°C to 75°C Discharging: -20°C to 75°C Storage: -40°C to +75°C

Product Advantages

High integration with minimal installation space requirements
Long life cycle (>3000 cycles at 80% DOD)
Environmentally friendly with no heavy metals
Maintenance-free with no memory effect
Comprehensive internal BMS protection for high reliability
Master and Slave functionality in single unit

Applications

Company Profile

Hunan Group Control Energy Technology Co., Ltd. (GCE) specializes in BMS and lithium battery peripheral equipment R&D. Our high-performance intelligent lithium battery management systems use leading international technology to enhance battery management efficiency and extend lithium battery service life.

Our advanced BMS control strategy overcomes common industry challenges, offering:

4S-24S low voltage software BMS with rich interfaces and development compatibility
30S-75S BMS with master-slave integrated design for cost-effective multi-string solutions
60S-270S three-level architecture for high-capacity single lithium batteries up to 1000V
