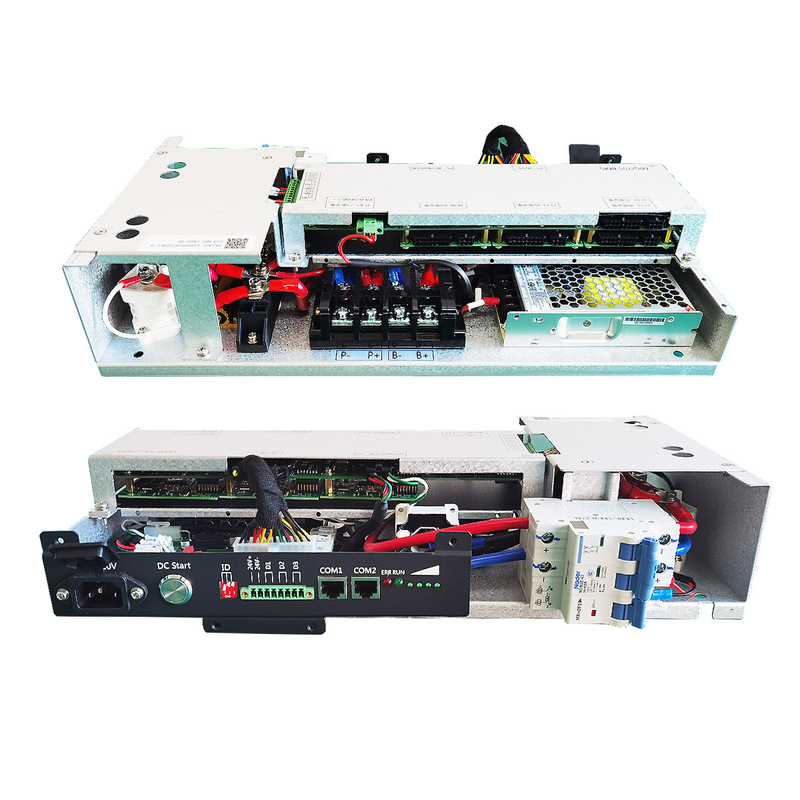

GCE 60S Integrated BMS 50A 100A for Solar Battery Systems 192V 240V

Name: GCE 60S Integrated BMS 50A 100A for Solar Battery Systems 192V 240V
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S60S50A, 60S
Price: 675 USD
Availability: InStock

Product Details

Place of Origin: Hunan, China

Brand Name: GCE

Model Number: RBMS07S60S50A, 60S

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: $675

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Integrated BMS for solar battery, 50A 100A BMS with warranty, 192V 240V battery management system


Current:	50A/100A	Voltage Range:	96-240V DC
Battery Strings:	30S-75S	Communication Protocol:	CAN, RS485, Dry Contact
Size:	410232128mm	Balance Type:	Passive Equalization
Balanced Current:	100mA ± 10mA	Temperature Sampling:	12 Battery Temperature(4*3)
Temperature Accuracy:	± 2℃	Voltage Accuracy:	Single Cell ±20mV
Maximum Load:	Steady-state: 100A, Transient State: 150A/10S	Operating Temperature:	Charging: -10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃
SOC Accuracy:	≤5%	Display Mode:	6-digit LED Indicator
Protection Level:	2 Levels

Current:	50A/100A
Voltage Range:	96-240V DC
Battery Strings:	30S-75S
Communication Protocol:	CAN, RS485, Dry Contact
Size:	410232128mm
Balance Type:	Passive Equalization
Balanced Current:	100mA ± 10mA
Temperature Sampling:	12 Battery Temperature(4*3)
Temperature Accuracy:	± 2℃
Voltage Accuracy:	Single Cell ±20mV
Maximum Load:	Steady-state: 100A, Transient State: 150A/10S
Operating Temperature:	Charging: -10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃
SOC Accuracy:	≤5%
Display Mode:	6-digit LED Indicator
Protection Level:	2 Levels

GCE 60S Integrated BMS 50A 100A for Solar Battery Systems 192V 240V

GCE 60S Integrated BMS System 50A 100A Lithium Battery BMS LifepPO4 192V 240V High Voltage BMS for Solar Battery System UPS

The GCE 60S Integrated BMS System is a high-performance battery management solution designed for 50A-100A lithium battery applications, supporting 192V-240V high voltage systems in solar battery configurations and UPS installations.

Key Features

Master & Slave all-in-one design for simplified installation
Supports 30S-75S lithium battery packs
High cost-performance ratio by eliminating need for separate Slave BMU
Compact dimensions: 410mm(W) × 232mm(H) × 128mm(D)
Compatible with major inverters including Sermatec, Sofar, Goodwe, ATESS, Growatt, and more
Multiple communication protocols: CAN, RS485, Dry Contact
Efficient, stable and reliable operation

Technical Specifications

Product Name	Integrated BMS
Model No.	RBMS07S45S50A
System Voltage Range	96 - 240 V DC
Number of Battery Strings	45S
Balance Type	Passive equalization (100mA ± 10mA per cell at 3.4V)
Temperature Sampling	12 points (±2℃ accuracy)
Voltage Sampling Accuracy	±20mV per cell
Communication Interfaces	CAN: 1 channel RS485: 1 channel Bluetooth: optional GPRS: optional
Current Rating	50A/100A Hall sensor
Operating Temperature	Charging: -10°C to 75°C Discharging: -20°C to 75°C Storage: -40°C to +75°C

Product Advantages

High integration with minimal installation space requirements
Long life cycle (>3000 cycles at 80% DOD)
Environmentally friendly with no heavy metals
Maintenance-free operation with no memory effect
Comprehensive internal BMS protection for high reliability
Master and Slave functionality in single unit

Manufacturer Profile

Hunan Group Control Energy Technology Co., Ltd. (GCE) specializes in advanced BMS and lithium battery peripheral equipment. Our high-performance intelligent lithium battery management systems utilize leading international technology to enhance battery efficiency and lifespan.
