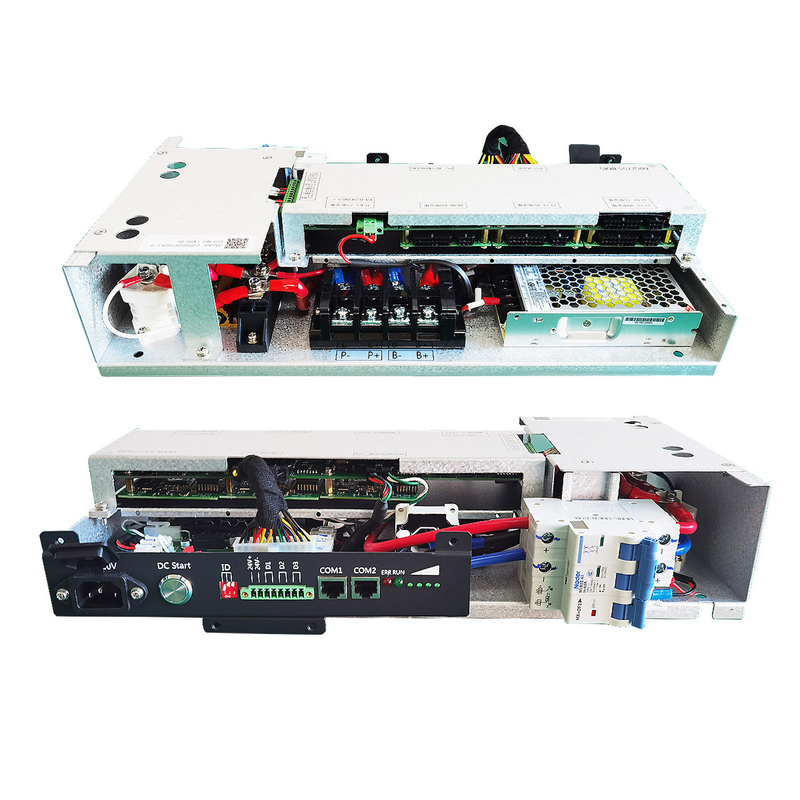

144V 45S 50A 100A Lifepo4 BMS with CAN RS485 Communication

Product Details

Place of Origin: Hunan, China

Brand Name: GCE

Certification: CE/RoHS/UN38.3/MSDS

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: $500-556

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                144V Lifepo4 BMS with CAN communication, 45S 50A BMS with RS485, 100A integrated BMS for Lifepo4


Current:	50A/100A	Voltage:	144V (96V-240V Optional)
Strings:	45S (30s-75s Optional)	Communication:	CAN, RS485
Size:	410232128mm	System Voltage Range:	96 - 240 V DC
Startup Mode:	DC Start (optional AC And DC Starter)	Balance Type:	Passive Equalization
Balanced Current:	100mA ± 10mA(Single Cell 3.4V)	Temperature Sampling:	12 Battery Temperature(4*3)
Sampling Accuracy:	± 2℃	Voltage Sampling Accuracy:	Single Cell ±20mV
Communication Mode:	CAN: 1 Channel, RS485: 1 Channel	Maximum Load:	Steady-state: 100A, Transient State: 150A/10S
Operating Temperature:	Charging: -10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃

Current:	50A/100A
Voltage:	144V (96V-240V Optional)
Strings:	45S (30s-75s Optional)
Communication:	CAN, RS485
Size:	410232128mm
System Voltage Range:	96 - 240 V DC
Startup Mode:	DC Start (optional AC And DC Starter)
Balance Type:	Passive Equalization
Balanced Current:	100mA ± 10mA(Single Cell 3.4V)
Temperature Sampling:	12 Battery Temperature(4*3)
Sampling Accuracy:	± 2℃
Voltage Sampling Accuracy:	Single Cell ±20mV
Communication Mode:	CAN: 1 Channel, RS485: 1 Channel
Maximum Load:	Steady-state: 100A, Transient State: 150A/10S
Operating Temperature:	Charging: -10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃

144V 45S 50A 100A Lifepo4 BMS with CAN RS485 Communication

GCE BMS 144V 45S 50A 100A LifePO4 BMS Battery Management System with RS485 CAN Communication for LFP NMC LTO Battery

GCE BMS 144V 45S 50A 100A LifePO4 BMS Battery Management System with RS485 CAN communication for LFP NMC LTO battery

Key Features

45S 50Amp configuration
Communication protocols: CAN, RS485, Dry Contact
Master & Slave all in one design
Efficient, stable and reliable performance
Dimensions: W410 × H232 × D128cm
Compatible with major inverters including Sermatec, Sofar, Goodwe, ATESS, Growatt, Megarevo, Voltronic, Victron Power

Unique Design

This is the latest product developed by our company with unique market positioning.

For 30S-75S Lithium Battery Packs

Integrated BMS supports 30S-75S lithium battery packs.

High Cost Performance

Master and slave functions integrated in one BMS device, eliminating the need for additional Slave BMU purchase.

Specifications

Product Name	Integrated BMS
Model no.	RBMS07S45S50A
System voltage range	96 - 240 V DC
Startup mode	DC start (optional AC and DC starter)
Number of battery strings	45S
Balance	Passive equalization Balanced current: 100mA ± 10mA (Single cell 3.4V)
Temperature Sampling	12 Battery temperature (4×3) Sampling accuracy: ± 2℃
Voltage Sampling	Single cell ±20mV
SOC	≤5%
Communication mode	CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional
Display mode	6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication HMI display: optional
Hall sensor specifications	50A/100A
Maximum load of power components	Steady-state: 100A Transient state: 150A/10S (Adjustable)
Alarm level	1 Level
Protection level	2 two levels Level 1 cut off charge / discharge Level 2 micro cut-off switch, system power down
Operating Temperature	Charging: -10 to 75℃ Discharging: -20 to 75℃ Storage: -40 to +75℃

Product Features

High integration with minimal installation space requirements
Long life cycle (>3000 times at 80% DOD)
Environmentally friendly (no heavy metals)
Maintenance free with no memory effect
Internal BMS with full protection and high voltage protection for greater reliability
Master and Slave functions integrated in one unit

Application

Company Profile

Hunan Group Control Energy Technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. Our high-performance intelligent lithium battery management system adopts international leading technology, significantly improving battery management efficiency and prolonging lithium battery service life. The advanced BMS control strategy overcomes difficulties and instability faced by most competitors.

Our product range includes 4S to 24S low voltage software BMS with wide applications, rich interfaces, and strong scalability; 30S to 75S BMS with master-slave integrated design and relay solutions for multiple strings of small capacity batteries; and 60S-270S master-slave three-level architecture for high-capacity single lithium batteries up to 1000V.
