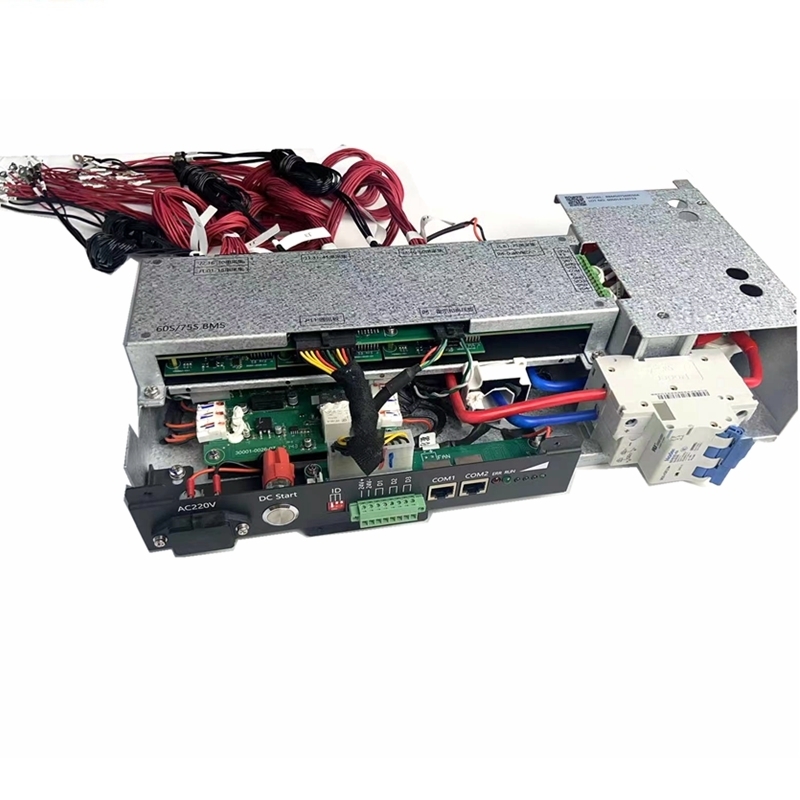

Name: 96V 100A Master Slave Integrated BMS for Solar Energy Storage Systems
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07D30S100A
Price: 30.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan, China

Brand Name: GCE/OEM/ODM

Certification: CE/RoHS/MSDS

Model Number: RBMS07D30S100A

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: US$597,30-663,30

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                96V 100A integrated BMS for solar, master slave BMS for energy storage, solar energy storage BMS with warranty


Voltage:	96V	Current:	100A
Dimension:	410232128MM	System Operating Voltage:	120 - 370 VDC
Number Of Strings:	30S(15*2S)	Balance Current:	100mA ± 10mA
Temperature Sampling:	6 Battery Temperature(2*3)	Temperature Accuracy:	± 2℃
Voltage Accuracy:	±20mV	Short Circuit Protection:	7.5KA 20ms
Maximum Load:	50A System Transient: 70A/10S, Steady-state: 100A, Transient State: 150A/10S	Power Consumption:	≤10W
Withstand Voltage:	1800VDC 1mA 1min	Operating Temperature:	Charging: -10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃
Operating Humidity:	<90 RH(40℃±2℃)

Voltage:	96V
Current:	100A
Dimension:	410232128MM
System Operating Voltage:	120 - 370 VDC
Number Of Strings:	30S(15*2S)
Balance Current:	100mA ± 10mA
Temperature Sampling:	6 Battery Temperature(2*3)
Temperature Accuracy:	± 2℃
Voltage Accuracy:	±20mV
Short Circuit Protection:	7.5KA 20ms
Maximum Load:	50A System Transient: 70A/10S, Steady-state: 100A, Transient State: 150A/10S
Power Consumption:	≤10W
Withstand Voltage:	1800VDC 1mA 1min
Operating Temperature:	Charging: -10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃
Operating Humidity:	<90 RH(40℃±2℃)

96V 100A Master Slave Integrated BMS for Solar Energy Storage Systems

GCE High Voltage 30S 96V 100A BMS Integrated Master Slave Battery Management Solution

Product Overview

Factory-supplied BMS solution for solar energy systems and battery pack applications. Master and slave functionality integrated into a single unit.

Available Models

Model No	Rated Current	Number of Strings	Number of Rack
RBMS07D30S50A	50A	30S	Parallel
RBMS07D30S100A	100A	30S	Parallel
RBMS07S30S50A	50A	30S	Single
RBMS07S30S100A	100A	30S	Single
Special designs and requirements available - contact us for custom solutions

Delivery Contents (Per Set)

Part Name	Specification	Quantity
Host Unit	According to order model requirements	1pc
Voltage Acquisition Wiring Harness	Standard 1.2m voltage collection line	4pcs (60 strings); 5pcs (75 strings)
Temperature Collection Harness	Standard 1.2m temperature collection line	4pcs (60 strings); 5pcs (75 strings)
AC Plug	-	1pc
Terminals	8 Pin green	1pc

Technical Specifications

Item	Description
Product Name	Integrated BMS (Master and Slave all in one)
Model No	RBMS07D30S100A
System Operating Voltage	120 - 370 VDC
Balance Type	Passive resistance equalization (100mA ± 10mA)
Temperature Sampling	6 battery temperature points (accuracy ±2℃)
Voltage Sampling Accuracy	Single cell ±20mV
Communication Interfaces	CAN, RS485, Bluetooth (optional), GPRS (optional)
Short Circuit Protection	Supports 7.5KA for 20ms
Rated Current	100A (50A optional)
Safety Certification	CE compliant
Operating Temperature	Charging: -10 to 75℃; Discharging: -20 to 75℃

Product Features

Highly integrated design with minimal installation space requirements
Long life cycle (>3000 cycles at 80% DOD)
Environmentally friendly (no heavy metals)
Maintenance free with no memory effect
Comprehensive protection features including high voltage protection
Master and slave functionality integrated into single unit

Applications

high voltage BMS(HV BMS)

Energy Storage BMS

Battery Management System

Integrated BMS

Master Slave BMS

UPS BMS

ESS BMS

BMS Solution

Relay BMS

EV BMS

Stackable high voltage BMS(HV BMS)

Battery Energy Storage System

Battery Power
