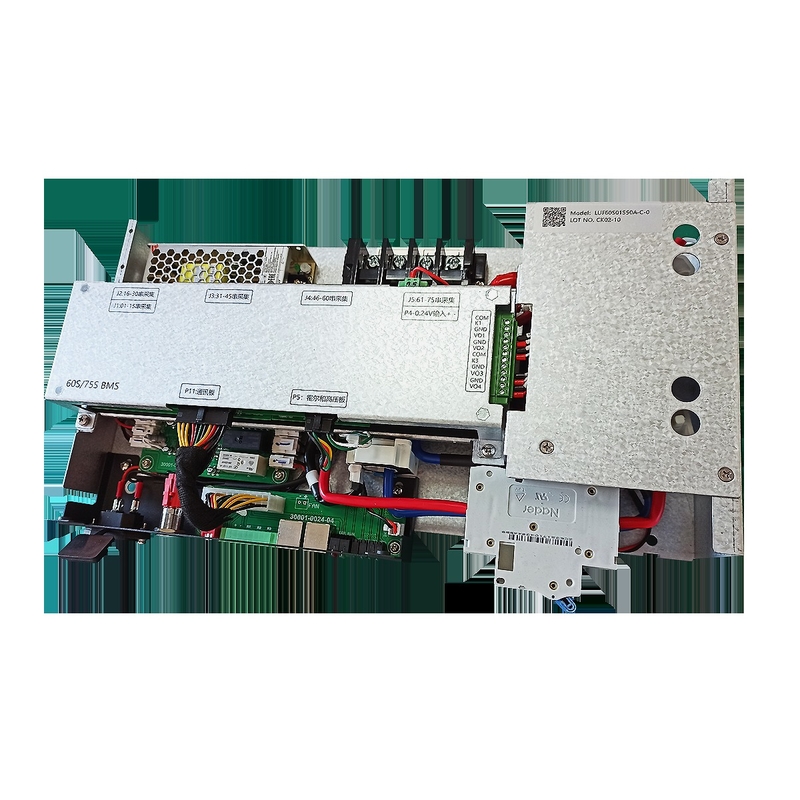

GCE 144V 100A Lithium Ion Battery BMS for Solar Energy Storage

Name: GCE 144V 100A Lithium Ion Battery BMS for Solar Energy Storage
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S45S100A
Price: 542.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan, China

Brand Name: GCE/OEM/ODM

Certification: CE/RoHS/MSDS

Model Number: RBMS07S45S100A

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: $514-571

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                            144V lithium ion BMS, 100A solar battery BMS, integrated BMS for energy storage


Voltage:	144V	Current:	100A
Dimension:	410232128MM	Number Of Strings:	45S
Balance Current:	100mA ± 10mA	Temperature Sampling:	9 Points
Temperature Accuracy:	± 2℃	Voltage Accuracy:	±20mV
Communication Modes:	RS485/CAN/LAN/Bluetooth	Short Circuit Protection:	7.5KA 20ms
Maximum Load:	150A/10S	Power Consumption:	≤10W
Withstand Voltage:	1800VDC 1mA 1min	Operating Temperature:	-20 To 75℃
Operating Humidity:	<90 RH(40℃±2℃)

Voltage:	144V
Current:	100A
Dimension:	410232128MM
Number Of Strings:	45S
Balance Current:	100mA ± 10mA
Temperature Sampling:	9 Points
Temperature Accuracy:	± 2℃
Voltage Accuracy:	±20mV
Communication Modes:	RS485/CAN/LAN/Bluetooth
Short Circuit Protection:	7.5KA 20ms
Maximum Load:	150A/10S
Power Consumption:	≤10W
Withstand Voltage:	1800VDC 1mA 1min
Operating Temperature:	-20 To 75℃
Operating Humidity:	<90 RH(40℃±2℃)

GCE 144V 100A Lithium Ion Battery BMS for Solar Energy Storage

GCE High Voltage 45S144V 100A Lithium Ion Battery BMS Integrated Lifepo4 Energy Storage Management System

Product Specification

Product Name: GCE lifepo4 Battery Management System High Voltage bms 45S 144V 100A Lithium ion Battery BMS For Battery Energy storage UPS ESS

Available Models

Model No	Rated Current	Number of strings	Number of Rack
RBMS07D30S50A	50A	30S	parallel
RBMS07D30S100A	100A	30S	parallel
RBMS07S30S50A	50A	30S	Single
RBMS07S30S100A	100A	30S	Single
RBMS07D40S50A	50A	40S	parallel
RBMS07D40S100A	100A	40S	parallel
RBMS07S40S50A	50A	40S	Single
RBMS07S40S100A	100A	40S	Single
RBMS07S45S50A	50A	45S	Single
RBMS07S45S100A	100A	45S	Single
RBMS07S75S50A	50A	75S	Single
RBMS07S75S100A	100A	75S	Single
RBMS07D75S50A	50A	75S	parallel
RBMS07D75S100A	100A	75S	parallel

Special design and requirement also available, Please contact us for more details!

Delivery List For One Set

Part Name	Specification	Quantity
host	According to the order model requirements	1pc
Voltage acquisition wiring harness	Standard 1.2m voltage collection line	4pcs (60 strings); 5pcs (75 strings)
Temperature collection harness	Standard 1.2m temperature collection line	4pcs (60 strings); 5pcs (75 strings)
AC plug		1pc
Terminals	8 Pin green	1pc

Specification & Technical Data

Item	Descriptions
Product Name	Integrated BMS (BMS for master and slave all in one)
Model No	RBMS07S45S100A
Startup mode	DC start (optional AC and DC starter)
System operating Voltage	120 - 370 VDC
Number of strings	45S(15S*3) \| S for Single Rack, D for multiple racks in parallel connection
Balance	Passive resistance equalization
Balanced current	100mA ± 10mA(Single cell 3.4V)
Temperature Sampling	9 Battery temperature(3*3) for 45S \| Sampling accuracy: ± 2℃
Voltage Sampling	Sampling accuracy: single cell ±20mV
SOC%	battery indicator: 25 for 0%-25%, 50 for 25%-50%, 75 for 50%-75%, 100 for 75%-100%
Communication mode	CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional
Display mode	6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication HMI display: optional
Short circuit protection	Support 7.5KA 20ms
Rated Current	100A（50A is optional, according to the customers' need)
Maximum load of power components	50A system transient: 70A/10S Steady-state: 100A transient state: 150A/10S
Alarm level	1 Level
Protection level	2 two levels Level 1 cut off charge / discharge Level 2 micro cut-off switch, system power down
Power Consumption	≤10W
Withstand voltage rating	1800VDC 1mA 1min
Safety certification	Comply with CE certification standards
Operating Temperature	Charging: －10～75℃ Discharging: -20 to 75℃ Storage: -40 to +75℃
Operating humidity range	<90 RH(40℃±2℃)

Product Features

High integrated design with minimal installation space requirements
Long life cycle: >3000 times at 80% DOD
Environmentally friendly: Contains no heavy metals
Maintenance free with no memory effect
Internal BMS with full protection including high voltage protection for enhanced reliability
Master and Slave functionality integrated in one unit

Application

Company Profile

We are factory, welcome to visit us!

Warehouse

Production Line

Assembling Line

Certification

Packaging and Shipping

FAQ

1. Are you a manufacturer or simply a trading company?

We are a manufacturer, and we sincerely welcome you to visit our factory.

2. Can I get some samples?

Yes, a sample order is available for quality checking and market testing.

3. What kind of cells are applicable to this Battery Management System?

LFP, NMC, LTO

4. How about the delivery time?

The delivery time will usually take about 15 to 20 working days accordingly to the specification of your order and quantity.

5. What are your terms of payment?

For sample order or small orders usually will require full payment in advance. For Big amount orders can be 30%-50% deposit and the rest payment should be payment before shipping. Advanced T/T is the main payment term, and other payment terms are negotiable.

6. What are your warranty terms?

We offer a 3-year warranty for RBMS, 1-year warranty for PCB.

7. Can you produce BMS with customization requirements?

Yes, based on the order quantity, we can make some small adjustments.

8. How does your factory do regarding quality control?

Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.

9. What Trade Terms are available?

No limitation for trade terms. EXW/FOB/CFR are all available. Moreover, we can send BMS via DHL&UPS&FEDEX quickly and easily. Other shipping ways can also be negotiable and available.

10. Is your BMS easy and convenient to install&test?

This is our the 4th generation high voltage bms. It's an overall bms solution, that is to say, you don't need professional technology to install our high-voltage BMS to form a complete battery system.

11. What benefits do customers get?

Our high voltage BMS has complete battery charge and discharge control logic and balance function between batteries. We can also set various parameters of the system according to the actual needs of customers to ensure the stability, reliability and efficient performance of the system.
