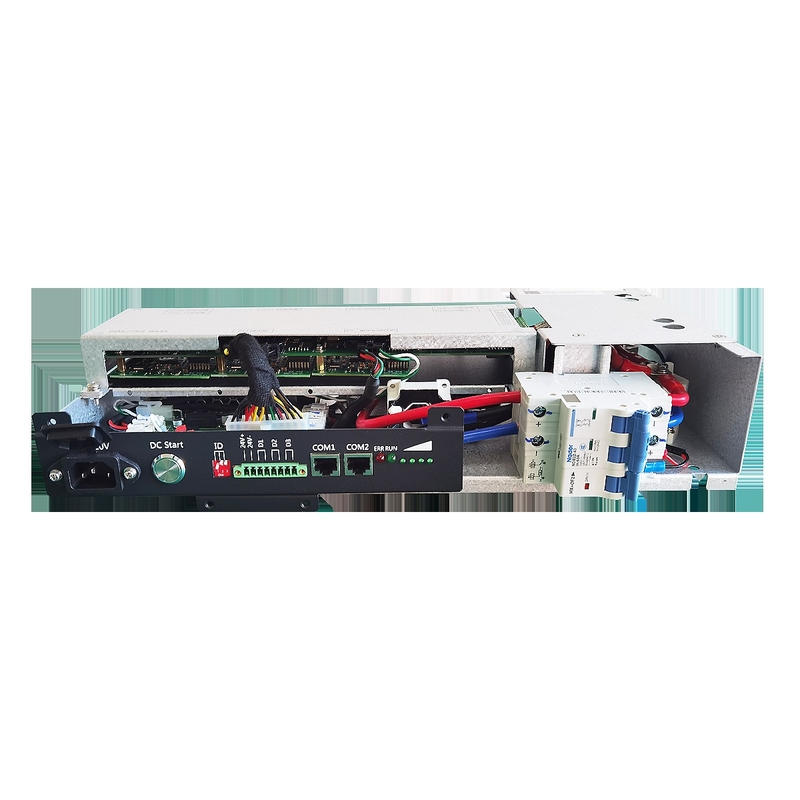

30S-60S 96-192V 100A Integrated BMS for UPS Solar Energy Systems

Name: 30S-60S 96-192V 100A Integrated BMS for UPS Solar Energy Systems
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S60S100A
Price: 556.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan, China

Brand Name: GCE

Model Number: RBMS07S60S100A

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: $542-571

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                96-192V integrated BMS for solar, 100A UPS battery management system, 30S-60S integrated BMS with warranty


Capacity:	1500VA	Phase:	Single Phase
Weight:	8kg	Electric Energy:	24000 Wh
Battery Type:	LFP/NMC/LTO	Battery Strings:	30s-60S 96v-192V
Charge Current:	100Amp	Discharge Current:	100Amp
Communication:	Rs485/CAN	System Voltage:	120 - 228 V DC
Balance Current:	100mA ± 10mA	Temperature Sampling:	12 Battery Temperature(4*3)
Voltage Accuracy:	Single Cell ±20mV	Operating Temperature:	Charging: -10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃
Maximum Load:	Steady-state: 100A, Transient State: 150A/10S

Capacity:	1500VA
Phase:	Single Phase
Weight:	8kg
Electric Energy:	24000 Wh
Battery Type:	LFP/NMC/LTO
Battery Strings:	30s-60S 96v-192V
Charge Current:	100Amp
Discharge Current:	100Amp
Communication:	Rs485/CAN
System Voltage:	120 - 228 V DC
Balance Current:	100mA ± 10mA
Temperature Sampling:	12 Battery Temperature(4*3)
Voltage Accuracy:	Single Cell ±20mV
Operating Temperature:	Charging: -10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃
Maximum Load:	Steady-state: 100A, Transient State: 150A/10S

30S-60S 96-192V 100A Integrated BMS for UPS Solar Energy Systems

30S-60S 96-192V 100A Relay BMS Lithium Battery Management System

High voltage BMS breaker with master-slave functionality in one unit for solar energy systems, UPS, and ESS applications.

Key Specifications

Product Name	Integrated BMS
Model No.	RBMS07S60S100A
System Voltage Range	120 - 228 V DC
Number of Battery Strings	30S (3×15S) - 60S (4×15S)
Balance Type	Passive resistance equalization
Balanced Current	100mA ± 10mA (Single cell 3.4V)
Communication Protocol	CAN, RS485, GPRS, Dry Contact
Maximum Load	Steady-state: 100A Transient state: 150A/10S (Adjustable)
Operating Temperature	Charging: -10°C to 75°C Discharging: -20°C to 75°C Storage: -40°C to +75°C

Product Features

Highly integrated design with minimal installation space requirements
Long life cycle (>3000 cycles at 80% DOD)
Environmentally friendly with no heavy metals
Maintenance-free with no memory effect
Comprehensive internal BMS protection with high voltage protection
Master and slave functionality integrated in one unit
Efficient, stable and reliable performance
Dimensions: 410mm(W) × 232mm(H) × 128mm(D)

Applications

Company Profile

Hunan Group Control Energy Technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. Our high-performance intelligent lithium battery management system adopts international leading technology, significantly improving battery management efficiency and prolonging lithium battery service life.

Our product range includes 4S to 24S low voltage software BMS with rich interfaces and strong scalability, 30S to 75S BMS with master-slave integrated design, and 60S-270S systems with three-level architecture for high-capacity lithium battery applications up to 1000V.

Certifications

Production Line

Packing & Shipping
