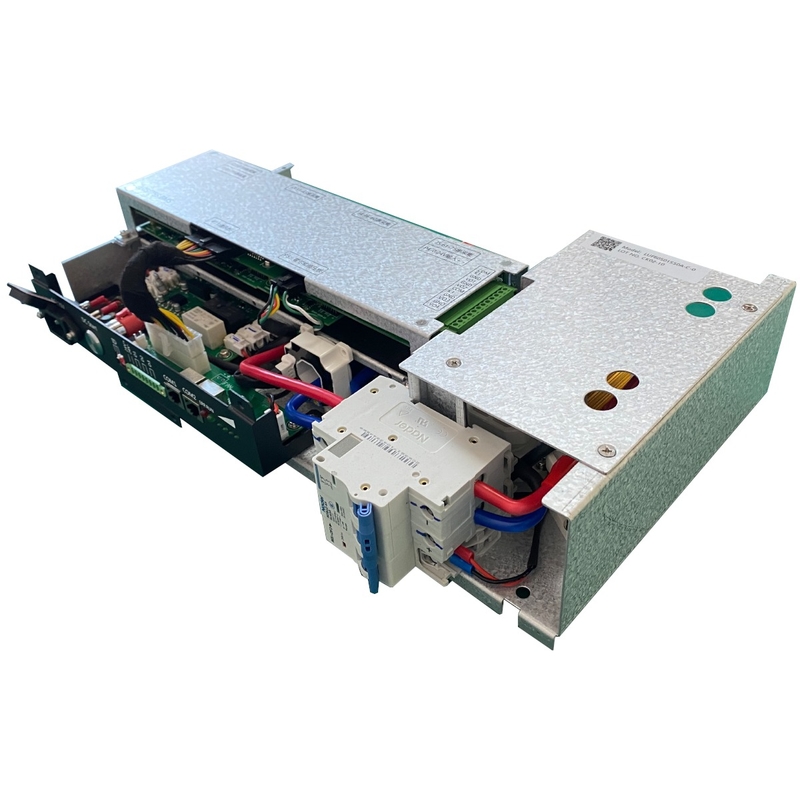

30S 50A Integrated BMS for 30S-75S Lithium Battery Packs

Name: 30S 50A Integrated BMS for 30S-75S Lithium Battery Packs
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S30S50A
Price: 542.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan, China

Brand Name: GCE

Model Number: RBMS07S30S50A

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: $528-556

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                30S 50A integrated BMS, Lithium battery pack BMS, 30S-75S battery management system


Battery Type:	Lithium Iron Phosphate Battery, LFP, NCM, LTO	Current:	50A/100A
Voltage:	240V	Strings:	30s-75s
Communication:	CAN, RS485	Size:	410232128mm
System Voltage:	120 - 228 V DC	Startup Mode:	DC Start
Balance Type:	Passive Resistance Equalization	Balanced Current:	100mA ± 10mA
Temperature Sampling:	12 Battery Temperature	Sampling Accuracy:	± 2℃
Voltage Sampling:	Single Cell ±20mV	Hall Sensor:	50A/100A
Operating Temperature:	Charging: -10～75℃, Discharging: -20 To 75℃

Battery Type:	Lithium Iron Phosphate Battery, LFP, NCM, LTO
Current:	50A/100A
Voltage:	240V
Strings:	30s-75s
Communication:	CAN, RS485
Size:	410232128mm
System Voltage:	120 - 228 V DC
Startup Mode:	DC Start
Balance Type:	Passive Resistance Equalization
Balanced Current:	100mA ± 10mA
Temperature Sampling:	12 Battery Temperature
Sampling Accuracy:	± 2℃
Voltage Sampling:	Single Cell ±20mV
Hall Sensor:	50A/100A
Operating Temperature:	Charging: -10～75℃, Discharging: -20 To 75℃

30S 50A Integrated BMS for 30S-75S Lithium Battery Packs

30S 96V 50A Integrated BMS for Home Storage System UPS BESS Relay BMS with RS485 CAN GPRS Communication

Key Specifications:

30S 50Amp capacity
Communication protocols: CAN, RS485, Bluetooth, GPRS, Dry Contact
Master & Slave all in one design
Efficient, stable and reliable performance
Dimensions: W410 × H232 × D128 cm

Unique Design Features

This is the latest product developed by our company with unique market positioning.

Compatibility:

Integrated BMS supports 30S-75S lithium battery packs, adopting master-slave integrated design and relay solution to meet lithium battery demand for multiple strings of small capacity batteries, significantly reducing user costs.

Technical Specifications

Product Name	Integrated BMS
Model no.	RBMS07S30S50A
System voltage range	120 - 228 V DC
Startup mode	DC start (optional AC and DC starter)
Number of battery strings	60 S（4 x 15 S）
Balance	Passive resistance equalization Balanced current: 100mA ± 10mA (Single cell 3.4V)
Temperature Sampling	12 Battery temperature(4*3) Sampling accuracy: ± 2℃
Voltage Sampling	Single cell ±20mV
SOC	≤5%
Communication mode	CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional
Display mode	6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication HMI display: optional
Hall sensor specifications	50A/100A
Maximum load of power components	Steady-state：100A transient state：150A/10S（Adjustable）
Alarm level	1 Level
Protection level	2 two levels Level 1 cut off charge / discharge Level 2 micro cut-off switch, system power down
Operating Temperature	Charging: －10～75℃ Discharging: -20 to 75℃ Storage: -40 to +75℃

Product Features

High integration with minimal installation space requirements
Long life cycle (>3000 times at 80% DOD)
Environmentally friendly with no heavy metals
Maintenance free with no memory effect
Internal BMS with full protection and high voltage protection for greater reliability
Master and Slave all in one design

Applications

Company Profile

Hunan Group Control Energy Technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. Our high-performance intelligent lithium battery management system adopts international leading technology, improving battery management efficiency and prolonging lithium battery service life. Our advanced BMS control strategy overcomes difficulties faced by most competitors.

Our product range includes 4S to 24s low voltage software BMS with wide applications and rich interfaces, 30s to 75s BMS with master-slave integrated design, and 60s-270s systems with master-slave three-level architecture for high-capacity single lithium batteries up to 1000V.
