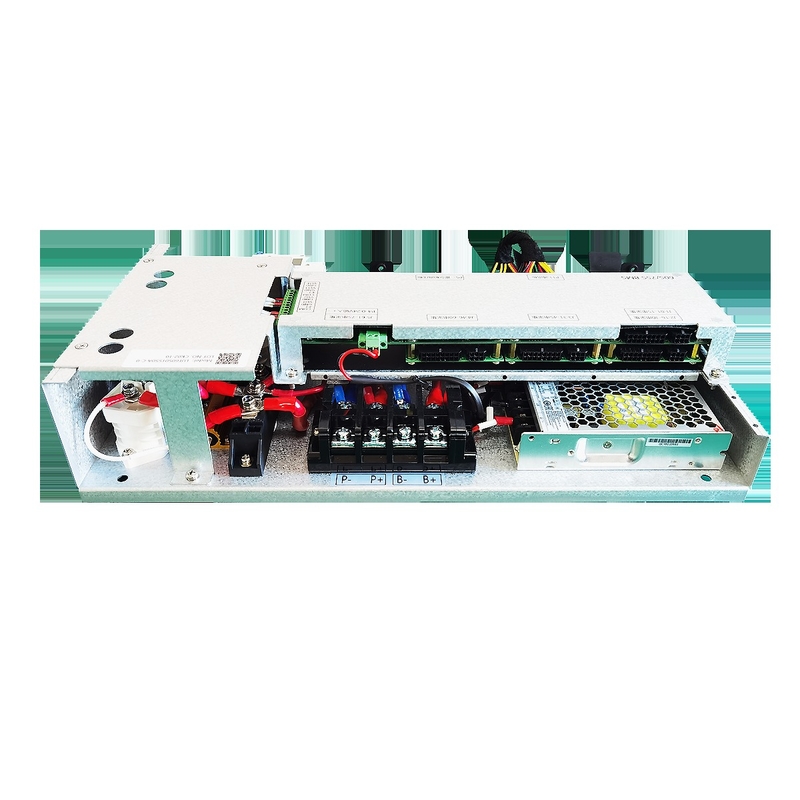

75S 100A 240V LiFePO4 Battery Management System with CAN RS485

Name: 75S 100A 240V LiFePO4 Battery Management System with CAN RS485
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S40S50A
Price: 765 USD
Availability: InStock

Product Details

Place of Origin: Hunan, China

Brand Name: GCE

Certification: CE/RoHS/UN38.3/MSDS

Model Number: RBMS07S40S50A

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $765

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                LiFePO4 battery management system with CAN, 75S 100A BMS with RS485, 240V integrated BMS for LiFePO4


Battery Type:	LiFePO4, Lithium Iron Phosphate Battery	Design:	Slave And Master BMS All In One
Current:	50A/100A	Voltage:	240V
Strings:	30s-75s	Communication Protocol:	CAN, RS485, Bluetooth, GPRS, Dry Contact
Dimensions:	L410W232H128mm	System Voltage Range:	120 - 228 V DC
Startup Mode:	DC Start (optional AC And DC Starter)	Number Of Strings:	60 S（4 X 15 S）
Balance Current:	100mA ± 10mA(Single Cell 3.4V)	Temperature Sampling:	12 Battery Temperature(4*3)
Sampling Accuracy:	± 2℃	Voltage Sampling Accuracy:	Single Cell ±20mV
Operating Temperature:	Charging: －10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃

Battery Type:	LiFePO4, Lithium Iron Phosphate Battery
Design:	Slave And Master BMS All In One
Current:	50A/100A
Voltage:	240V
Strings:	30s-75s
Communication Protocol:	CAN, RS485, Bluetooth, GPRS, Dry Contact
Dimensions:	L410W232H128mm
System Voltage Range:	120 - 228 V DC
Startup Mode:	DC Start (optional AC And DC Starter)
Number Of Strings:	60 S（4 X 15 S）
Balance Current:	100mA ± 10mA(Single Cell 3.4V)
Temperature Sampling:	12 Battery Temperature(4*3)
Sampling Accuracy:	± 2℃
Voltage Sampling Accuracy:	Single Cell ±20mV
Operating Temperature:	Charging: －10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃

75S 100A 240V LiFePO4 Battery Management System with CAN RS485

75S 100A BMS 240V Lithium Battery Management System with RS485 CAN Communication

Key Features

Supports 30S-75S lithium battery packs (Li-Ion/LiFePO4/LFP)
100A continuous current rating
Communication protocols: CAN, RS485, Bluetooth, GPRS, Dry Contact
Master & Slave all-in-one design
Compact dimensions: 410×232×128mm
High integration with minimal installation space
Long life cycle (>3000 cycles at 80% DOD)
Environmentally friendly (no heavy metals)
Maintenance free with no memory effect
Comprehensive internal protection system

Technical Specifications

Parameter	Specification
Model Number	RBMS07S75S100A
System Voltage Range	120-228V DC
Startup Mode	DC start (optional AC and DC starter)
Number of Battery Strings	60S (4×15S)
Balance Type	Passive resistance equalization
Balanced Current	100mA ±10mA (Single cell 3.4V)
Temperature Sampling	12 battery temperature sensors (4×3), ±2℃ accuracy
Voltage Sampling Accuracy	±20mV per cell
Communication Interfaces	CAN: 1 channel (PCs/UPS communication) RS485: 1 channel (upper computer/PCS/UPS communication) Bluetooth: optional (Android app available) GPRS: optional
Display	6-digit LED indicator with fault/operation/SOC indication
Maximum Load	Steady-state: 100A Transient: 150A/10S (adjustable)
Protection Levels	Level 1: Cut off charge/discharge Level 2: Micro cut-off switch, system power down
Operating Temperature	Charging: -10°C to 75°C Discharging: -20°C to 75°C Storage: -40°C to +75°C

Unique Design Advantages

This innovative BMS features a master-slave integrated design with relay solution, specifically developed to support multiple strings of small capacity lithium batteries while significantly reducing user costs.

Applications

About GCE

Hunan Group Control Energy Technology Co., Ltd. (GCE) is a high-tech company specializing in BMS and lithium battery peripheral equipment R&D. Our advanced BMS technology improves battery management efficiency and extends lithium battery service life.

Certifications

Production & Shipping
