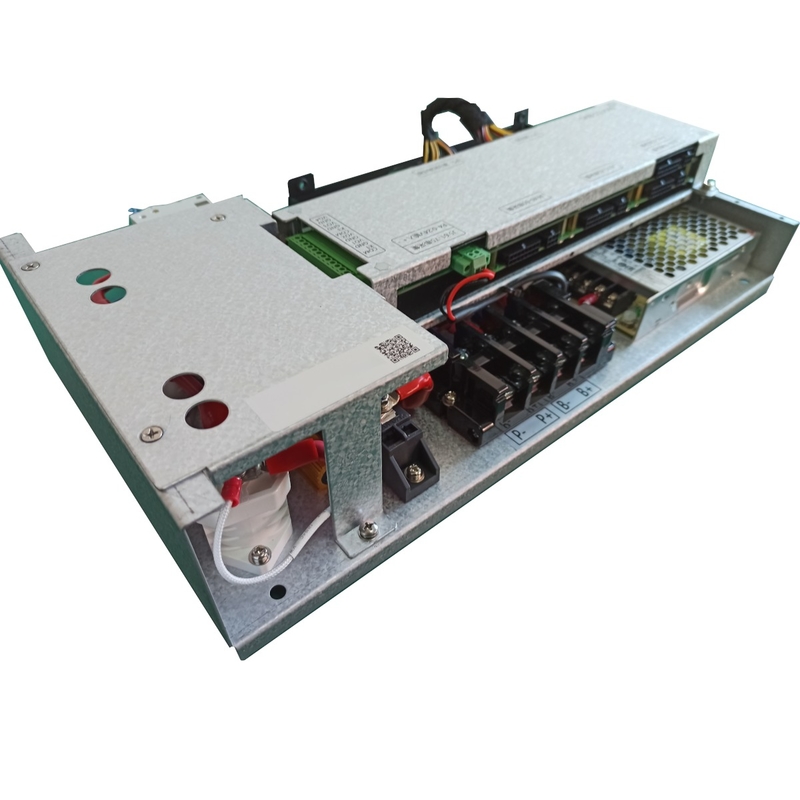

75S 50A 240V Lithium BMS for Lifepo4 Battery Pack 30S-75S

Name: 75S 50A 240V Lithium BMS for Lifepo4 Battery Pack 30S-75S
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S70S50A
Price: 557.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan, China

Brand Name: GCE

Certification: CE/RoHS/UN38.3/MSDS

Model Number: RBMS07S70S50A

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: $528-587

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                75S Lifepo4 BMS with 50A, 240V lithium battery BMS, 30S-75S battery management system


Battery Size:	18650	Weight:	8kg
Current:	50A/100A	Voltage:	240V
Strings:	30s-75s	Communication:	CAN, RS485
Size:	410232128mm	Anode Material:	LFP
Charging Ratio:	99.8%	Discharge Rate:	99.8%
Electric Energy:	11200 Wh	System Voltage:	120 - 228 V DC
Balance Current:	100mA ± 10mA	Temperature Accuracy:	± 2℃
Voltage Accuracy:	±20mV

Battery Size:	18650
Weight:	8kg
Current:	50A/100A
Voltage:	240V
Strings:	30s-75s
Communication:	CAN, RS485
Size:	410232128mm
Anode Material:	LFP
Charging Ratio:	99.8%
Discharge Rate:	99.8%
Electric Energy:	11200 Wh
System Voltage:	120 - 228 V DC
Balance Current:	100mA ± 10mA
Temperature Accuracy:	± 2℃
Voltage Accuracy:	±20mV

75S 50A 240V Lithium BMS for Lifepo4 Battery Pack 30S-75S

Unique Design 75S 50A Lithium Battery Management System BMS 240V BMS for Lifepo4 Battery Pack

75S 50Amp

Communication protocol:

CAN, RS485, Bluetooth, GPRS, Dry Contact

Design: Master & Slave all in one
Efficient, stable and reliable
Size: W410*H232*D128cm

Unique Design

This is the latest product developed by our company and it's unique in the market.

For 30S-75S Lithium Battery Packs

Integrated BMS supports 30S-75S lithium battery packs.

30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the cost of users.

Specification

Product Name	Integrated BMS
Model no.	RBMS07S60S50A
System voltage range	120 - 228 V DC
Startup mode	DC start (optional AC and DC starter)
Number of battery strings	60 S（4 x 15 S）
Balance	Passive resistance equalization
Balanced current	100mA ± 10mA(Single cell 3.4V)
Temperature Sampling	12 Battery temperature(4*3), Sampling accuracy: ± 2℃
Voltage Sampling	Sampling accuracy: Single cell ±20mV
SOC	≤5%
Communication mode	CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional
Display mode	6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication HMI display: optional
Hall sensor specifications	50A/100A
Maximum load of power components	Steady-state：100A transient state：150A/10S（Adjustable）
Alarm level	1 Level
Protection level	2 two levels Level 1 cut off charge / discharge Level 2 micro cut-off switch, system power down
Operating Temperature	Charging : －10～75℃ Discharging : -20 to 75℃ Storage : -40 to +75℃

Product Features

High integrated design with less installation space
Long life cycle, >3000 times at 80% DOD
Environmentally friendly with no heavy metals
Maintenance free with no memory effect
Internal BMS with full protection and high voltage protection for higher reliability
Master and Slave all in one design

Application

Company Profile

Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.
