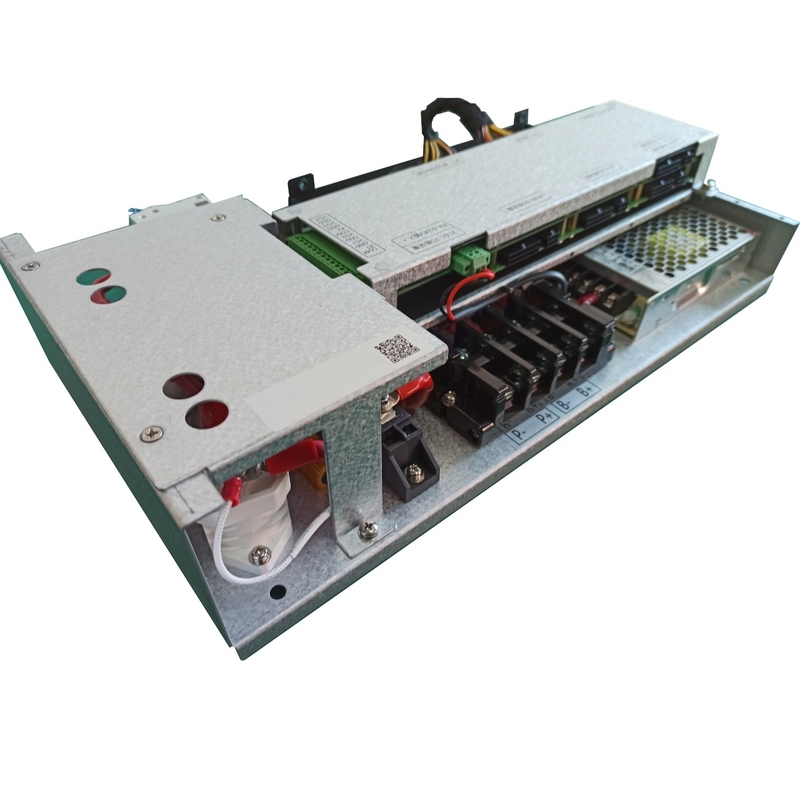

GCE 144V 100A LiFePo4 BMS for Solar Energy Storage and UPS

Name: GCE 144V 100A LiFePo4 BMS for Solar Energy Storage and UPS
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S-45S100A
Price: 528.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan, China

Brand Name: GCE

Model Number: RBMS07S-45S100A

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: $485-571

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                144V LiFePo4 BMS for solar, 100A BMS for UPS, integrated BMS with warranty


Voltage:	144V	Current:	100A
Weight:	5.3KG	Battery Type:	LiFePo4
System Voltage Range:	120 - 228 V DC	Number Of Strings:	60 S (4 X 15 S)
Balance Type:	Passive Resistance Equalization	Balance Current:	100mA ± 10mA
Temperature Sampling:	12 Battery Temperature (4*3)	Temperature Accuracy:	± 2℃
Voltage Accuracy:	Single Cell ±20mV	Communication Modes:	CAN, RS485, Bluetooth, GPRS, Dry Contact
Hall Sensor:	50A/100A	Maximum Load:	Steady-state: 100A, Transient State: 150A/10S
Operating Temperature:	Charging: -10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃

Voltage:	144V
Current:	100A
Weight:	5.3KG
Battery Type:	LiFePo4
System Voltage Range:	120 - 228 V DC
Number Of Strings:	60 S (4 X 15 S)
Balance Type:	Passive Resistance Equalization
Balance Current:	100mA ± 10mA
Temperature Sampling:	12 Battery Temperature (4*3)
Temperature Accuracy:	± 2℃
Voltage Accuracy:	Single Cell ±20mV
Communication Modes:	CAN, RS485, Bluetooth, GPRS, Dry Contact
Hall Sensor:	50A/100A
Maximum Load:	Steady-state: 100A, Transient State: 150A/10S
Operating Temperature:	Charging: -10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃

GCE 144V 100A LiFePo4 BMS for Solar Energy Storage and UPS

GCE High Voltage 45S144V 100A Lifepo4 BMS Master BMS Slave BMU Series

45S144V 100A Battery Management System for energy storage and UPS applications.

Key Specifications

Product Name	Integrated BMS
Model No.	RBMS07S-45S100A
System Voltage Range	120 - 228 V DC
Startup Mode	DC start (optional AC and DC starter)
Number of Battery Strings	60 S (4 x 15 S)
Balance Type	Passive resistance equalization
Balanced Current	100mA ± 10mA (Single cell 3.4V)
Temperature Sampling	12 Battery temperature (4*3), Accuracy: ±2℃
Voltage Sampling Accuracy	Single cell ±20mV
Communication Protocol	CAN, RS485, Bluetooth, GPRS, Dry Contact
Maximum Load	Steady-state: 100A, Transient state: 150A/10S (Adjustable)
Operating Temperature	Charging: -10～75℃, Discharging: -20 to 75℃, Storage: -40 to +75℃

Product Features

High integration with compact installation footprint (W410*H232*D128cm)
Long life cycle (>3000 cycles at 80% DOD)
Environmentally friendly with no heavy metals
Maintenance-free operation with no memory effect
Comprehensive internal BMS protection including high voltage protection
Efficient, stable and reliable performance

Applications

Company Profile

Hunan Group Control Energy Technology Co., Ltd. (GCE) specializes in BMS and lithium battery peripheral equipment R&D. Our high-performance intelligent lithium battery management system uses international leading technology to enhance battery management efficiency and extend service life.
