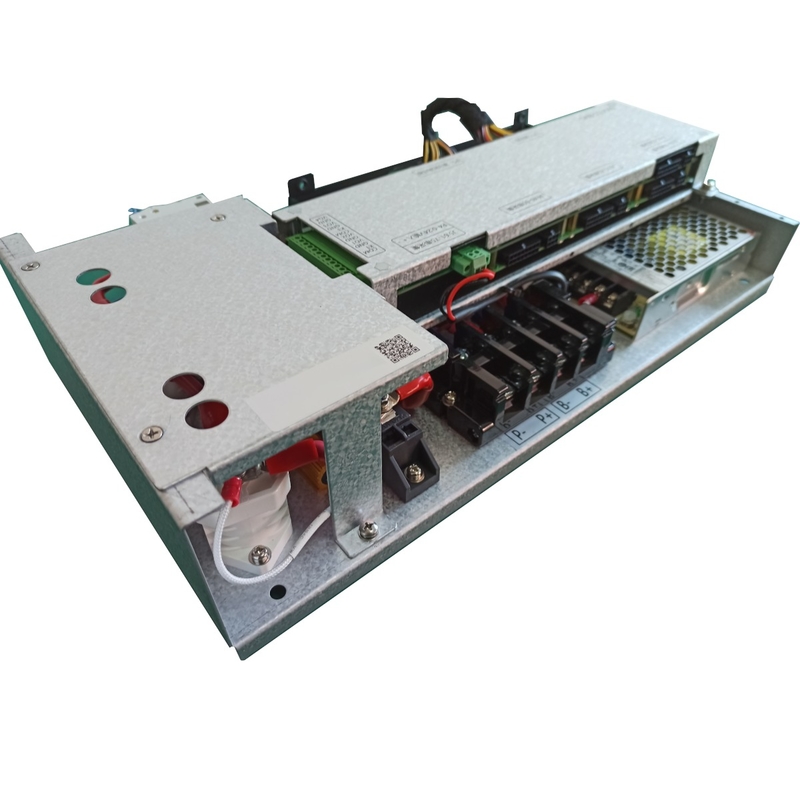

75S 100A Master Slave BMS for Lifepo4 Battery 240V 410x232x86mm

Product Details

Place of Origin: Hunan, China

Brand Name: GCE

Model Number: 75S

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: $570

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                75S 100A Lifepo4 BMS, Master Slave BMS for Lifepo4, 240V Lifepo4 battery BMS


Current:	50A/100A	Voltage:	240V
Strings:	30s-75s	Communication:	CAN, RS485
Size:	41023286mm	System Voltage Range:	96 - 240 V DC
Number Of Strings:	75 S（5 X 15 S）	Balance Type:	Passive Equalization
Balanced Current:	100mA ± 10mA	Temperature Sampling:	12 Battery Temperature(4*3)
Sampling Accuracy:	± 2℃	Voltage Accuracy:	Single Cell ±20mV
SOC:	≤5%	Maximum Load:	100A Steady-state, 150A/10S Transient
Operating Temperature:	Charging: -10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃

Current:	50A/100A
Voltage:	240V
Strings:	30s-75s
Communication:	CAN, RS485
Size:	41023286mm
System Voltage Range:	96 - 240 V DC
Number Of Strings:	75 S（5 X 15 S）
Balance Type:	Passive Equalization
Balanced Current:	100mA ± 10mA
Temperature Sampling:	12 Battery Temperature(4*3)
Sampling Accuracy:	± 2℃
Voltage Accuracy:	Single Cell ±20mV
SOC:	≤5%
Maximum Load:	100A Steady-state, 150A/10S Transient
Operating Temperature:	Charging: -10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃

75S 100A Master Slave BMS for Lifepo4 Battery 240V 410x232x86mm

75S 100A Master Slave BMS Lithium Battery Management System 240V BMS for Lifepo4 Battery Pack

Key Features:

Master & Slave all-in-one design
Efficient, stable and reliable performance
Dimensions: 410mm(W) × 232mm(H) × 86mm(D)
Compatible with Growatt, Goodwe, Sofar, Deye, Bluesun and other popular inverters

Unique Design

This is the latest product developed by our company with unique market positioning.

For 30S-75S Lithium Battery Packs

Integrated BMS supports 30S-75S lithium battery packs.

High Cost Performance

Master and slave functions integrated into one BMS device, eliminating the need for additional Slave BMU units.

Specification

Product Name	Integrated BMS
Model no.	RBMS07S75S100A
System voltage range	96 - 240 V DC
Startup mode	DC start (optional AC and DC starter)
Number of battery strings	75 S（5 x 15 S）
Balance	Equilibrium type: Passive equalization Balanced current: 100mA ± 10mA (Single cell 3.4V)
Temperature Sampling	Numbers: 12 Battery temperature(4*3) Sampling accuracy: ± 2℃
Voltage Sampling	Single cell ±20mV
SOC	≤5%
Communication mode	CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional
Display mode	6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication HMI display: optional
Hall sensor specifications	50A/100A
Maximum load of power components	Steady-state：100A transient state：150A/10S（Adjustable）
Alarm level	1 Level
Protection level	2 two levels Level 1 cut off charge / discharge Level 2 micro cut-off switch, system power down
Operating Temperature	Charging : －10～75℃ Discharging : -20 to 75℃ Storage : -40 to +75℃

Product Features

High integration with minimal installation space requirements
Long life cycle (>3000 times at 80% DOD)
Environmentally friendly (no heavy metals)
Maintenance free with no memory effect
Internal BMS with full protection and high voltage reliability
Master and Slave functions integrated into one unit

Application

Company Profile

Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery.

Certification

Production Line

Packing & Shipping
