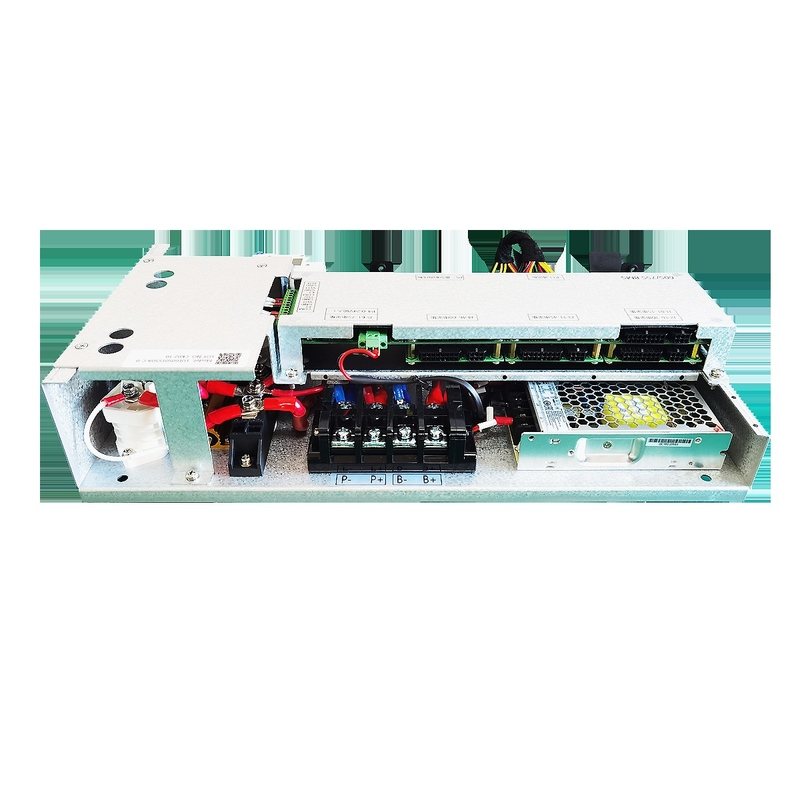

60S 100A Lifepo4 BMS for 30S-75S Lithium Battery Packs 240V

Product Details

Place of Origin: Hunan, China

Brand Name: GCE

Model Number: 60S

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: $514-571

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                60S 100A Lifepo4 BMS, 30S-75S lithium battery BMS, 240V battery management system


Current:	50A/100A	Voltage:	240V
Strings:	30s-75s	Communication:	CAN, RS485
Size:	410232128mm	System Voltage Range:	120 - 228 V DC
Number Of Battery Strings:	60 S（4 X 15 S）	Balance Current:	100mA ± 10mA(Single Cell 3.4V)
Temperature Sampling Accuracy:	± 2℃	Voltage Sampling Accuracy:	Single Cell ±20mV
Hall Sensor Specifications:	50A/100A	Maximum Load:	Steady-state：100A, Transient State：150A/10S（Adjustable）
Operating Temperature:	Charging: －10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃	Balance Type:	Passive Resistance Equalization
Display Mode:	6-digit LED Indicator

Current:	50A/100A
Voltage:	240V
Strings:	30s-75s
Communication:	CAN, RS485
Size:	410232128mm
System Voltage Range:	120 - 228 V DC
Number Of Battery Strings:	60 S（4 X 15 S）
Balance Current:	100mA ± 10mA(Single Cell 3.4V)
Temperature Sampling Accuracy:	± 2℃
Voltage Sampling Accuracy:	Single Cell ±20mV
Hall Sensor Specifications:	50A/100A
Maximum Load:	Steady-state：100A, Transient State：150A/10S（Adjustable）
Operating Temperature:	Charging: －10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃
Balance Type:	Passive Resistance Equalization
Display Mode:	6-digit LED Indicator

60S 100A Lifepo4 BMS for 30S-75S Lithium Battery Packs 240V

60S 100A Lifepo4 BMS Lithium Battery Management System 192V High Voltage Battery Energy Storage System

60S 100Amp lithium battery management system with multiple communication protocols: CAN, RS485, Bluetooth, GPRS, and Dry Contact.

Key Features

Master & Slave all-in-one design
Efficient, stable and reliable performance
Compact dimensions: W410 × H232 × D128cm

Unique Design

This is the latest product developed by our company with unique market positioning.

Compatibility

Integrated BMS supports 30S-75S lithium battery packs with master-slave integrated design and relay solution, reducing costs for multiple strings of small capacity batteries.

Specifications

Product Name	Integrated BMS
Model no.	RBMS07S60S100A
System voltage range	120 - 228 V DC
Startup mode	DC start (optional AC and DC starter)
Number of battery strings	60 S（4 x 15 S）
Balance	Passive resistance equalization Balanced current: 100mA ± 10mA (Single cell 3.4V)
Temperature Sampling	12 Battery temperature(4*3) Sampling accuracy: ± 2℃
Voltage Sampling	Single cell ±20mV
SOC	≤5%
Communication mode	CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional
Display mode	6-digit LED indicator (1-bit fault, 1-bit operation, 4-bit SOC power) HMI display: optional
Hall sensor specifications	50A/100A
Maximum load of power components	Steady-state: 100A Transient state: 150A/10S (Adjustable)
Alarm level	1 Level
Protection level	2 levels Level 1: cut off charge/discharge Level 2: micro cut-off switch, system power down
Operating Temperature	Charging: －10～75℃ Discharging: -20 to 75℃ Storage: -40 to +75℃

Product Features

High integration with minimal installation space requirements
Long life cycle (>3000 times at 80% DOD)
Environmentally friendly with no heavy metals
Maintenance free with no memory effect
Internal BMS with full protection and high reliability
Master and Slave all-in-one design

Applications
