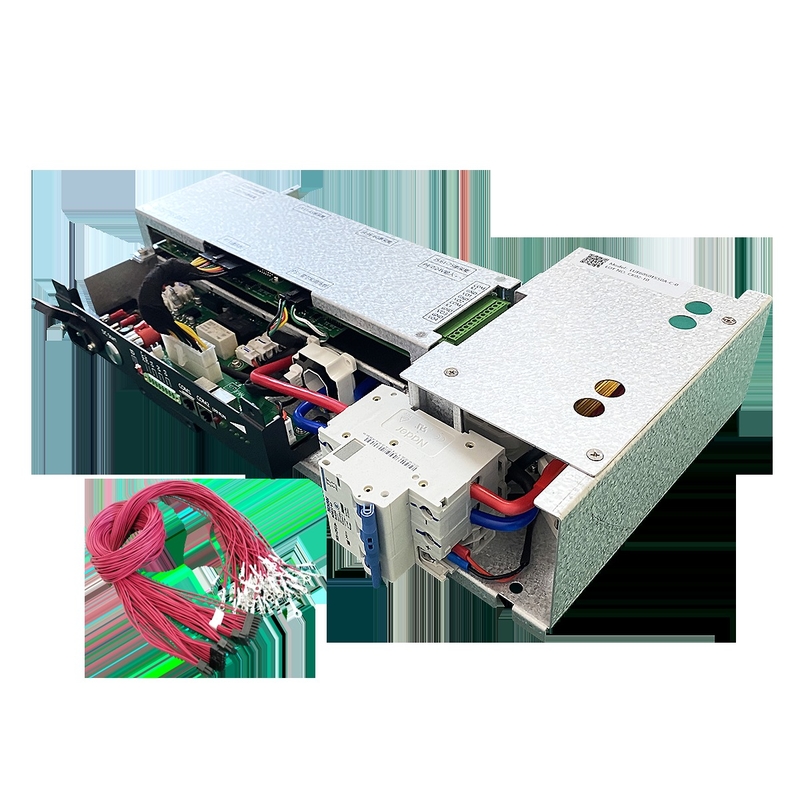

192V 100A Integrated BMS with RS485 CAN for Solar Storage

Name: 192V 100A Integrated BMS with RS485 CAN for Solar Storage
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S60S100A
Price: 556.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan, China

Brand Name: GCE

Model Number: RBMS07S60S100A

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: $542-571

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                192V 100A integrated BMS, solar storage BMS with RS485, BMS with CAN communication


Dimension:	2U	Rack Configuration:	Standalone Or Parallel
Voltage:	240V	Current:	100A
Weight:	5.3KG	Battery Type:	LFP, NCM, LTO
System Voltage Range:	120 - 228 V DC	Startup Mode:	DC Start (optional AC And DC Starter)
Number Of Battery Strings:	75 S（5 X 15 S）	Balanced Current:	100mA ± 10mA(Single Cell 3.4V）
Temperature Sampling Accuracy:	± 2℃	Voltage Sampling Accuracy:	Single Cell ±20mV
Hall Sensor Specifications:	50A/100A	Maximum Load:	Steady-state：100A, Transient State：150A/10S（ Adjustable）
Operating Temperature:	Charging : －10～75℃, Discharging : -20 To 75℃, Storage : -40 To +75℃

Dimension:	2U
Rack Configuration:	Standalone Or Parallel
Voltage:	240V
Current:	100A
Weight:	5.3KG
Battery Type:	LFP, NCM, LTO
System Voltage Range:	120 - 228 V DC
Startup Mode:	DC Start (optional AC And DC Starter)
Number Of Battery Strings:	75 S（5 X 15 S）
Balanced Current:	100mA ± 10mA(Single Cell 3.4V）
Temperature Sampling Accuracy:	± 2℃
Voltage Sampling Accuracy:	Single Cell ±20mV
Hall Sensor Specifications:	50A/100A
Maximum Load:	Steady-state：100A, Transient State：150A/10S（ Adjustable）
Operating Temperature:	Charging : －10～75℃, Discharging : -20 To 75℃, Storage : -40 To +75℃

192V 100A Integrated BMS with RS485 CAN for Solar Storage

GCE 192V 100A DC Integrated BMS for Solar Power Storage Systems

Product Overview

The GCE 192V 100A DC Integrated BMS is a high-performance battery management solution designed for solar power storage systems, UPS, and BESS applications. This compact unit combines advanced monitoring and protection features with multiple communication protocols.

Key Specifications

Model Number	RBMS07S60S100A
System Voltage Range	120 - 228 V DC
Startup Mode	DC start (optional AC and DC starter)
Number of Battery Strings	75 S (5 x 15 S)
Balance Type	Passive resistance equalization Balanced current: 100mA ± 10mA (Single cell 3.4V)
Temperature Sampling	12 Battery temperature sensors (4x3) Accuracy: ± 2℃
Voltage Sampling Accuracy	Single cell ±20mV
Communication Protocols	CAN: 1 channel (communication with PCs/UPS) RS485: 1 channel (communication with upper computer/PCS/UPS) Bluetooth: optional (android app available) GPRS: optional
Maximum Load	Steady-state: 100A Transient state: 150A/10S (Adjustable)
Operating Temperature	Charging: -10°C to 75°C Discharging: -20°C to 75°C Storage: -40°C to +75°C

Product Features

Highly integrated design with minimal installation space requirements
Long life cycle (>3000 times at 80% DOD)
Environmentally friendly with no heavy metals
Maintenance free with no memory effect
Internal BMS provides full protection including high voltage protection
Compact dimensions: 410mm(W) × 232mm(H) × 128mm(D)

Applications

Ideal for solar power storage systems, UPS backup solutions, and battery energy storage systems (BESS).

Company Profile

Hunan Group Control Energy Technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. Our high-performance intelligent lithium battery management systems use international leading technology to improve battery management efficiency and extend lithium battery service life.

Our advanced BMS control strategy overcomes the difficulties and instability faced by most competitors. Our product range includes 4S to 24S low voltage software BMS with rich interfaces and strong scalability, 30S to 75S BMS with master-slave integrated design and relay solutions, and 60S-270S systems with master-slave three-level architecture for high-capacity lithium batteries up to 1000V.
