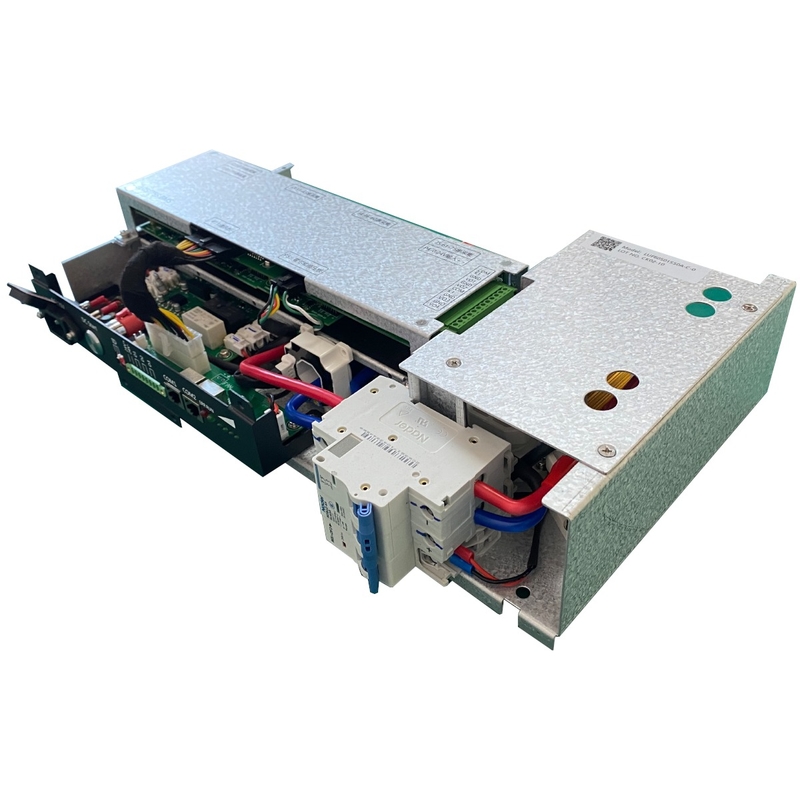

240V 50A Battery Management System BMS for Solar UPS ESS

Name: 240V 50A Battery Management System BMS for Solar UPS ESS
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S75S50A
Price: 556.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan, China

Brand Name: GCE

Certification: CE/RoHS/UN38.3/MSDS

Model Number: RBMS07S75S50A

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: $542-571

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                240V 50A BMS for solar, Battery Management System for UPS, ESS BMS with warranty


Voltage:	240V	Current:	50A
Strings:	30s-75s	Communication:	CAN, RS485
Size:	410232128mm	Battery Type:	LFP, NCM, LTO
System Voltage Range:	120 - 228 V DC	Number Of Strings:	75 S（5 X 15 S）
Balance Current:	100mA ± 10mA(Single Cell 3.4V）	Temperature Sampling:	12 Battery Temperature(4*3)
Temperature Accuracy:	± 2℃	Voltage Accuracy:	Single Cell ±20mV
Hall Sensor:	50A/100A	Maximum Load:	Steady-state：100A, Transient State：150A/10S
Operating Temperature:	Charging : －10～75℃, Discharging : -20 To 75℃, Storage : -40 To +75℃

Voltage:	240V
Current:	50A
Strings:	30s-75s
Communication:	CAN, RS485
Size:	410232128mm
Battery Type:	LFP, NCM, LTO
System Voltage Range:	120 - 228 V DC
Number Of Strings:	75 S（5 X 15 S）
Balance Current:	100mA ± 10mA(Single Cell 3.4V）
Temperature Sampling:	12 Battery Temperature(4*3)
Temperature Accuracy:	± 2℃
Voltage Accuracy:	Single Cell ±20mV
Hall Sensor:	50A/100A
Maximum Load:	Steady-state：100A, Transient State：150A/10S
Operating Temperature:	Charging : －10～75℃, Discharging : -20 To 75℃, Storage : -40 To +75℃

240V 50A Battery Management System BMS for Solar UPS ESS

240V75Series 50A Battery Management System for UPS/BESS Applications

Advanced Battery Management Technology

Our high voltage BMS solution enables efficient management of multiple cell strings (8S to 24S configurations) to create scalable battery modules. These modules can be combined in series and parallel configurations to create battery systems ranging from 100kWh to 1GWh+ capacity.

GCE's 3-level BMS architecture features:

BMU (slave BMS) integrated into each battery module
Cascade connection via isolated CAN bus to RBMS (rack BMS/master BMS)
Comprehensive voltage and temperature monitoring for each cell
Advanced balancing through fan control or resistance balancing
Flexible ID configuration via dial switches
Network-based parallel connection capability
Stack BMS for system-wide data aggregation

Technical Specifications

Product Name	Integrated BMS
Model No.	RBMS07S75S50A
System Voltage Range	120 - 228 V DC
Startup Mode	DC start (optional AC and DC starter)
Number of Battery Strings	75 S (5 x 15 S)
Balance Type	Passive resistance equalization
Balanced Current	100mA ± 10mA (Single cell 3.4V)
Temperature Sampling	12 Battery temperature (4*3), Accuracy: ±2℃
Voltage Sampling Accuracy	Single cell ±20mV
Communication Protocols	CAN, RS485, Bluetooth (optional), GPRS (optional), Dry Contact
Maximum Load	Steady-state: 100A, Transient state: 150A/10S (Adjustable)
Operating Temperature	Charging: -10 to 75℃, Discharging: -20 to 75℃, Storage: -40 to +75℃

Key Features:

High integration with minimal installation space requirements
Long life cycle (>3000 cycles at 80% DOD)
Environmentally friendly (no heavy metals)
Maintenance-free operation with no memory effect
Comprehensive internal protection with high reliability

System Images

Applications

About GCE

Hunan Group Control Energy Technology Co., Ltd. (GCE) is a high-tech company specializing in BMS and lithium battery peripheral equipment development. Our intelligent lithium battery management systems utilize leading international technology to enhance battery efficiency and lifespan.

Certifications

Production & Shipping
