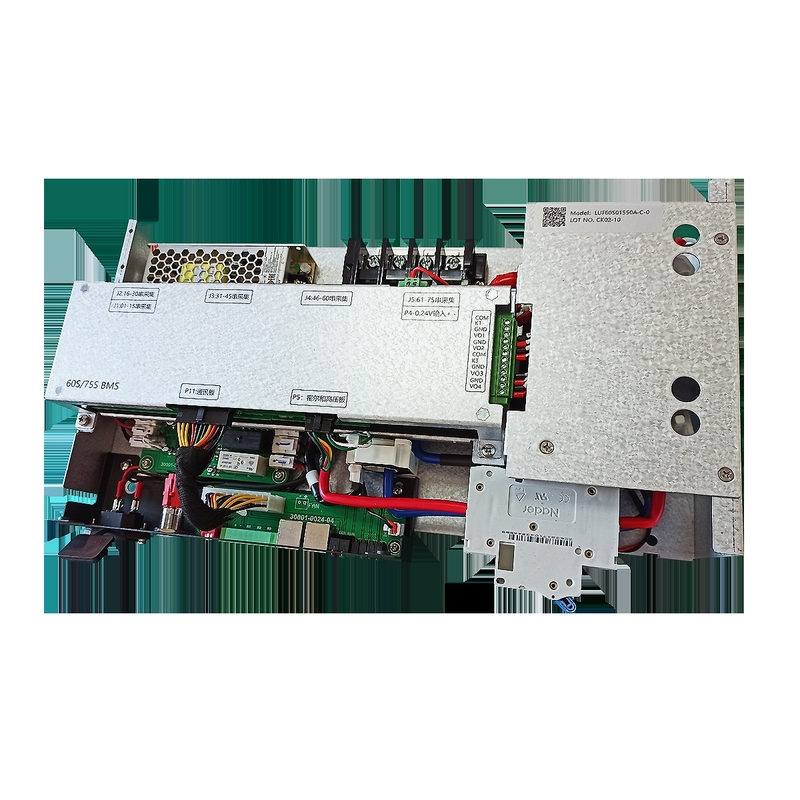

30S 96V 100A BMS for Lifepo4 NMC LTO Battery Energy Storage

Name: 30S 96V 100A BMS for Lifepo4 NMC LTO Battery Energy Storage
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S30S100A, RBMS07S30S100A
Price: 555 USD
Availability: InStock

Product Details

Place of Origin: Hunan, China

Brand Name: GCE

Model Number: RBMS07S30S100A, RBMS07S30S100A

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: $555

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                30S 96V BMS for Lifepo4 battery, 100A BMS for energy storage, BMS for NMC LTO battery


Voltage Range:	96V-240V	Current:	50A / 100A
System Voltage:	120 - 228 V DC	Startup Mode:	DC Start (optional AC And DC Starter)
Battery Strings:	30 S（2 X 15 S）	Balance Type:	Passive Resistance Equalization
Balanced Current:	100mA ± 10mA(Single Cell 3.4V)	Temperature Sampling:	12 Battery Temperature(4*3)
Sampling Accuracy:	± 2℃	Voltage Accuracy:	Single Cell ±20mV
Communication Mode:	CAN: 1 Channel, RS485: 1 Channel, Bluetooth: Optional, GPRS: Optional	Hall Sensor:	50A/100A
Maximum Load:	Steady-state：100A, Transient State：150A/10S（Adjustable）	Operating Temperature:	Charging: －10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃
Dimensions:	W410H232D128cm

Voltage Range:	96V-240V
Current:	50A / 100A
System Voltage:	120 - 228 V DC
Startup Mode:	DC Start (optional AC And DC Starter)
Battery Strings:	30 S（2 X 15 S）
Balance Type:	Passive Resistance Equalization
Balanced Current:	100mA ± 10mA(Single Cell 3.4V)
Temperature Sampling:	12 Battery Temperature(4*3)
Sampling Accuracy:	± 2℃
Voltage Accuracy:	Single Cell ±20mV
Communication Mode:	CAN: 1 Channel, RS485: 1 Channel, Bluetooth: Optional, GPRS: Optional
Hall Sensor:	50A/100A
Maximum Load:	Steady-state：100A, Transient State：150A/10S（Adjustable）
Operating Temperature:	Charging: －10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃
Dimensions:	W410H232D128cm

30S 96V 100A BMS for Lifepo4 NMC LTO Battery Energy Storage

BMS 30S 96V 100A Lifepo4 NMC LTO Battery

Developed for large-scale high-voltage battery energy storage systems

Key Specifications

Model: RBMS07S30S100A

System voltage range: 120 - 228 V DC

Communication protocol: CAN, RS485, Bluetooth, GPRS, Dry Contact

Design: Master & Slave all in one

Dimensions: W410 × H232 × D128cm

Unique Design

The latest product developed by GCE, unique in the market with master-slave integrated design.

Compatibility

Integrated BMS supports 30S-75S lithium battery packs, ideal for multiple strings of small capacity batteries less than 100Ah.

Technical Specifications

Product Name	Integrated BMS (master slave together in one)
Model no.	RBMS07S30S100A
System voltage range	120 - 228 V DC
Startup mode	DC start (optional AC and DC starter)
Number of battery strings	30 S (2 × 15 S)
Balance type	Passive resistance equalization
Balanced current	100mA ± 10mA (Single cell 3.4V)
Temperature Sampling	12 Battery temperature (4×3), Accuracy: ±2℃
Voltage Sampling	Single cell ±20mV
Communication mode	CAN: 1 channel (communication with PCs/UPS) RS485: 1 channel (communication with upper computer/PCS/UPS) Bluetooth: optional (android app available) GPRS: optional
Operating Temperature	Charging: -10°C to 75°C Discharging: -20°C to 75°C Storage: -40°C to +75°C

Product Features

Highly integrated design with minimal installation space requirements
Long life cycle: >3000 times at 80% DOD
Environmentally friendly: Contains no heavy metals
Maintenance free with no memory effect
Internal BMS with full protection including high voltage protection
Master and Slave functionality integrated in one unit

Applications

Company Profile

Hunan Group Control Energy Technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. Our high-performance intelligent lithium battery management system adopts international leading technology, improving battery management efficiency and prolonging lithium battery service life.
