GCE 75S 240V 100A Lifepo4 Battery BMS for Solar Energy Storage

Name: GCE 75S 240V 100A Lifepo4 Battery BMS for Solar Energy Storage
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S75S100A, RBMS07S75S100A
Price: 795 USD
Availability: InStock

Product Details

Place of Origin: Hunan, China

Brand Name: GCE

Model Number: RBMS07S75S100A, RBMS07S75S100A

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: $795

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Lifepo4 battery BMS for solar, 240V 100A battery management system, Integrated BMS for energy storage


Battery Type:	Lifepo4/lithium Battery	Communication Protocol:	CAN, RS485, Bluetooth, GPRS, Dry Contact
System Voltage Range:	120 - 228 V DC	Startup Mode:	DC Start (optional AC And DC Starter)
Number Of Strings:	75 S (5 X 15 S)	Balance Type:	Passive Resistance Equalization
Balanced Current:	100mA ± 10mA (Single Cell 3.4V)	Temperature Sampling:	12 Battery Temperature (4*3)
Sampling Accuracy:	± 2℃	Voltage Accuracy:	Single Cell ±20mV
Hall Sensor:	50A/100A	Maximum Load:	Steady-state: 100A, Transient State: 150A/10S (Adjustable)
Operating Temperature:	Charging: -10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃	Dimensions:	W410H232D128cm
SOC Accuracy:	≤5%

Battery Type:	Lifepo4/lithium Battery
Communication Protocol:	CAN, RS485, Bluetooth, GPRS, Dry Contact
System Voltage Range:	120 - 228 V DC
Startup Mode:	DC Start (optional AC And DC Starter)
Number Of Strings:	75 S (5 X 15 S)
Balance Type:	Passive Resistance Equalization
Balanced Current:	100mA ± 10mA (Single Cell 3.4V)
Temperature Sampling:	12 Battery Temperature (4*3)
Sampling Accuracy:	± 2℃
Voltage Accuracy:	Single Cell ±20mV
Hall Sensor:	50A/100A
Maximum Load:	Steady-state: 100A, Transient State: 150A/10S (Adjustable)
Operating Temperature:	Charging: -10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃
Dimensions:	W410H232D128cm
SOC Accuracy:	≤5%

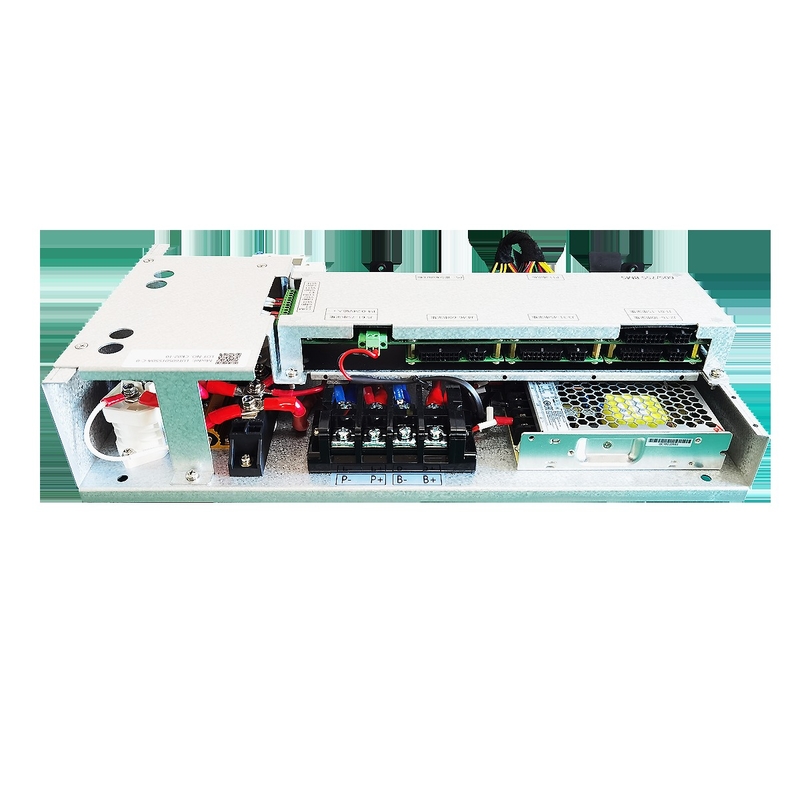

GCE 75S 240V 100A Lifepo4 Battery BMS for Solar Energy Storage

GCE Integrated BMS 75S 240V 100A Lifepo4 Battery BMS

High-performance battery management system for home energy storage systems, UPS, and solar energy storage applications.

Key Specifications

Product Name	Integrated BMS (master slave together in one)
Model No.	RBMS07S75S100A
System Voltage Range	120 - 228 V DC
Number of Battery Strings	75 S (5 x 15 S)
Balance Type	Passive resistance equalization
Communication Protocol	CAN, RS485, Bluetooth, GPRS, Dry Contact
Maximum Load	Steady-state: 100A Transient state: 150A/10S (Adjustable)
Operating Temperature	Charging: -10°C to 75°C Discharging: -20°C to 75°C Storage: -40°C to +75°C

Product Features

High integration with minimal installation space requirements
Long life cycle (>3000 times at 80% DOD)
Environmentally friendly (no heavy metals)
Maintenance free with no memory effect
Internal BMS with full protection features
Master and Slave all in one design

Unique Design

The latest product developed by GCE, featuring a unique market design that supports 30S-75S lithium battery packs.

Applications

Ideal for home energy storage systems, UPS, and solar energy storage applications.

Company Profile

Hunan Group Control Energy Technology Co., Ltd. (GCE) is a high-tech company specializing in BMS and lithium battery peripheral equipment research and development. Our intelligent lithium battery management system adopts international leading technology to improve battery management efficiency and prolong service life.
