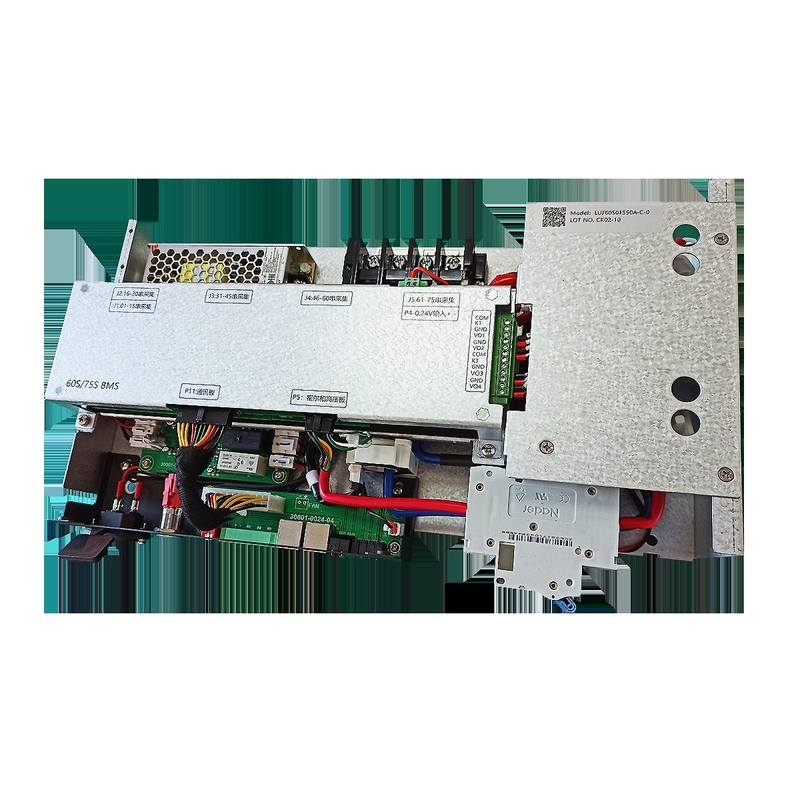

GCE 32S 102.4V 50A Integrated BMS for Lifepo4 Battery Storage

Name: GCE 32S 102.4V 50A Integrated BMS for Lifepo4 Battery Storage
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S32S50A, RBMS07S32S50A
Price: 645 USD
Availability: InStock

Product Details

Place of Origin: Hunan, China

Brand Name: GCE

Model Number: RBMS07S32S50A, RBMS07S32S50A

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: $645

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Lifepo4 battery storage BMS, 102.4V integrated BMS, 50A battery management system


Voltage:	102.4V	Current:	50Amp
Size:	W410H232D128cm	System Voltage Range:	120 - 228 V DC
Startup Mode:	DC Start (optional AC And DC Starter)	Number Of Battery Strings:	60 S（4 X 15 S）
Balance Type:	Passive Resistance Equalization	Balanced Current:	100mA ± 10mA(Single Cell 3.4V)
Temperature Sampling:	12 Battery Temperature(4*3)	Sampling Accuracy:	± 2℃
Voltage Sampling Accuracy:	Single Cell ±20mV	Communication Mode:	CAN, RS485, Bluetooth, GPRS
Hall Sensor Specifications:	50A/100A	Maximum Load:	Steady-state：100A, Transient State：150A/10S（Adjustable）
Operating Temperature:	Charging : －10～75℃, Discharging : -20 To 75℃, Storage : -40 To +75℃

Voltage:	102.4V
Current:	50Amp
Size:	W410H232D128cm
System Voltage Range:	120 - 228 V DC
Startup Mode:	DC Start (optional AC And DC Starter)
Number Of Battery Strings:	60 S（4 X 15 S）
Balance Type:	Passive Resistance Equalization
Balanced Current:	100mA ± 10mA(Single Cell 3.4V)
Temperature Sampling:	12 Battery Temperature(4*3)
Sampling Accuracy:	± 2℃
Voltage Sampling Accuracy:	Single Cell ±20mV
Communication Mode:	CAN, RS485, Bluetooth, GPRS
Hall Sensor Specifications:	50A/100A
Maximum Load:	Steady-state：100A, Transient State：150A/10S（Adjustable）
Operating Temperature:	Charging : －10～75℃, Discharging : -20 To 75℃, Storage : -40 To +75℃

GCE 32S 102.4V 50A Integrated BMS for Lifepo4 Battery Storage

GCE Integrated BMS 32S 102.4V 50A Lifepo4 Battery

Developed for Large-scale High-voltage Battery Energy Storage Systems

Key Specifications

32S 50Amp

Communication Protocol:

CAN, RS485, Bluetooth, GPRS, Dry Contact

Design: Master & Slave all in one

Efficient, stable and reliable

Dimensions: W410 × H232 × D128cm

Unique Design

The latest product developed by GCE, unique in the market.

Compatibility

Integrated BMS supports 30S-75S lithium battery packs.

30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries less than 100Ah, greatly reducing user costs.

Technical Specifications

Product Name	Integrated BMS (master slave together in one)
Model no.	RBMS07S32S50A
System voltage range	120 - 228 V DC
Startup mode	DC start (optional AC and DC starter)
Number of battery strings	60 S（4 x 15 S）
Balance	Balance type: Passive resistance equalization Balanced current: 100mA ± 10mA (Single cell 3.4V)
Temperature Sampling	Numbers: 12 Battery temperature(4*3) Sampling accuracy: ± 2℃
Voltage Sampling	Sampling accuracy: Single cell ±20mV
SOC	≤5%
Communication mode	CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional
Display mode	6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication HMI display: optional
Hall sensor specifications	50A/100A
Maximum load of power components	Steady-state：100A transient state：150A/10S（ Adjustable）
Alarm level	1 Level
Protection level	2 two levels Level 1 cut off charge / discharge Level 2 micro cut-off switch, system power down
Operating Temperature	Charging : －10～75℃ Discharging : -20 to 75℃ Storage : -40 to +75℃

Product Features

High integration with minimal installation space

Long life cycle (>3000 times at 80% DOD)

Environmentally friendly (no heavy metals)

Maintenance free with no memory effect

Internal BMS with full protection and high reliability

Master and Slave all in one design

Applications

Company Profile

Hunan Group Control Energy Technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. Our high-performance intelligent lithium battery management system adopts international leading technology, improving battery management efficiency and prolonging lithium battery service life.

Certification

Production Line

Packing & Shipping
