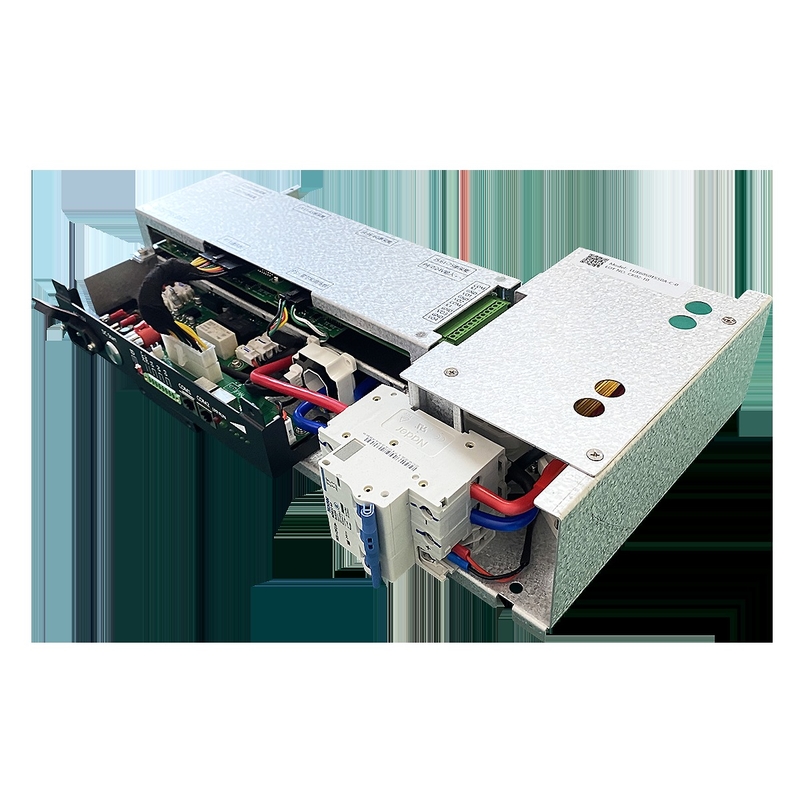

GCE 60S 192V 100A Integrated BMS for Solar UPS Energy Storage

Name: GCE 60S 192V 100A Integrated BMS for Solar UPS Energy Storage
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S60S100A
Price: 556.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan, China

Brand Name: GCE

Model Number: RBMS07S60S100A

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: $542-571

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Integrated BMS for solar UPS, 192V 100A energy storage BMS, GCE 60S solar battery management


Battery Type:	LFP/NMC/LTO	Voltage Range:	120 - 228 V DC
Number Of Strings:	60 S (4 X 15 S)	Balance Type:	Passive Resistance Equalization
Balance Current:	100mA ± 10mA	Temperature Sampling:	12 Battery Temperature (4*3)
Sampling Accuracy:	± 2℃	Voltage Accuracy:	Single Cell ±20mV
Communication Protocol:	CAN, RS485, Bluetooth, GPRS, Dry Contact	Hall Sensor:	50A/100A
Maximum Load:	Steady-state: 100A, Transient State: 150A/10S	Operating Temperature:	Charging: -10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃
Dimensions:	W410H232D128cm	Life Cycle:	>3000 Times At 80% DOD
SOC Accuracy:	≤5%

Battery Type:	LFP/NMC/LTO
Voltage Range:	120 - 228 V DC
Number Of Strings:	60 S (4 X 15 S)
Balance Type:	Passive Resistance Equalization
Balance Current:	100mA ± 10mA
Temperature Sampling:	12 Battery Temperature (4*3)
Sampling Accuracy:	± 2℃
Voltage Accuracy:	Single Cell ±20mV
Communication Protocol:	CAN, RS485, Bluetooth, GPRS, Dry Contact
Hall Sensor:	50A/100A
Maximum Load:	Steady-state: 100A, Transient State: 150A/10S
Operating Temperature:	Charging: -10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃
Dimensions:	W410H232D128cm
Life Cycle:	>3000 Times At 80% DOD
SOC Accuracy:	≤5%

GCE 60S 192V 100A Integrated BMS for Solar UPS Energy Storage

GCE 60S 192V 100A Integrated BMS for Off Grid Home Solar LFP Power Solution Battery Storage System UPS Lithium Ion Batteries

Key Specifications

60S 100Amp integrated BMS with multiple communication protocols: CAN, RS485, Bluetooth, GPRS, Dry Contact

Product Features

Master & Slave all in one design
Efficient, stable and reliable performance
Compact dimensions: W410 × H232 × D128cm
Latest unique design developed by GCE
Supports 30S-75S lithium battery packs

Technical Specifications

Product Name	Integrated BMS (master slave together in one)
Model no.	RBMS07S60S100A
System voltage range	120 - 228 V DC
Startup mode	DC start (optional AC and DC starter)
Number of battery strings	60 S（4 x 15 S）
Balance	Passive resistance equalization Balanced current: 100mA ± 10mA (Single cell 3.4V)
Temperature Sampling	12 Battery temperature(4*3) Sampling accuracy: ± 2℃
Voltage Sampling	Single cell ±20mV
Communication mode	CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional
Operating Temperature	Charging: －10～75℃ Discharging: -20 to 75℃ Storage: -40 to +75℃

Advanced Product Features

High integration with minimal installation space requirements
Long life cycle (>3000 times at 80% DOD)
Environmentally friendly with no heavy metals
Maintenance free with no memory effect
Internal BMS with full protection including high voltage protection
Master and Slave all in one design

Applications

Company Profile

Hunan Group Control Energy Technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. Our high-performance intelligent lithium battery management system adopts international leading technology, improving battery management efficiency and prolonging lithium battery service life. Our advanced BMS control strategy overcomes difficulties faced by competitors.

Certifications

Production Line

Packing & Shipping
