Product Details
Place of Origin: Hunan, China
Brand Name: GCE
Model Number: RBMS07S75S100A
Payment & Shipping Terms
Minimum Order Quantity: 2
Price: $558-587
|
Weight:
|
6.9kg
|
Size:
|
W410*H232*D128mm
|
Voltage Range:
|
0-288V
|
Battery Type:
|
LFP NMC LTO
|
Communication Protocol:
|
CAN, RS485, Bluetooth, GPRS, Dry Contact
|
System Voltage Range:
|
0 - 228 V DC
|
Number Of Strings:
|
75 S（5 X 15 S）
|
Balance Current:
|
100mA ± 10mA
|
Temperature Sampling:
|
12 Battery Temperature(4*3)
|
Temperature Accuracy:
|
± 2℃
|
Voltage Accuracy:
|
Single Cell ±20mV
|
Maximum Load:
|
Steady-state：100A, Transient State：150A/10S
|
Operating Temperature:
|
Charging : －10～75℃, Discharging : -20 To 75℃, Storage : -40 To +75℃
|
Hall Sensor:
|
50A/100A
|
Life Cycle:
|
>3000 Times At 80% DOD
|
|
Weight:
|
6.9kg
|
|
Size:
|
W410*H232*D128mm
|
|
Voltage Range:
|
0-288V
|
|
Battery Type:
|
LFP NMC LTO
|
|
Communication Protocol:
|
CAN, RS485, Bluetooth, GPRS, Dry Contact
|
|
System Voltage Range:
|
0 - 228 V DC
|
|
Number Of Strings:
|
75 S（5 X 15 S）
|
|
Balance Current:
|
100mA ± 10mA
|
|
Temperature Sampling:
|
12 Battery Temperature(4*3)
|
|
Temperature Accuracy:
|
± 2℃
|
|
Voltage Accuracy:
|
Single Cell ±20mV
|
|
Maximum Load:
|
Steady-state：100A, Transient State：150A/10S
|
|
Operating Temperature:
|
Charging : －10～75℃, Discharging : -20 To 75℃, Storage : -40 To +75℃
|
|
Hall Sensor:
|
50A/100A
|
|
Life Cycle:
|
>3000 Times At 80% DOD
|

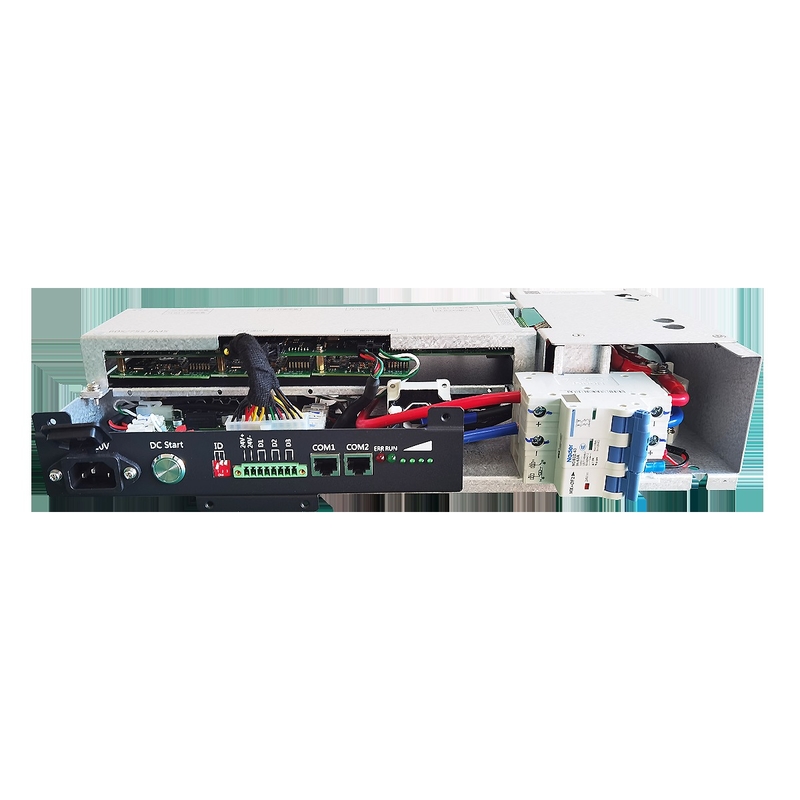

| Product Name | Integrated BMS (master slave together in one) |
|---|---|
| Model no. | RBMS07S75S100A |
| System voltage range | 0 - 228 V DC |
| Startup mode | DC start (optional AC and DC starter) |
| Number of battery strings | 75 S（5 x 15 S） |
| Balance |
Balance type: Passive resistance equalization Balanced current: 100mA ± 10mA (Single cell 3.4V) |
| Temperature Sampling |
Numbers: 12 Battery temperature (4*3) Sampling accuracy: ± 2℃ |
| Voltage Sampling | Single cell ±20mV |
| SOC | ≤5% |
| Communication mode |
CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional |
| Display mode |
6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication HMI display: optional |
| Hall sensor specifications | 50A/100A |
| Maximum load of power components |
Steady-state：100A transient state：150A/10S（Adjustable） |
| Alarm level | 1 Level |
| Protection level |
2 two levels Level 1 cut off charge / discharge Level 2 micro cut-off switch, system power down |
| Operating Temperature |
Charging: －10～75℃ Discharging: -20 to 75℃ Storage: -40 to +75℃ |
