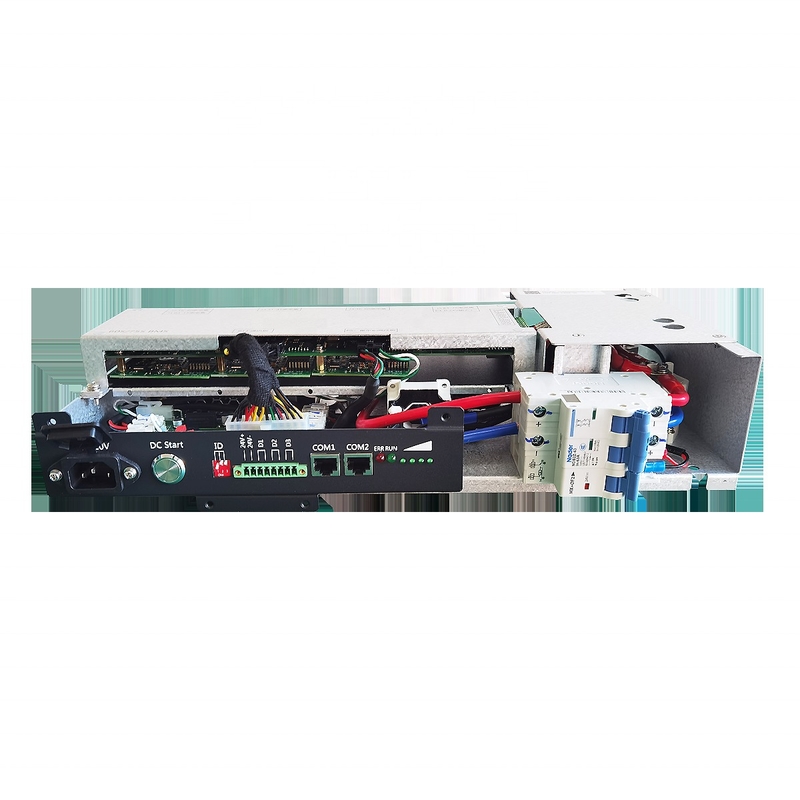

GCE 75S 50A Integrated BMS for 30S-75S Lithium Battery Packs

Product Details

Place of Origin: Hunan, China

Brand Name: GCE

Model Number: 75S

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $528-587

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                GCE 75S 50A integrated BMS, 30S-75S lithium battery BMS, integrated BMS with warranty


Battery Type:	LFP NMC LTO	Weight:	8kg
Size:	W410H232D128cm	System Voltage:	0 - 240 V DC
Startup Mode:	DC Start	Battery Strings:	75 S (5 X 15 S)
Balance Type:	Passive Resistance Equalization	Balance Current:	100mA ± 10mA (Single Cell 3.4V)
Temperature Sampling:	12 Battery Temperature (4*3)	Sampling Accuracy:	± 2℃
Voltage Accuracy:	Single Cell ±20mV	Communication Protocol:	CAN, RS485, Bluetooth, GPRS, Dry Contact
Hall Sensor:	50A/100A	Maximum Load:	Steady-state: 100A, Transient State: 150A/10S
Operating Temperature:	Charging: -10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃

Battery Type:	LFP NMC LTO
Weight:	8kg
Size:	W410H232D128cm
System Voltage:	0 - 240 V DC
Startup Mode:	DC Start
Battery Strings:	75 S (5 X 15 S)
Balance Type:	Passive Resistance Equalization
Balance Current:	100mA ± 10mA (Single Cell 3.4V)
Temperature Sampling:	12 Battery Temperature (4*3)
Sampling Accuracy:	± 2℃
Voltage Accuracy:	Single Cell ±20mV
Communication Protocol:	CAN, RS485, Bluetooth, GPRS, Dry Contact
Hall Sensor:	50A/100A
Maximum Load:	Steady-state: 100A, Transient State: 150A/10S
Operating Temperature:	Charging: -10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃

GCE 75S 50A Integrated BMS for 30S-75S Lithium Battery Packs

GCE 75S 240V 50A Battery Management Systems

Products Developed for Large-scale High-voltage Battery Energy Storage Systems

75S 50Amp

Communication protocol: CAN, RS485, Bluetooth, GPRS, Dry Contact

Design: Master & Slave all in one
Efficient, stable and reliable
Size: W410*H232*D128cm

Unique Design

It is the latest product developed by GCE and it's unique in the market.

For 30S-75S Lithium Battery Packs

Integrated BMS supports 30S-75S lithium battery packs.

30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries less than 100Ah. It greatly reduce the cost of users.

Specification

Product Name	Integrated BMS (master slave together in one)
Model no.	RBMS07S75S50A
System voltage range	0 - 240 V DC
Startup mode	DC start (optional AC and DC starter)
Number of battery strings	75 S（5 x 15 S）
Balance	Balance type: Passive resistance equalization Balanced current: 100mA ± 10mA (Single cell 3.4V)
Temperature Sampling	Numbers: 12 Battery temperature (4*3) Sampling accuracy: ± 2℃
Voltage Sampling	Sampling accuracy: Single cell ±20mV
SOC	≤5%
Communication mode	CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional
Display mode	6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication HMI display: optional
Hall sensor specifications	50A/100A
Maximum load of power components	Steady-state：100A transient state：150A/10S（ Adjustable）
Alarm level	1 Level
Protection level	2 two levels Level 1 cut off charge / discharge Level 2 micro cut-off switch, system power down
Operating Temperature	Charging : －10～75℃ Discharging : -20 to 75℃ Storage : -40 to +75℃

Product Features

High integrated with less installation space
Long life cycle, >3000 times at 80% DOD
Without heavy metals and environment friendly
Maintenance free, there is no memory effect
Internal BMS with full protection, battery has high voltage protection with higher reliability
Master and Slave all in one

Application

Company Profile

Hunan Group Control Energy Technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.
