Product Details
Place of Origin: Hunan, China
Brand Name: GCE
Model Number: RBMS0760S50A
Payment & Shipping Terms
Minimum Order Quantity: 2
Price: $468-540
|
Voltage Range:
|
0-192V DC
|
Current:
|
50A
|
Balance Type:
|
Passive Resistance Equalization
|
Balance Current:
|
100mA ± 10mA
|
Temperature Sampling:
|
12 Battery Temperature
|
Sampling Accuracy:
|
± 2℃
|
Voltage Accuracy:
|
Single Cell ±20mV
|
Communication Modes:
|
CAN, RS485, Bluetooth, GPRS
|
Hall Sensor:
|
50A/100A
|
Maximum Load:
|
Steady-state: 100A, Transient: 150A/10S
|
Operating Temperature:
|
Charging: -10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃
|
Number Of Strings:
|
60S (4 X 15S)
|
Dimensions:
|
W410 X H232 X D128cm
|
Protection Level:
|
2 Levels
|
SOC Accuracy:
|
≤5%
|
|
Voltage Range:
|
0-192V DC
|
|
Current:
|
50A
|
|
Balance Type:
|
Passive Resistance Equalization
|
|
Balance Current:
|
100mA ± 10mA
|
|
Temperature Sampling:
|
12 Battery Temperature
|
|
Sampling Accuracy:
|
± 2℃
|
|
Voltage Accuracy:
|
Single Cell ±20mV
|
|
Communication Modes:
|
CAN, RS485, Bluetooth, GPRS
|
|
Hall Sensor:
|
50A/100A
|
|
Maximum Load:
|
Steady-state: 100A, Transient: 150A/10S
|
|
Operating Temperature:
|
Charging: -10～75℃, Discharging: -20 To 75℃, Storage: -40 To +75℃
|
|
Number Of Strings:
|
60S (4 X 15S)
|
|
Dimensions:
|
W410 X H232 X D128cm
|
|
Protection Level:
|
2 Levels
|
|
SOC Accuracy:
|
≤5%
|

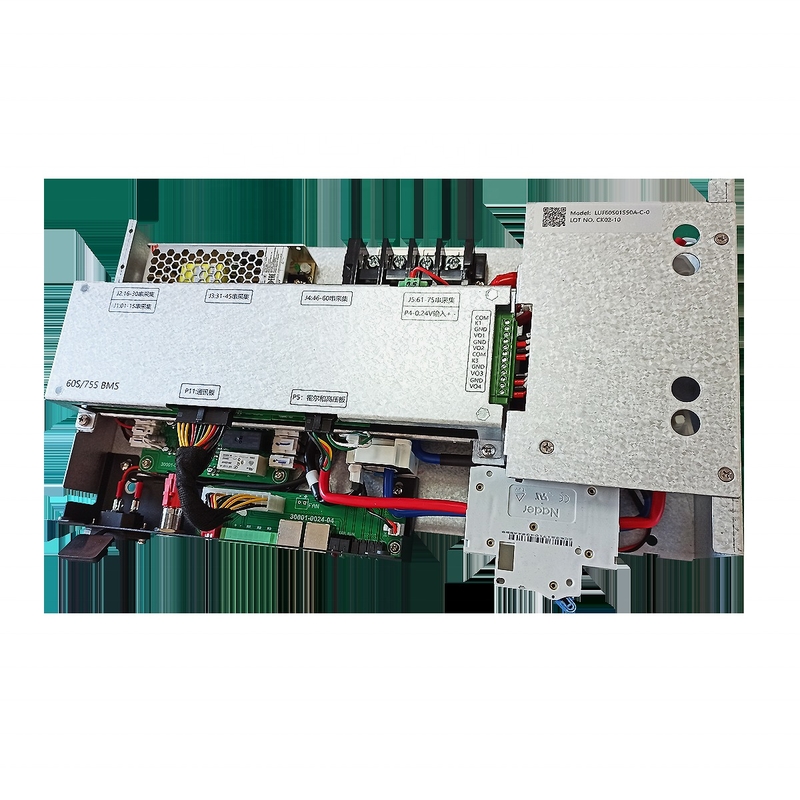

| Product Name | Integrated BMS (master slave together in one) |
|---|---|
| Model no. | RBMS07S60S50A |
| System voltage range | 0 - 192 V DC |
| Startup mode | DC start (optional AC and DC starter) |
| Number of battery strings | 60 S (4 x 15 S) |
| Balance |
Balance type: Passive resistance equalization
Balanced current: 100mA ± 10mA (Single cell 3.4V)
|
| Temperature Sampling |
Numbers: 12 Battery temperature (4×3)
Sampling accuracy: ± 2℃
|
| Voltage Sampling | Sampling accuracy: Single cell ±20mV |
| SOC | ≤5% |
| Communication mode |
CAN: 1 channel (communication with PCs / UPS)
RS485: 1 channel (communication with upper computer / PCS / UPS)
Bluetooth: optional (android app available)
GPRS: optional
|
| Display mode |
6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication
HMI display: optional
|
| Hall sensor specifications | 50A/100A |
| Maximum load of power components |
Steady-state: 100A
Transient state: 150A/10S (Adjustable)
|
| Alarm level | 1 Level |
| Protection level |
2 two levels
Level 1 cut off charge / discharge
Level 2 micro cut-off switch, system power down
|
| Operating Temperature |
Charging: －10～75℃
Discharging: -20 to 75℃
Storage: -40 to +75℃
|
