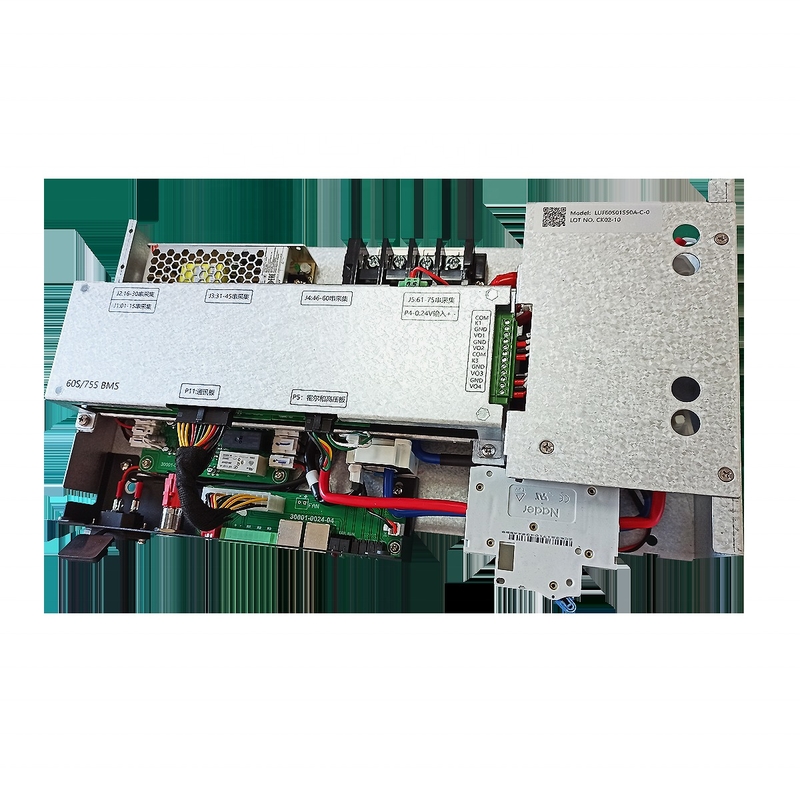

GCE 64S 100A BMS for Solar Energy Storage Systems

Name: GCE 64S 100A BMS for Solar Energy Storage Systems
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S64S100A
Price: 572.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan, China

Brand Name: GCE

Model Number: RBMS07S64S100A

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: $558-587

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                            100A BMS for solar storage, GCE 64S battery management system, integrated BMS with warranty


Battery Type:	LFP NCM LTO	Current Range:	-100--100A
Communication Interface:	CAN, RS485	Number Of Strings:	64s
System Voltage Range:	120 - 228 V DC	Startup Mode:	DC Start (optional AC And DC Starter)
Balance Type:	Passive Resistance Equalization	Balanced Current:	100mA ± 10mA(Single Cell 3.4V)
Temperature Sampling:	12 Battery Temperature(4*3)	Temperature Accuracy:	± 2℃
Voltage Accuracy:	Single Cell ±20mV	SOC:	≤5%
Hall Sensor:	50A/100A	Maximum Load:	Steady-state：100A, Transient State：150A/10S（Adjustable）
Operating Temperature:	Charging : －10～75℃, Discharging : -20 To 75℃, Storage : -40 To +75℃

Battery Type:	LFP NCM LTO
Current Range:	-100--100A
Communication Interface:	CAN, RS485
Number Of Strings:	64s
System Voltage Range:	120 - 228 V DC
Startup Mode:	DC Start (optional AC And DC Starter)
Balance Type:	Passive Resistance Equalization
Balanced Current:	100mA ± 10mA(Single Cell 3.4V)
Temperature Sampling:	12 Battery Temperature(4*3)
Temperature Accuracy:	± 2℃
Voltage Accuracy:	Single Cell ±20mV
SOC:	≤5%
Hall Sensor:	50A/100A
Maximum Load:	Steady-state：100A, Transient State：150A/10S（Adjustable）
Operating Temperature:	Charging : －10～75℃, Discharging : -20 To 75℃, Storage : -40 To +75℃

GCE 64S 100A BMS for Solar Energy Storage Systems

GCE 64s 204.8V 100A Battery BMS High Voltage Battery Pack Balance for UPS ESS Golf Carts Electric Forklifts Solar Energy BESS

Product Overview

This integrated BMS supports 30S-75S lithium battery packs with a master-slave all-in-one design. It features efficient, stable, and reliable performance with dimensions of W410×H232×D128mm.

Key Features

Latest product developed by GCE with unique market position
Master & Slave all in one compact design
Supports 30S-75S lithium battery configurations
Relay solution for multiple strings of small capacity batteries (<100Ah)
Cost-effective solution that reduces user expenses
High integration with minimal installation space
Long life cycle (>3000 cycles at 80% DOD)
Environmentally friendly with no heavy metals
Maintenance free with no memory effect
Internal BMS with full protection features

Technical Specifications

Product Name	Integrated BMS (master slave together in one)
Model No.	RBMS07S64S100A
System Voltage Range	120 - 228 V DC
Startup Mode	DC start (optional AC and DC starter)
Number of Battery Strings	30-75S
Balance Type	Passive resistance equalization
Balanced Current	100mA ± 10mA (Single cell 3.4V)
Temperature Sampling	12 Battery temperature (4×3), Accuracy: ±2℃
Voltage Sampling Accuracy	Single cell ±20mV
Communication Protocol	CAN: 1 channel (communication with PCs/UPS) RS485: 1 channel (communication with upper computer/PCS/UPS) Dry Contact
Display Mode	6-digit LED indicator with fault/operation/SOC power indication Optional HMI display
Maximum Load	Steady-state: 100A Transient state: 150A/10S (Adjustable)
Protection Level	2 levels: Level 1: Cut off charge/discharge Level 2: Micro cut-off switch, system power down
Operating Temperature	Charging: -10°C to 75°C Discharging: -20°C to 75°C Storage: -40°C to +75°C

Product Images

BMS Component Size and Interface

Applications

Home storage

Island off-grid energy storage

Micro-grid applications

UPS power supply

Power System 220V DC power supply

Company Profile

Hunan Group Control Energy Technology Co., Ltd. (GCE) is a high-tech company specializing in BMS and lithium battery peripheral equipment R&D. Our intelligent lithium battery management system uses international leading technology to improve battery management efficiency and prolong service life. Our advanced BMS control strategy provides solutions that overcome competitors' difficulties.

Certifications

Packing & Shipping

Frequently Asked Questions

1. Are you a manufacturer or simply a trading company?

We are a manufacturer, and we sincerely welcome you to visit our factory.

2. Can I get some samples?

Yes, a sample order is available for quality checking and market testing.

3. What kind of cells are applicable to this Battery Management System?

LFP, NMC, LTO

4. How about the delivery time?

The lead-time usually takes about 15 to 20 working days accordingly to the specification of your order and quantity.

5. What are your terms of payment?

Advanced T/T is the main payment term, and other payment terms are negotiable. Please contact us, we'll discuss the details.

6. What are your warranty terms?

We offer a 3-year warranty for RBMS, 1-year warranty for PCB.

7. Can you produce BMS with customization requirements?

Yes, based on the order quantity, we can make some small adjustments.

8. How does your factory do regarding quality control?

Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.

9. What Trade Terms are available?

No limitation on the trade terms. We normally do EXW for orders amounts smaller than 20000USD, and FOB for the rest ones. Moreover, we can send BMS via DHL/UPS/FEDEX quickly and easily.

10. Is your BMS easy and convenient to install & test?

This is our 4th generation high voltage BMS. It's an overall BMS solution, meaning you don't need professional technology to install our high-voltage BMS to form a complete battery system.

11. What benefits do customers get?

Our high voltage BMS has complete battery charge and discharge control logic and balance function between batteries. We can also set various parameters according to customer needs to ensure system stability, reliability and efficient performance.

12. How to Contact with you?

You can contact Cara for quotation. WhatsApp & Skype: +8617321496453, Email: cara@hngce.com
