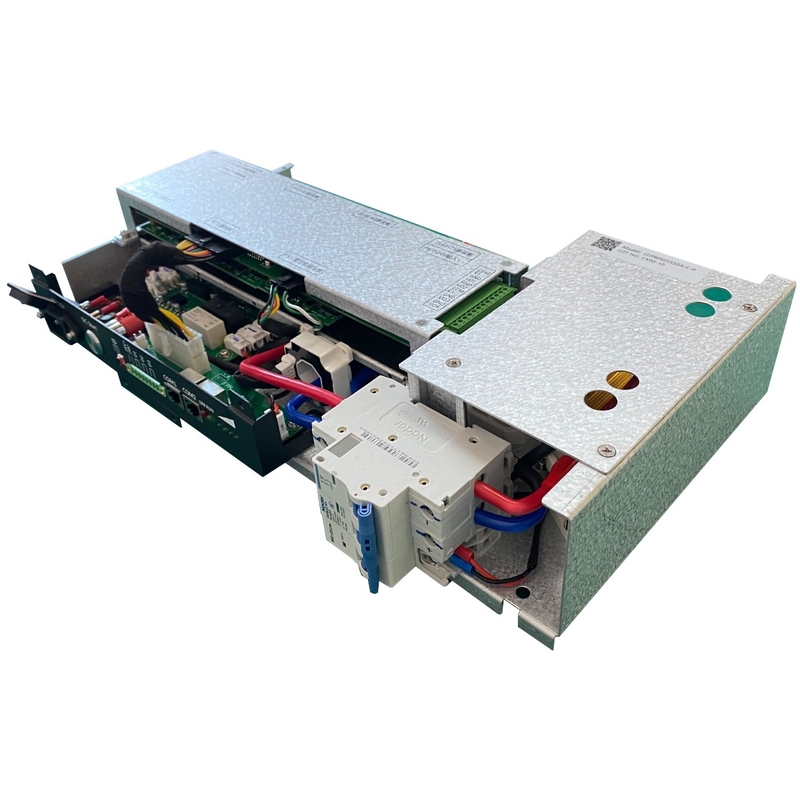

75S 100A Integrated BMS for Lifepo4 NMC LTO Batteries 240V

Name: 75S 100A Integrated BMS for Lifepo4 NMC LTO Batteries 240V
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S75S100A, 5
Price: 596.90 USD
Availability: InStock

Product Details

Place of Origin: Hunan, China

Brand Name: GCE

Model Number: RBMS07S75S100A, 5

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: $548.90-645.70

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                75S 100A integrated BMS for Lifepo4 batteries, 240V integrated BMS with warranty, NMC LTO battery management system


Model Number:	RBMS07S75S100A	Battery Type:	Lifepo4/lithium Battery
System Voltage:	150 - 350 V DC	Battery Strings:	75s (5x15s)
Balanced Current:	100mA ± 10mA	Discharge Temperature:	-20~75℃
Charge Temperature:	-10~75℃	Current Rating:	100A
Communication Protocols:	CAN, RS485, Bluetooth, GPRS, Dry Contact	Dimensions:	W410H232D128cm
Voltage Accuracy:	±20mV Per Cell	Temperature Accuracy:	±2℃
Max Load Current:	150A/10S (transient)	Storage Temperature:	-40 To +75℃
Balance Type:	Passive Resistance Equalization

Model Number:	RBMS07S75S100A
Battery Type:	Lifepo4/lithium Battery
System Voltage:	150 - 350 V DC
Battery Strings:	75s (5x15s)
Balanced Current:	100mA ± 10mA
Discharge Temperature:	-20~75℃
Charge Temperature:	-10~75℃
Current Rating:	100A
Communication Protocols:	CAN, RS485, Bluetooth, GPRS, Dry Contact
Dimensions:	W410H232D128cm
Voltage Accuracy:	±20mV Per Cell
Temperature Accuracy:	±2℃
Max Load Current:	150A/10S (transient)
Storage Temperature:	-40 To +75℃
Balance Type:	Passive Resistance Equalization

75S 100A Integrated BMS for Lifepo4 NMC LTO Batteries 240V

Ready to Ship Integrated 75S 240V 100A High-Voltage BMS Battery Management System

Key Specifications

Product Name	Integrated BMS (master slave together in one)
Model No.	RBMS07S75S100A
System Voltage Range	120 - 228 V DC
Number of Battery Strings	75 S (5 x 15 S)
Communication Protocol	CAN, RS485, Bluetooth, GPRS, Dry Contact
Maximum Load	Steady-state: 100A Transient state: 150A/10S (Adjustable)
Operating Temperature	Charging: -10°C to 75°C Discharging: -20°C to 75°C Storage: -40°C to +75°C

Product Features

High integration with minimal installation space requirements
Long life cycle (>3000 times at 80% DOD)
Environmentally friendly with no heavy metals
Maintenance free with no memory effect
Internal BMS with full protection including high voltage protection
Master and Slave all in one design
Supports 30S-75S lithium battery packs

Technical Details

Balance Type: Passive resistance equalization
Balanced Current: 100mA ± 10mA (Single cell 3.4V)
Temperature Sampling: 12 Battery temperature (4*3) with ±2℃ accuracy
Voltage Sampling Accuracy: Single cell ±20mV
SOC: ≤5%
Display Mode: 6-digit LED indicator with fault/operation/SOC indication

Applications

About GCE

Hunan Group Control Energy Technology Co., Ltd. (GCE) is a high-tech company specializing in BMS and lithium battery peripheral equipment research and development. Our high-performance intelligent lithium battery management system uses international leading technology to improve battery management efficiency and extend lithium battery service life.
