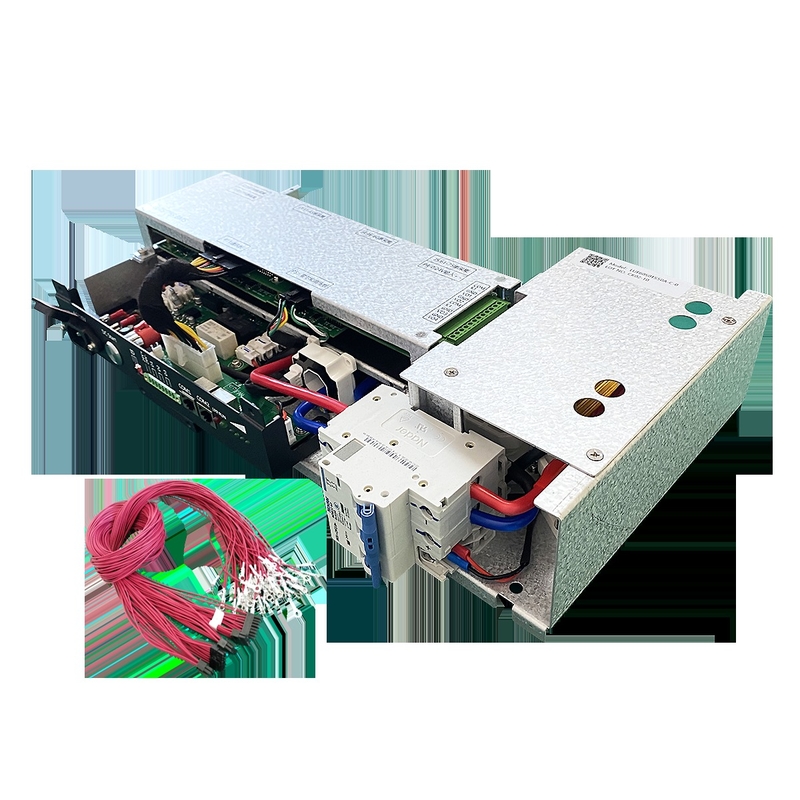

GCE 30S 50A Integrated BMS for 96V Lithium Battery Packs

Name: GCE 30S 50A Integrated BMS for 96V Lithium Battery Packs
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S30S50A, 4
Price: 597.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan, China

Brand Name: GCE

Model Number: RBMS07S30S50A, 4

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: $550-645.70

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                96V lithium battery BMS, integrated BMS 50A, GCE 30S battery management system


Model:	RBMS07S30S50A	Battery Type:	Lifepo4/lithium Battery
System Voltage:	96-192V DC	Battery Strings:	60 S(4 X 15 S) Revise To 30S
Balance Current:	100mA ± 10mA (single Cell 3.40V)	Discharge Temperature:	-20~75℃
Charge Temperature:	-10~75℃	Temperature Sampling:	12 Battery Temperature(4*3)
Sampling Accuracy:	± 2℃	Voltage Accuracy:	Single Cell ±20mV
Hall Sensor:	50A/100A	Max Load:	Steady-state: 50A/100A, Transient State: 65A/150A/10S
Communication Protocol:	CAN, RS485, Bluetooth, GPRS, Dry Contact	Dimensions:	W410H232D128cm
Storage Temperature:	-40 To +75℃

Model:	RBMS07S30S50A
Battery Type:	Lifepo4/lithium Battery
System Voltage:	96-192V DC
Battery Strings:	60 S(4 X 15 S) Revise To 30S
Balance Current:	100mA ± 10mA (single Cell 3.40V)
Discharge Temperature:	-20~75℃
Charge Temperature:	-10~75℃
Temperature Sampling:	12 Battery Temperature(4*3)
Sampling Accuracy:	± 2℃
Voltage Accuracy:	Single Cell ±20mV
Hall Sensor:	50A/100A
Max Load:	Steady-state: 50A/100A, Transient State: 65A/150A/10S
Communication Protocol:	CAN, RS485, Bluetooth, GPRS, Dry Contact
Dimensions:	W410H232D128cm
Storage Temperature:	-40 To +75℃

GCE 30S 50A Integrated BMS for 96V Lithium Battery Packs

GCE Integrated 96V 50A 60S Lithium Battery UPS System

Key Features

Master & Slave all-in-one design
High efficiency and reliability
Compact size: 410×232×128mm
Supports 30S-75S lithium battery packs
Reduced cost solution for multiple strings of small capacity batteries

Technical Specifications

Product Name	Integrated BMS (master slave together in one)
Model No.	RBMS07S60S50A
System Voltage Range	96-192V DC
Startup Mode	DC start (optional AC and DC starter)
Number of Battery Strings	30S (4 × 15S)
Balance Type	Passive resistance equalization
Balanced Current	100mA ± 10mA (Single cell 3.4V)
Temperature Sampling	12 Battery temperature (4×3), ±2℃ accuracy
Voltage Sampling Accuracy	Single cell ±20mV
Communication Protocol	CAN, RS485, Bluetooth, GPRS, Dry Contact
Display Mode	6-digit LED indicator with fault/operation/SOC indication
Hall Sensor Specifications	50A/100A
Operating Temperature	Charging: -10 to 75℃, Discharging: -20 to 75℃, Storage: -40 to +75℃

Product Advantages

High integration with minimal installation space requirements
Long life cycle (>3000 times at 80% DOD)
Environmentally friendly with no heavy metals
Maintenance free with no memory effect
Internal BMS with full protection for higher reliability
Master and Slave all-in-one design

About GCE

Hunan Group Control Energy Technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. Our high-performance intelligent lithium battery management system adopts international leading technology, improving battery management efficiency and prolonging lithium battery service life.
