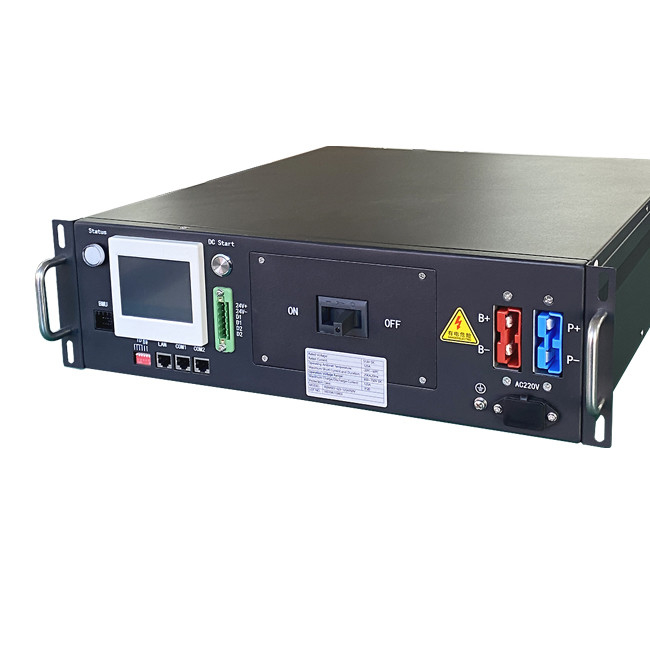

3U Solar BMS , Ems Energy Management System 480V DC 63A

Product Details

Place of Origin: China

Brand Name: GCE

Certification: CE/RoHS/SGS/MSDS

Model Number: 3U

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: negotiable

Packaging Details: Corrugated Carton

Delivery Time: 15-20 days

Supply Ability: 1000 sets/month

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    3U Solar BMS, 63A Solar BMS, Ems Energy Management System 480V


Model:	RBMS07S2-3-63A480V	BMS Type:	3U BMS
Application:	BESS UPS EV	Battery Cell:	Grade 3.2V LifePO4 Cell
Communication Protocol:	Rs485, CAN, LAN	Rated Current Range:	63A~125A
Voltage Range:	120V-480V	Protecting Method:	MCCB+Contactor

Model:	RBMS07S2-3-63A480V
BMS Type:	3U BMS
Application:	BESS UPS EV
Battery Cell:	Grade 3.2V LifePO4 Cell
Communication Protocol:	Rs485, CAN, LAN
Rated Current Range:	63A~125A
Voltage Range:	120V-480V
Protecting Method:	MCCB+Contactor

3U Solar BMS , Ems Energy Management System 480V DC 63A

GCE 3U BMS Relay Solution 480V DC 63A 3 Level Structure Ems Energy Management System

3U Solar BMS , Ems Energy Management System 480V DC 63A 0

Model Number: RBMS07S2-3-63A480V

Brand Name:GCE
Model Number:3U BMS

Battery cell: Grade 3.2V LifePO4 Cell

Rack configuration:standalone or Parallel
Battery type:LFP, NCM, LTO...
Voltage: 480V
Current: 63A
Features:DC&AC dual power supply
Weight:21kg

Application:Solar Energy Storage Systems, Electric Forklift

BMS Solutions:

1set Master BMS

10sets 15S Slave BMU

10sets 15S Wire Harness

3U standard 19inch case

Efficient, stable and reliable

Size: 440*178*500mm

3U Solar BMS , Ems Energy Management System 480V DC 63A 1

12S-24S BMU(Slave)

12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power

supply,consumption less 20mA, CAN2.0 B communication

Wire harness-Signal acquisition wire

18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor wire: standard length is 600mm,900mm,1200mm

Fan wire: 600mm

Wire harness-communication wire

Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance

Specification

Product Name	BMS
Model no.	RBMS07S2-3-63A480V
protecting method	MCCB+Contactor
Rated Current range	-125A~125A
Voltage Range	120V-680V
Current Sampling Accuracy	1.0%FSR
Communication interface with BMU	RS485/CAN
Communication interface with BMU	CAN
Communication interface with BMU	RS485/CAN
Communication with monitoring software/EMS	Ethernet
Support IAP upgrade	Yes
Support HMI display and parameter	Yes(Optional)
Insulation detection	Yes(Optional)
High voltage power module	Support DC start (optional)
Dry contact output (normally open)	Up to 3
Maximum qty of BMUs	13
Power	24VDC(18~28V)
Power consumption	≤20W
Size(WHD)mm	3U (482132500mm)
Way out	Front
Mid-line	Not support
Tap center	Not support
Net weight	21kg

3U Solar BMS , Ems Energy Management System 480V DC 63A 5

3U Solar BMS , Ems Energy Management System 480V DC 63A 6

3U Solar BMS , Ems Energy Management System 480V DC 63A 7

Our Advantages

Marketing Campaign

Our comapny

Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.
