Adopts distributed architecture

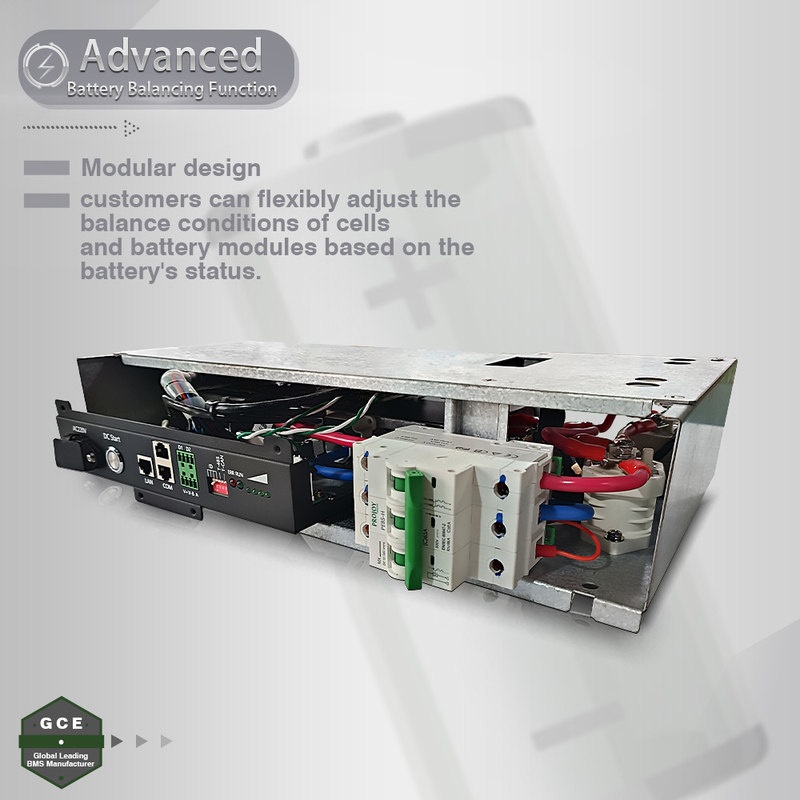

Modular design concept
High configurability
Easy assembly, debugging, and maintenance
Suitable for various battery energy storage systems with dc voltage below 1000v.
|
Product Name
|
Integrated BMS(master slave together in one)
|
|
|
Model no.
|

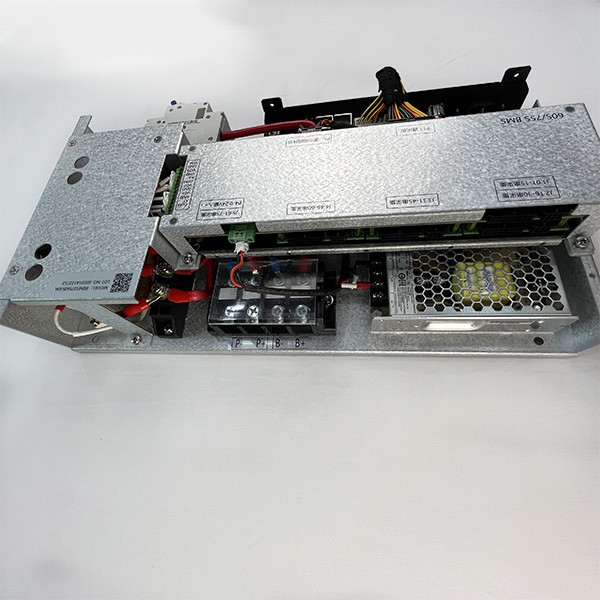

RBMS07S45S100A
|
|
|
System voltage range
|
0 - 144V DC
|
|
|
Startup mode
|
DC start (optional AC and DC starter)
|
|
|
Number of battery strings
|
45 S(3x 15 S)
|
|
|
Balance
|
Balance type
|
Passive resistance equalization
|
|
|
Balanced current
|
100mA ± 10mA(Single cell 3.4V )
|
|
Temperature Sampling
|
Numbers
|
12 Battery temperature(4*3)
|
|
|
Sampling accuracy
|
± 2℃
|
|
Voltage Sampling
|
Sampling accuracy
|
Single cell ±20mV
|
|
SOC
|
≤5%
|
|
|
Communication mode
|
CAN: 1 channel (communication with PCs / UPS)
RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional, |
|
|
Display mode
|
6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication
HMI display: optional |
|
|
Hall sensor specifications
|
50A/100A
|
|
|
Maximum load of power components
|
Steady-state:100A
transient state:150A/10S( Adjustable) |
|
|
Alarm level
|
1 Level
|
|
|
Protection level
|
2 two levels
Level 1 cut off charge / discharge Level 2 micro cut-off switch, system power down |
|
|
Operating Temperature
|
Charging : －10～75℃
Discharging : -20 to 75℃ Storage : -40 to +75℃ |
|
